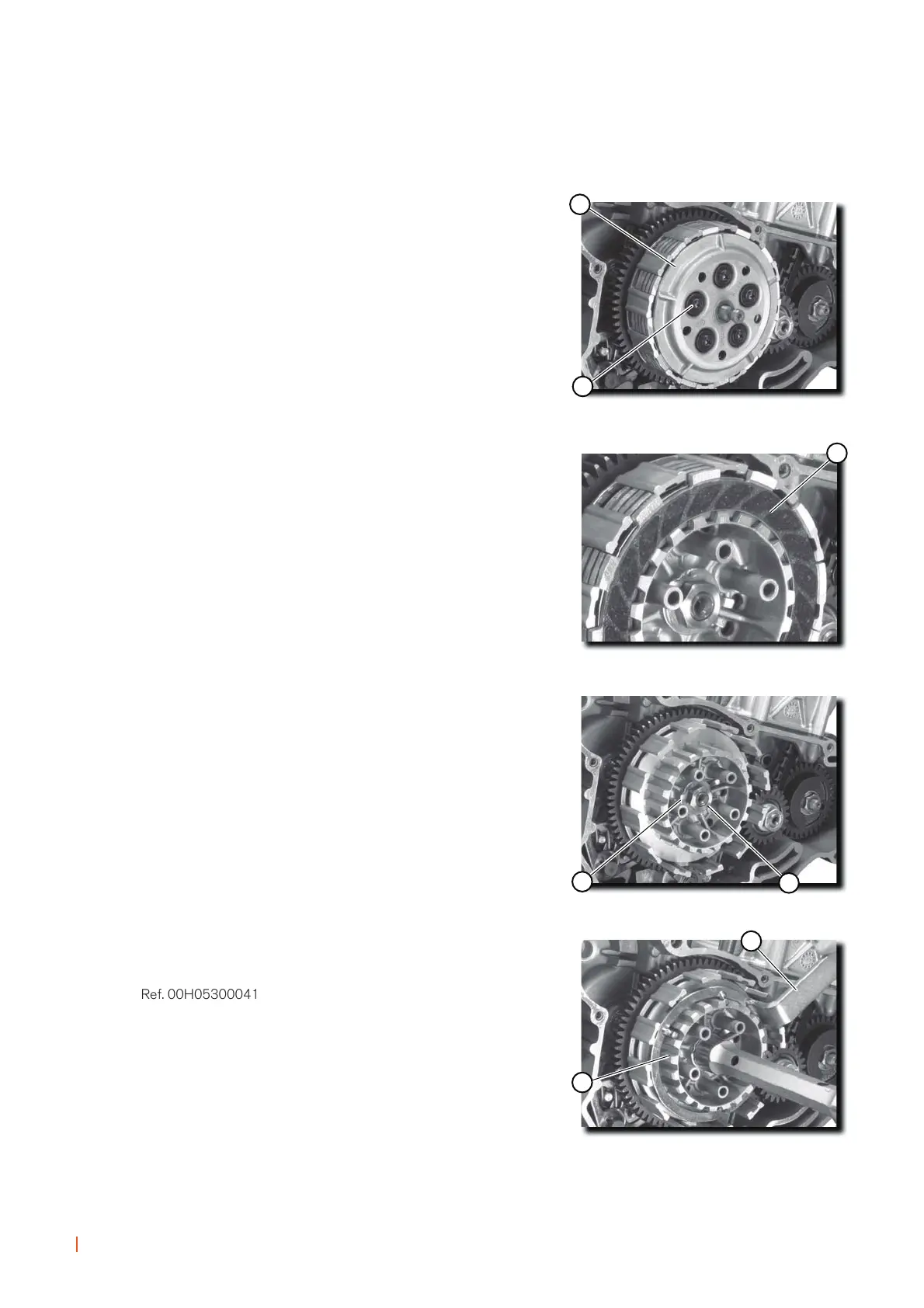

Extract:
- The 5 bolts (10) with washer and spring from the clutch
closing cover.
- The clutch closing cover (11).
Extract:
- The clutch disks and separators (12).
Abrir:
- The seal tab (13).
Extract:
- The nut(15).
- The seal (13).
Extract:
- Use the clutch housing extraction tool (15) to remove it.
Clutch housing extraction tool:
Ref. 00H05300041
Extract:
- The clutch bell housing (16).
14
13
15
16
10
11
12
42
DISMANTLING THE ENGINE
