C LUTCH

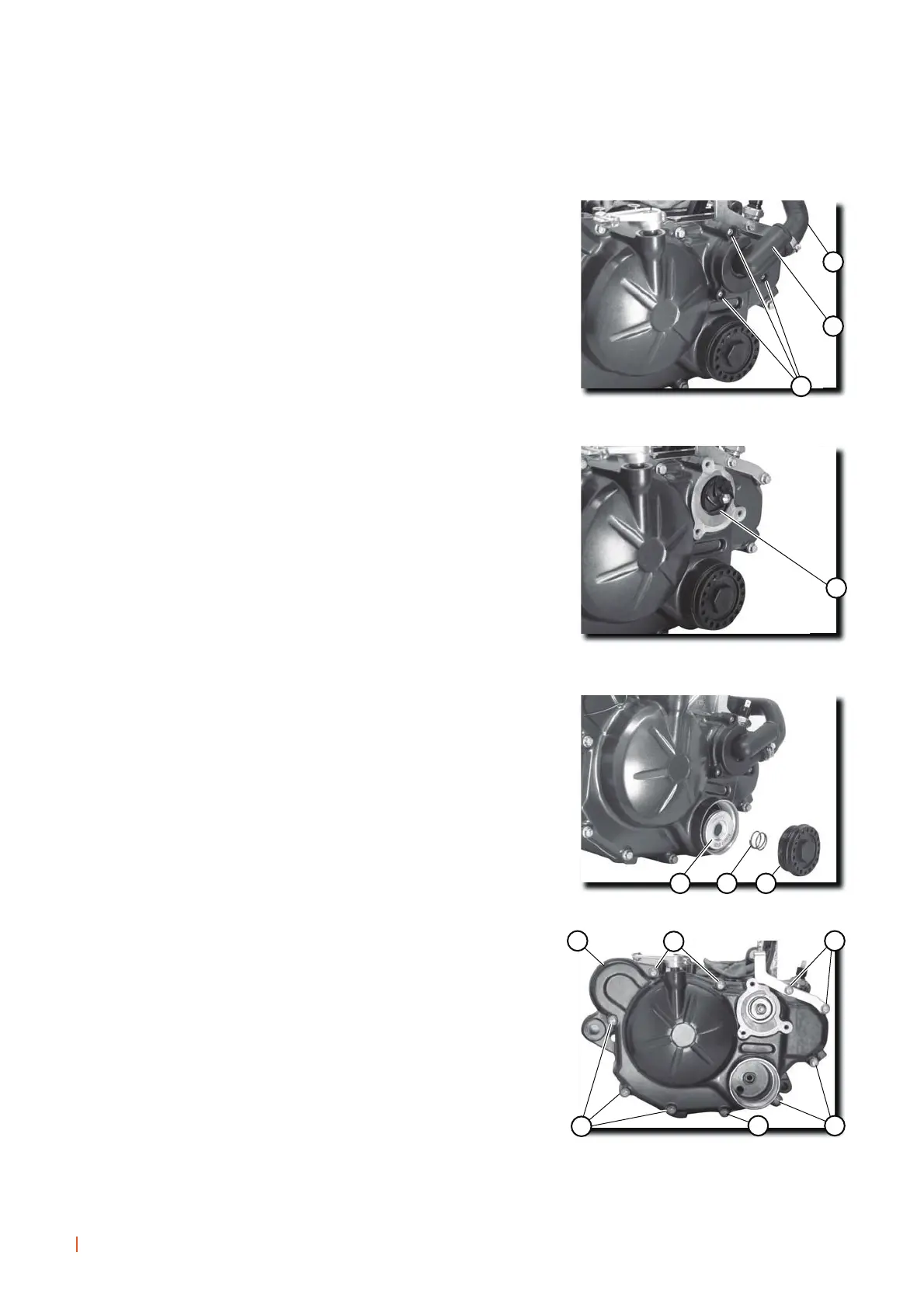

Extract:
- The coolant pipe (1).
- The 3 bolts (2) from the water pump cover (3).
Extract:
- The water pump turbine (4).
N.B.:
PLACE A CONTAINER UNDER THE ENGINE AND DRAIN
THE OIL FROM THE CRANKCASE.
Extract:
- The engine oil plug (5).
- The spring (6).
- The oil filter (7).
Extract:
- The 10 bolts (8) from the clutch cover.
- The clutch cover (9).
- The cover gasket. (Renew when refitting).
1
3
2
4
8
8
9
8 8
8
7 6 5
41
DISMANTLING THE ENGINE
WORKSHOP MANUAL
