um DSR EX 125 - Coolant Circuit; Coolant System Components and Specifications

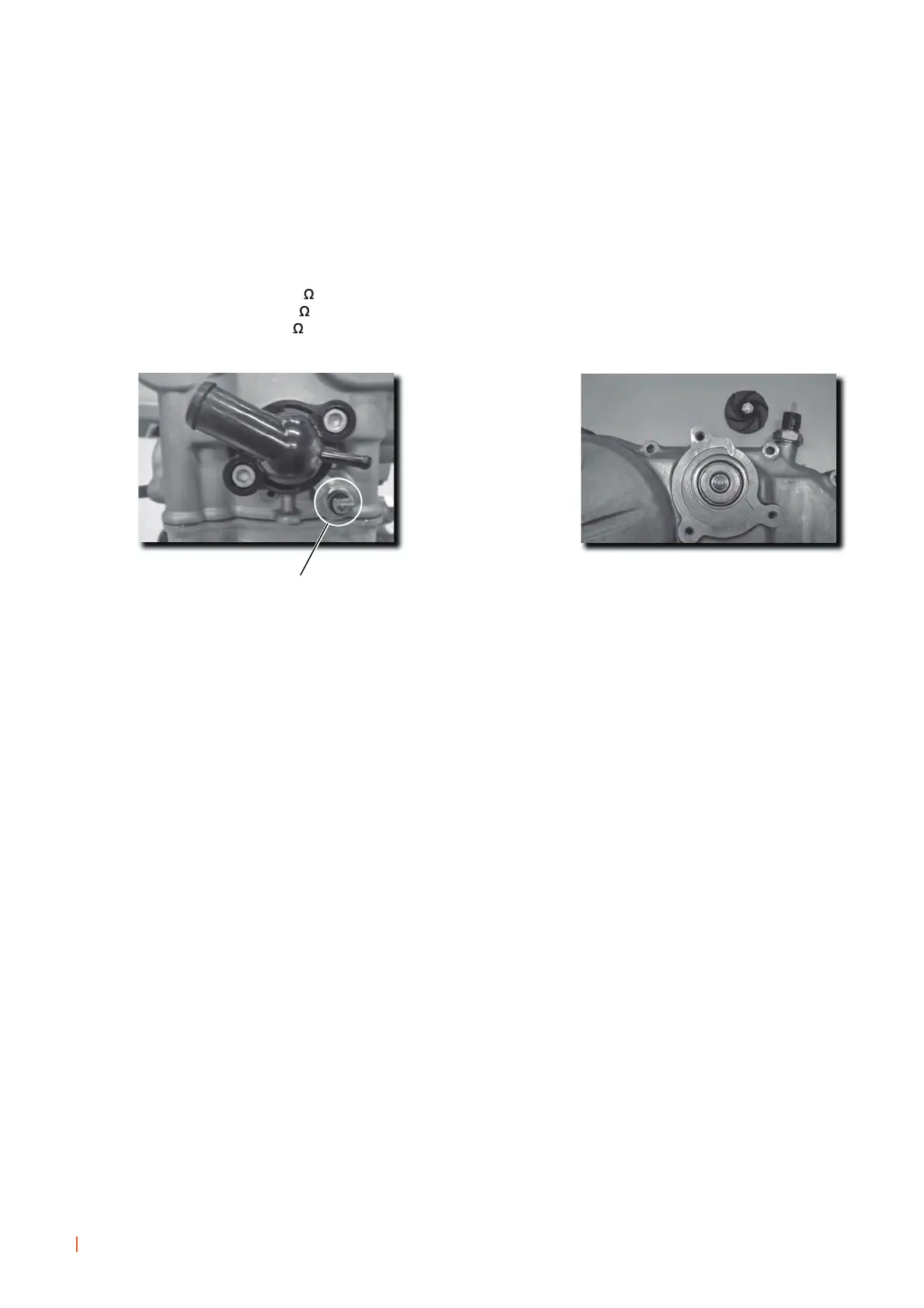

NTC
- There is a small by-pass to heat up the carburettor.
- The pump oil seal is the metal type.
- The thermostat opens at between 80ºC and 85ºC.
- The radiator is fitted with an electric fan.
- Resistance value of the temperature sensor (NTC):
- At 60ºC = 600-470
- At 90ºC = 215-175
- At 120ºC = 93-73
23
COOLANT CIRCUIT
WORKSHOP MANUAL
