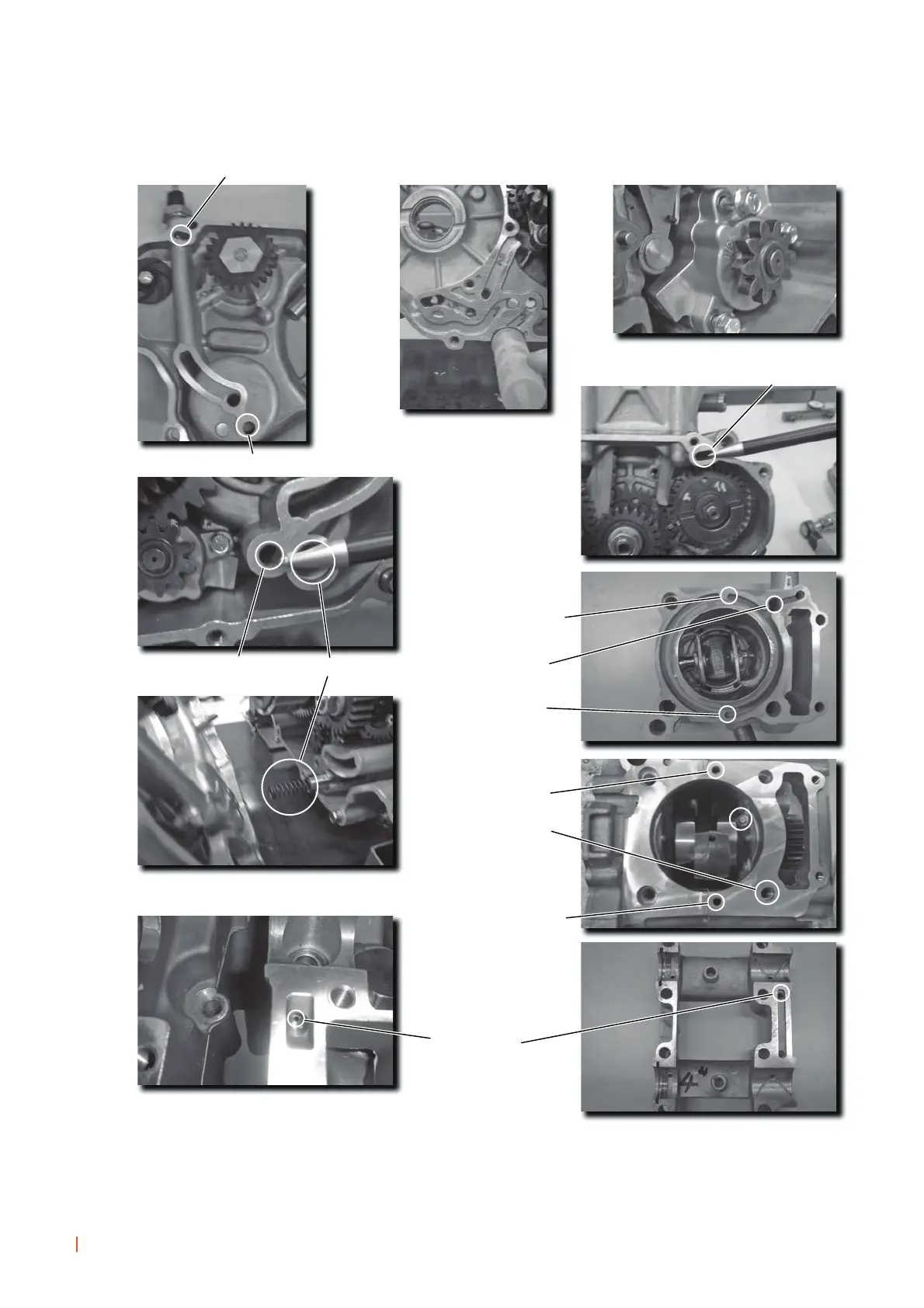

Oil to lter
By-pass
To bottom of cylinder
Oil input to lter
To bottom of cylinder
Oil input
Rises for
camshafts
Oil to supports
Rises for
camshafts
Oil to supports
Rises for
camshafts
Oil input
22
LUBRICATION CIRCUIT
WORKSHOP MANUAL
