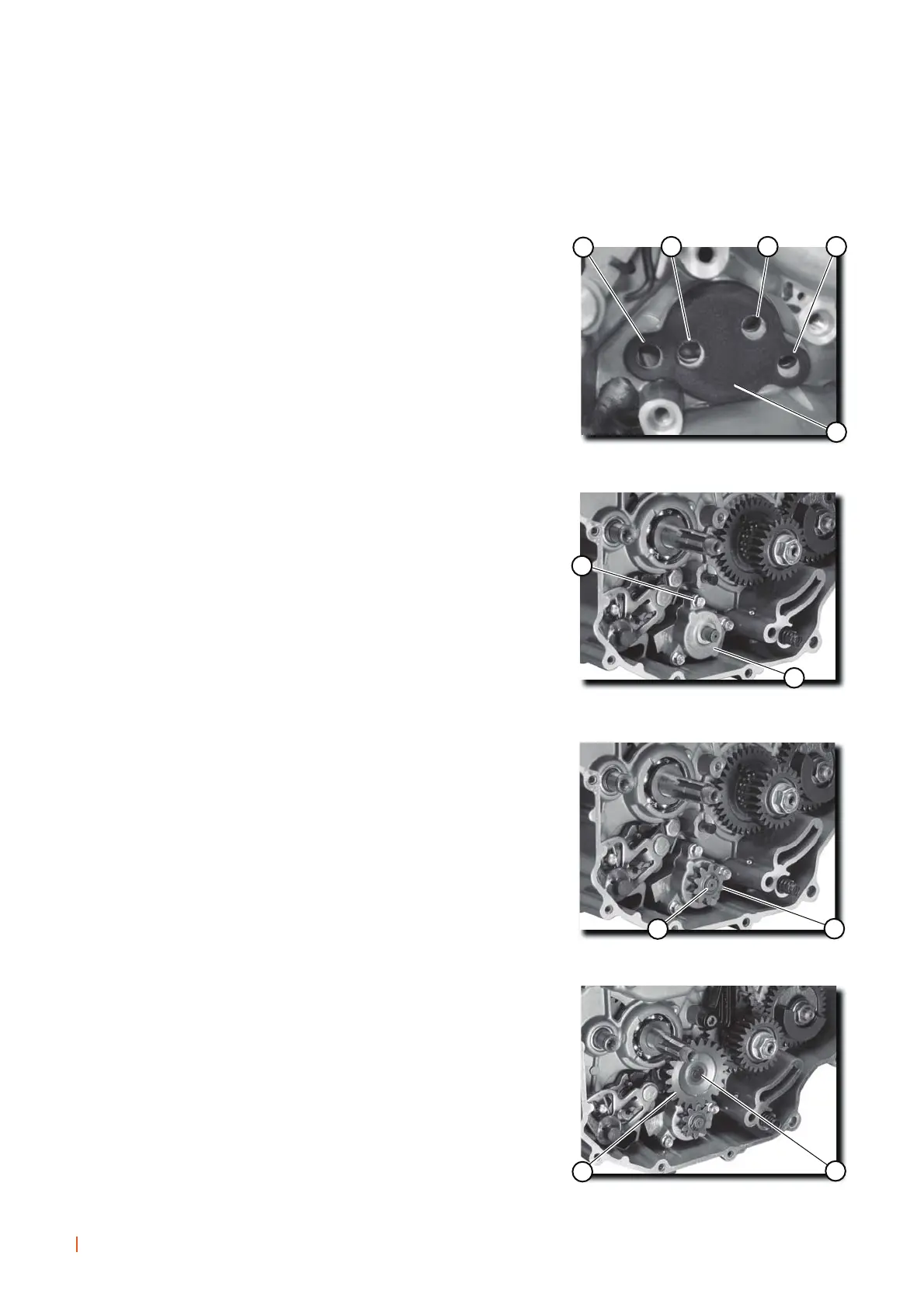

O IL PUMP
- (1) Crankshaft breather.
- (2) To the gearbox.
- (3) To the gearbox.
- (4) To the filter, lubrication technical part.
N.B.:
THE OIL PUMP IS A DOUBLE ROTOR PUMP WHICH PUMPS
SEPARATELY.
One 13mm thick rotor, for suction. One 8.5 mm thick ro-
tor, for pumping.
Fit:
- The oil pump gear (5).
Fit:
- The oil pump (6).
- The 3 oil pump bolts (7).
The oil pump bolts:
0,5-0,6 kgf.m (5-6 N.m)
Fit:
- The oil pump gear (8).
- The oil pump gear clip (9).
Fit:
- The intermediate starter gear (10).
- The intermediate starter gear clip and washer (11).
N.B.
See chapter (identification of sets).
8
9
6
7
1 4
3
2
5
11
10
68
ASSEMBLING THE ENGINE
AND ADJUSTMENTS
WORKSHOP MANUAL
