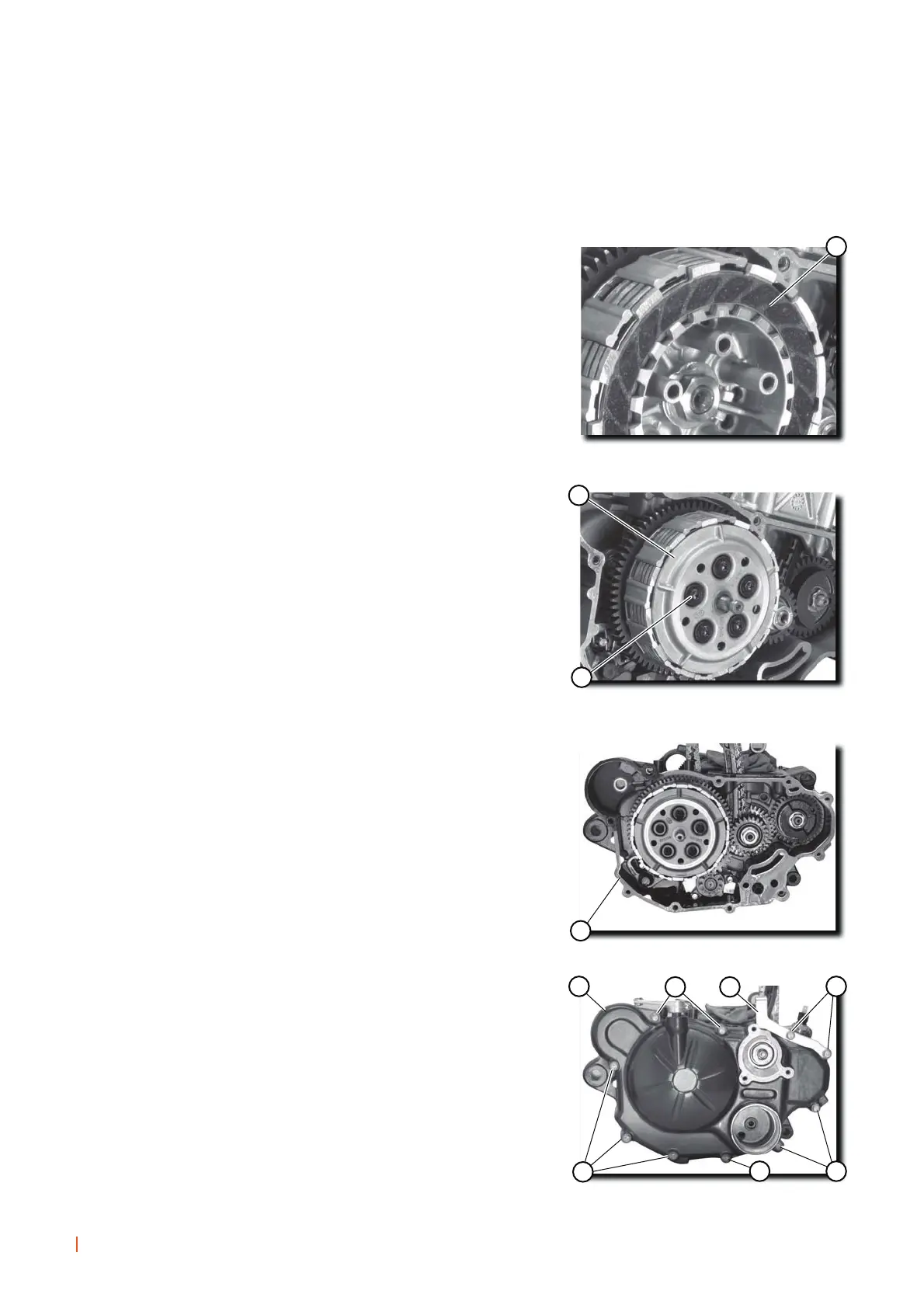

Fit:
- The clutch disks and separators (8).
N.B.:
- FIT THE DISKS (BLADES TO THE RIGHT) AND THE SEPARA-
TORS (ROUNDED PROFILE INWARDS) ALTERNATELY ONTO
THE CLUTCH HUB, BEGINNING WITH A FRICTION DISK
AND ENDING WITH A FRICTION DISK.
- LUBRICATE ALL THE DISKS AND SEPARATORS WITH ENGI-
NE OIL BEFORE FITTING.
Fit:
- The clutch closing cover (9).
Fit:
- The 5 clutch closing cover bolts (10) with washer and
spring.
The clutch closing cover bolts:
0,35-0,45 kgf.m (3,5-4,5 N.m)
Fit:
- The cover gasket (11) (new gasket).
Fit:
- The clutch cover (12).
- The 10 clutch cover bolts (13).
- The clutch cable support (14).
The clutch cover bolts:
1,1-1,3 kgf.m (11-13 N.m)
N.B.:
TO HELP THE COVER TO FIT, THE WATER PUMP SHOULD BE
TURNED UNTIL THE 2 GEARS COINCIDE.
IMPORTANT
TIGHTEN THE BOLTS ON THE BLOCK IN SUCCESSION
CROSSWISE, GOING FROM ONE TO ANOTHER TWO OR
THREE TIMES.
11
10
9
8
13
13
12
13 13
13
14
71
ASSEMBLING THE ENGINE
AND ADJUSTMENTS
WORKSHOP MANUAL
