UTD2000 Series User Manual
36

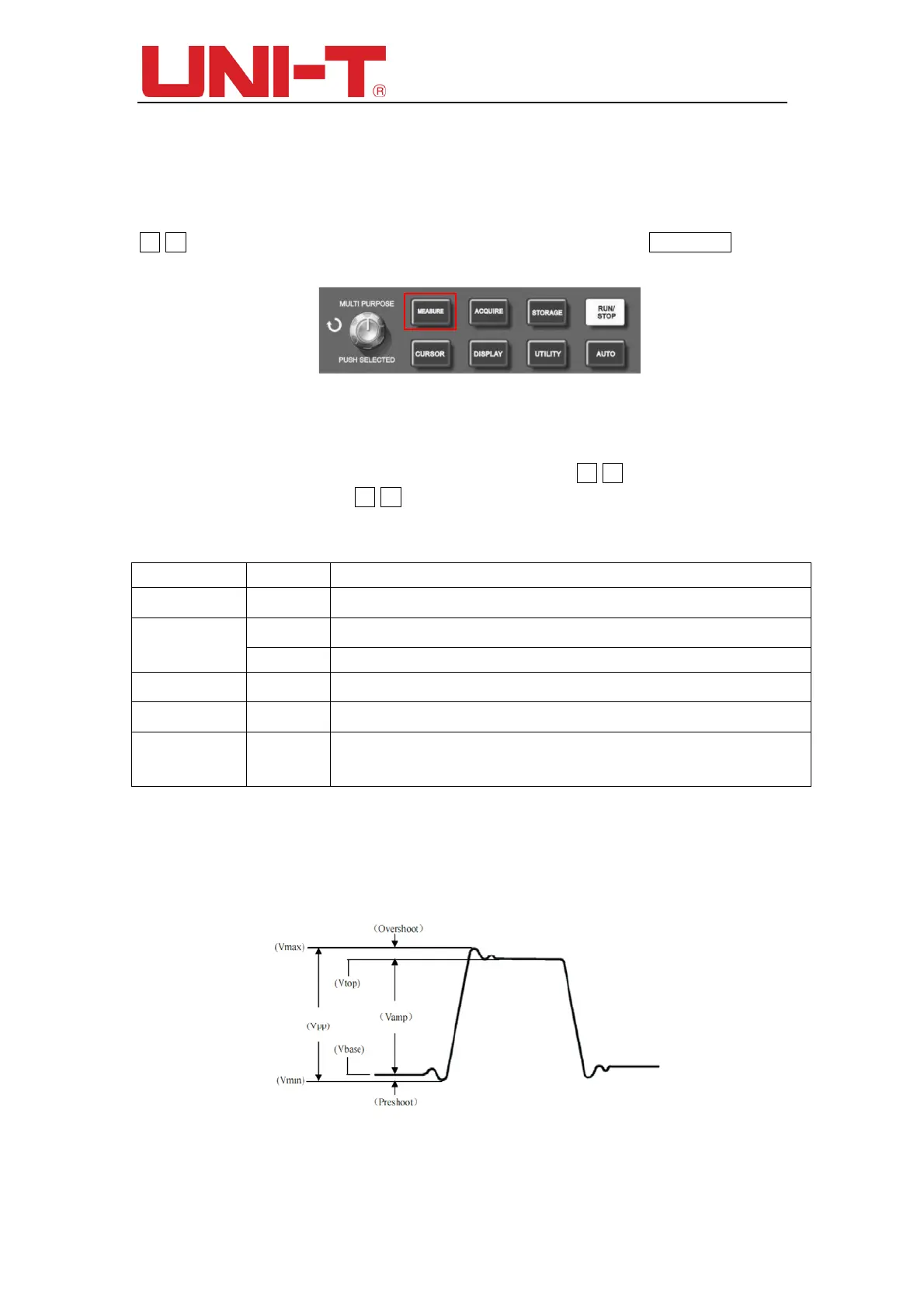

Chapter VII Measurement Parameters
UTD2000 series DSO support up to 28 of the automatic waveform measurement
parameters. You can view at most 5 the measurement parameters at the same time on
F1-F5 function menu. To see measurement parameters, please press MEASURE on the
control panel.
Figure 7-1 Function Key of Auto measurement parameter
7.1 Measurement Menu
For each of the measurement parameter located on the F1-F5 on the function
measurement, you can press F1-F5 to set the view of the parameter (Measurement sub
menu)
Table 7-1 Measurement menu
Function Menu Setting Description
Back Return to measurementparameterfunction menu
Source
CH1 Select the CH1as source
CH2 Select the CH2 as source
Volt Select different Voltage parameters
Time Select different Time parameters
Parameters
Press to display all the measurement parameter of the input source. Or, press to
turn of parameter display.
7.2 Voltage Parameter
Below are the automatically measured voltage parameter for the UTD2000 series
DSO and its definitions:
Figure 7-2 Voltage Parameter Diagram
Vpp: Peak-to-peak voltage
