UTD2000 Series User Manual

Chapter IX Storage and Load System

User can enter the storage and load menu by pressing the STORAGE button.

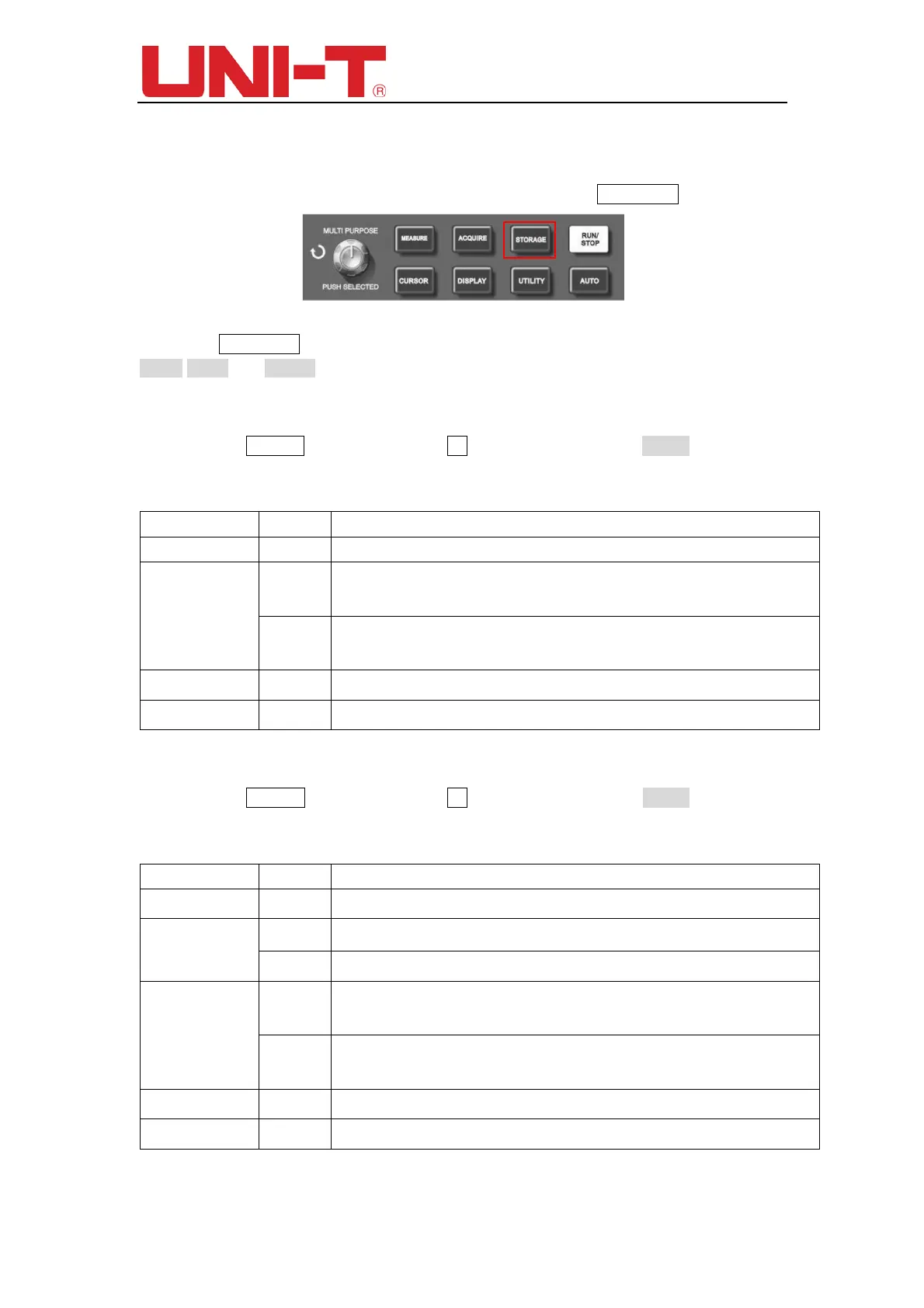

Figure 9-1 Function Key of STORAGE

Press STORAGE to go to the type menu. There are three types to choose from:

Setup,Wave and Bitmap

9.1 Setup storage and load

Press the Storage button, then Press F1 to choose storege type Setup , and you will

see the following menu.

Table 9-1 Setup storage menu

Function Menu Setting Description

Type Setup Select to store a DSO setting

Dest

1~20

Maximum 20 front panel setups can be storedwith themultifunction control knobon the

front panel

1~200

Set the waveform storage position on the USB device (This function can be enabled

only when theUSB device is plugged in and the disk menu is set to“USB”)

Save —— Store waveform

Load

Recall the setting

9.2 Waveform storage and load

Press the Storage button, then Press F1 to choose storege type Wave , and you will

see the following menu.

Table 9-2 Waveform storage menu (Page 1)

Function Menu Setting Description

Type Wave Select to store a acquired waveform

Source

CH1 Select waveforms from CH1 channel to be saved

CH2 Select waveforms from CH2 channel to be saved
