UTD2000 Series User Manual
52

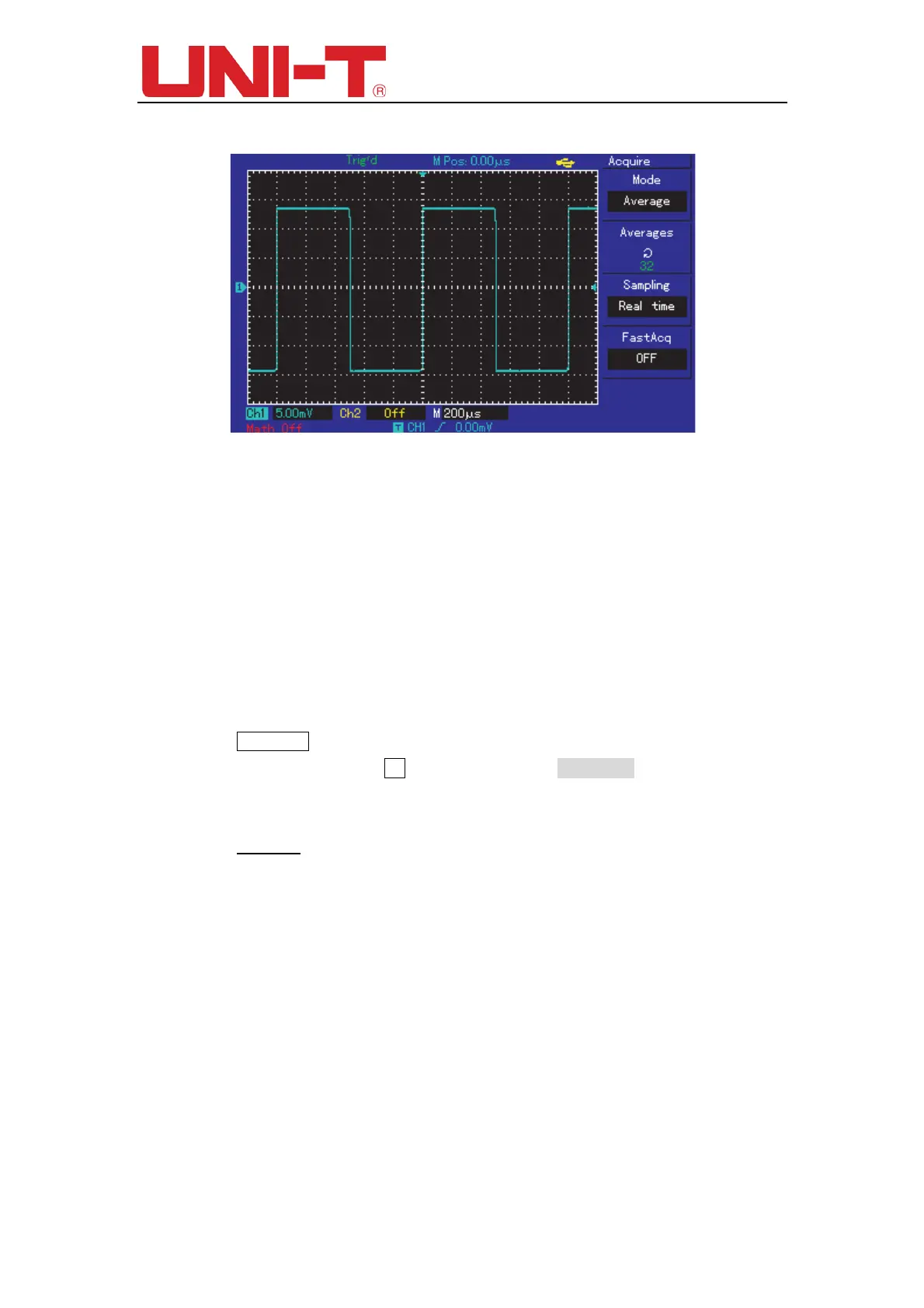

Figure 12-5 Signal noise suppressed
② You can also lower the waveform brightness to reduce display
noise
Caution :In the average sampling mode the waveform display will update at a
slower rate. This is normal.
Example 5: Using the cursors for measurement
Your oscilloscope can measure 28 waveform parameters automatically. All auto
parameters can be measured with the cursors.
By using the cursors, you can quickly measure the time and voltage of a waveform.
Measuring one step voltage of the step signal
To measure one step voltage of the step signal, follow the steps below:
1. Press CURSOR to display the cursor measurement menu.
2. Press menu operation key F1 to set cursor type to VOLTAGE.
3. Turn the multifunction control knob to set cursor 1 at one step voltage of the step
signal.
4. Press SELECT to select the cursor, then turn the multifunction control knob again
to set cursor 2 at another step voltage of the step signal.
The cursor menu will automatically display the V value, i.e. the voltage difference of
that point. See the figure below.
Note : When using the cursors to measure time, follow step 2 only and set the
cursor type to time.
