United Parachute Technologies Vector 3 - Assembly

VECTOR3MANUAL
MAN‐004REV7.2737/20/2017


ASSEMBLY

BeforeassemblingtheBooth3‐Ringreleasesystem,makesuretherisersaren’ttwistedorreversed.LaytheVector3
facedown,asyouwouldtopackit.

1.Threadeachcutawaycableintoitshousingandfastenthehandletotheharness.Thehandleshouldbepositioned
asclose
totheendsofthehousingsaspossiblesothatlittleornocableisexposed.


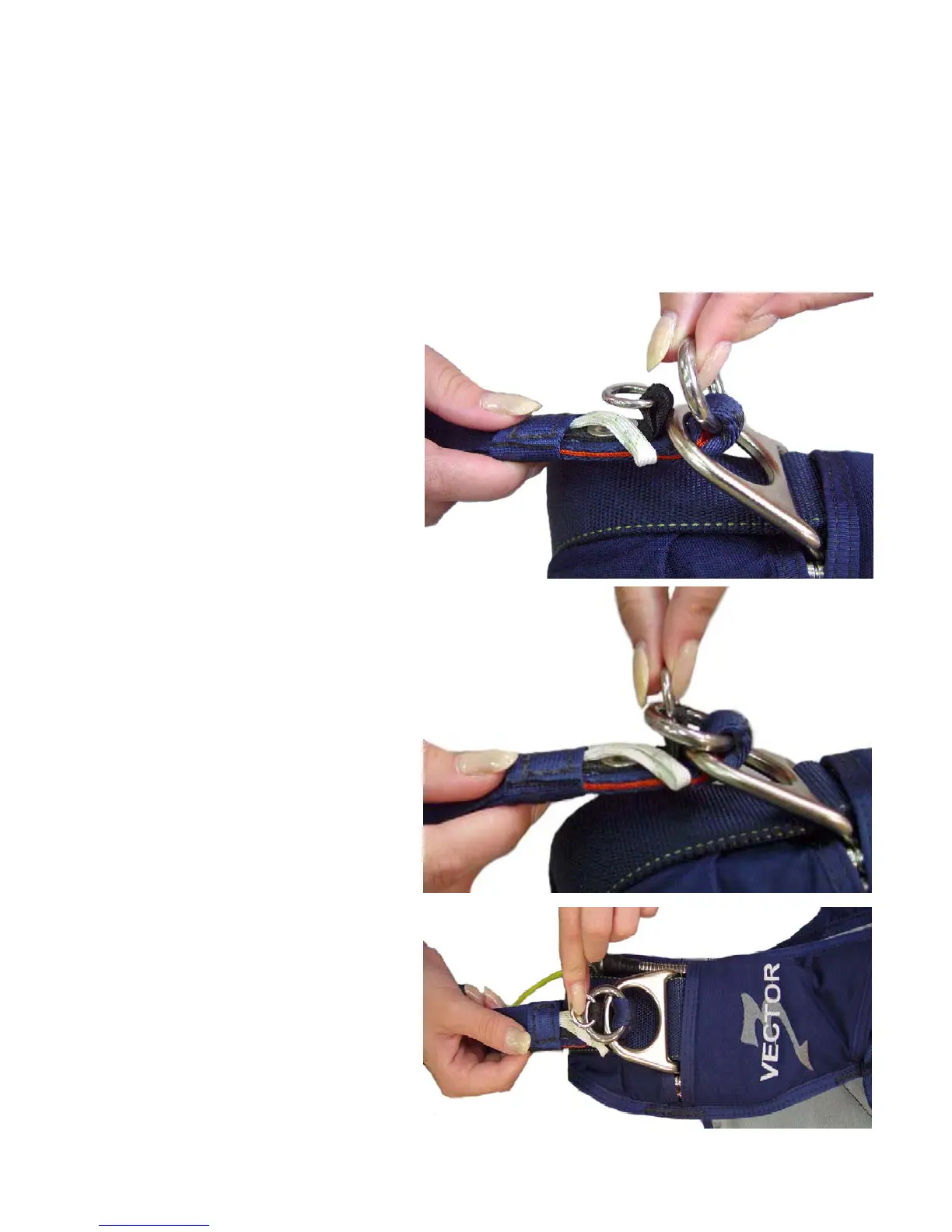

2.Withtheringsoftheriserfacingtowardthe
floor,passtheringontheendoftheriser
(middlering)throughthelargeharnessringfrom
above.Folditbacktowardthecanopy
andrisers.








3.Threadthesmallestringthroughthemiddle
ringinthesameway,butmakesureitdoesn’t
passthroughthelargeringaswell.

A)RigswithoutanRSL:eachyellowcableshould
extendabout6inches(15.2cm)pastthe
housingending.

B)
RigswithanRSL:theright(RSL)sideyellow
cableshouldextend7½inches(19.1cm)past
thehousingending.Theleft(nonRSL)side
shouldextend5½inches(14cm)pastthe
housingending.











