Uponor Smatrix Wave User Manual

Components of the thermostat:

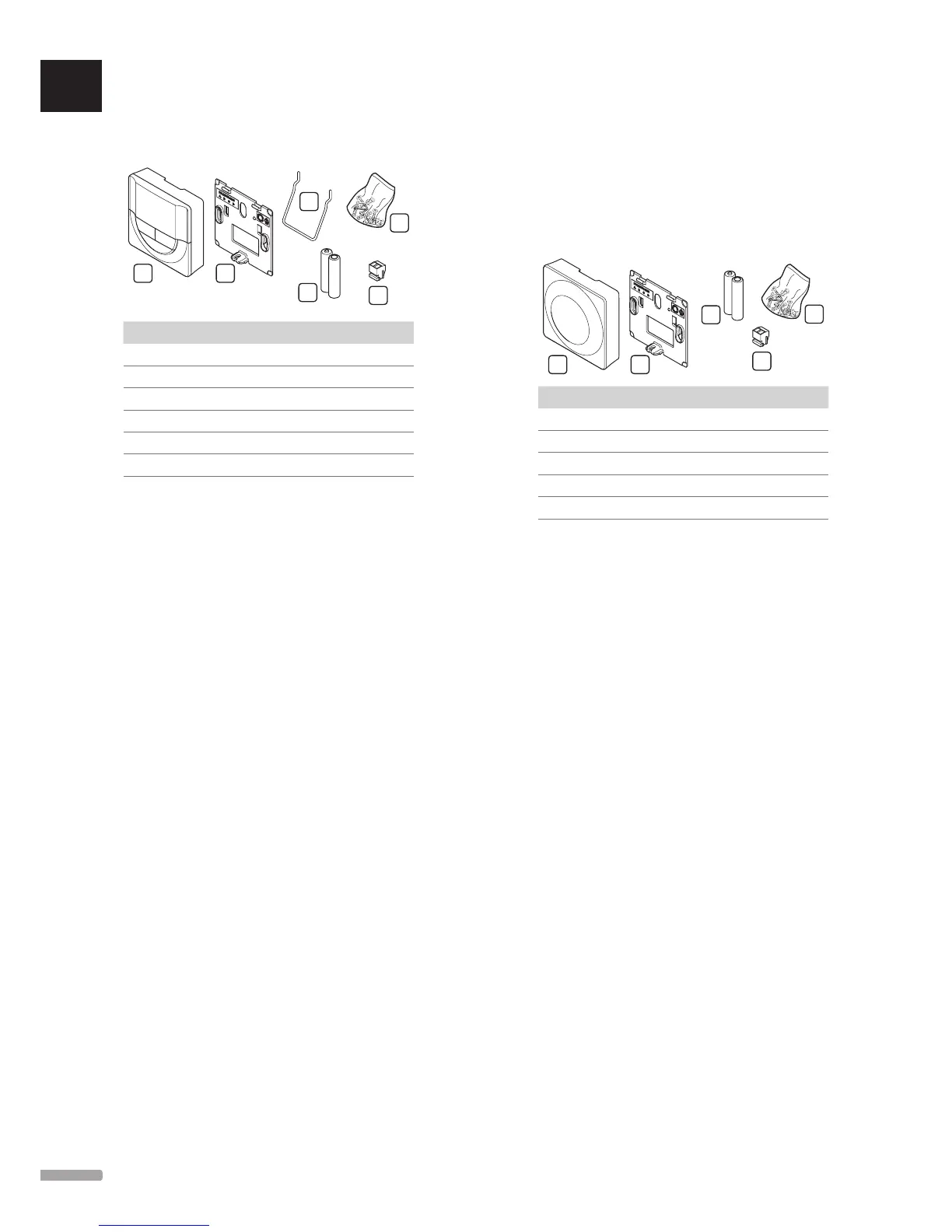

The illustration below shows the thermostat and its
components.
A
E
C
B
D
F
Item Description
A Uponor Smatrix Wave Thermostat Prog.+RH T-168
B Wall bracket
C Stand
D Batteries (AAA 1.5 V)
E Mounting material
F Connection terminal
Uponor Smatrix Wave Thermostat Public T-163
The thermostat is designed for public locations which
means that the dial is hidden. It must be removed from
the wall to set the temperature. When it is removed, an
alarm is triggered.
The thermostat can be registered as a system device,
enabling extra functions. When functioning as a system
device, the internal room sensor is disabled.
Main characteristics:
• Adjust setpoint temperature with a potentiometer
on the back of the thermostat.
• Setpoint range is 5 – 35 °C (maximum and
minimum setting may be limited by other system
settings).
• Alarm is indicated on the controller if removed from
wall for tamper detection. If an interface is installed,
it will display the alarm as well (Wave PLUS only).
• Dry contact input for switching operation modes
between heating and cooling, if registered as a
system device.
• Dry contact input for forced ECO mode of
operation, if registered as a system device.
• Optional external temperature sensor can be
connected to the thermostat. Floor temperature
limitation (maximum and minimum) is only available
in a Wave PLUS system.
• Optional outdoor temperature sensor can be
registered as either standard thermostat or system
device.
• Dip switch for selecting between function or sensor
mode of operation.
• Enable or disable Comfort/ECO scheduling for the
room with a dip switch on the back.
• Can be placed up to 30 meters away from the
controller.
Components of the thermostat:
The illustration below shows the thermostat and its
components.
A
D
B
C
E
Item Description
A Uponor Smatrix Wave Thermostat Public T-163
B Wall bracket
C Batteries (AAA 1.5 V)
D Mounting material
E Connection terminal
