Uponor Smatrix Wave User Manual

Timer
Uponor Smatrix Wave Timer I-163 (Wave only)
The timer enables control of the system with
scheduling, Comfort/ECO settings, and Holiday mode
etc. Settings are adjusted using the +/- buttons on the
front.
The timer only shows time, date and current scheduling
program.
Main characteristics:
• Backlit display, dims after 10 seconds of inactivity.
• Timer symbol on the front to differentiate it from
thermostats.
• Displays Celsius or Fahrenheit in the settings.
• Comfort/ECO mode and low battery indication in
display.
• Displays software version during power up
sequence.
• Setup wizard to set time and date when installed for
the first time or after a factory reset.
• Option to set the clock.
• ECO mode setback for analogue thermostats. Digital
thermostats use their own setback temperatures.
Thermostat T-168 required to set its program to Off.
• Scheduling, pre-programmed and customizable
schedules.
• Enable holiday mode.
• Enable autobalancing in the system.
• Can be placed up to 30 meters away from the
controller.

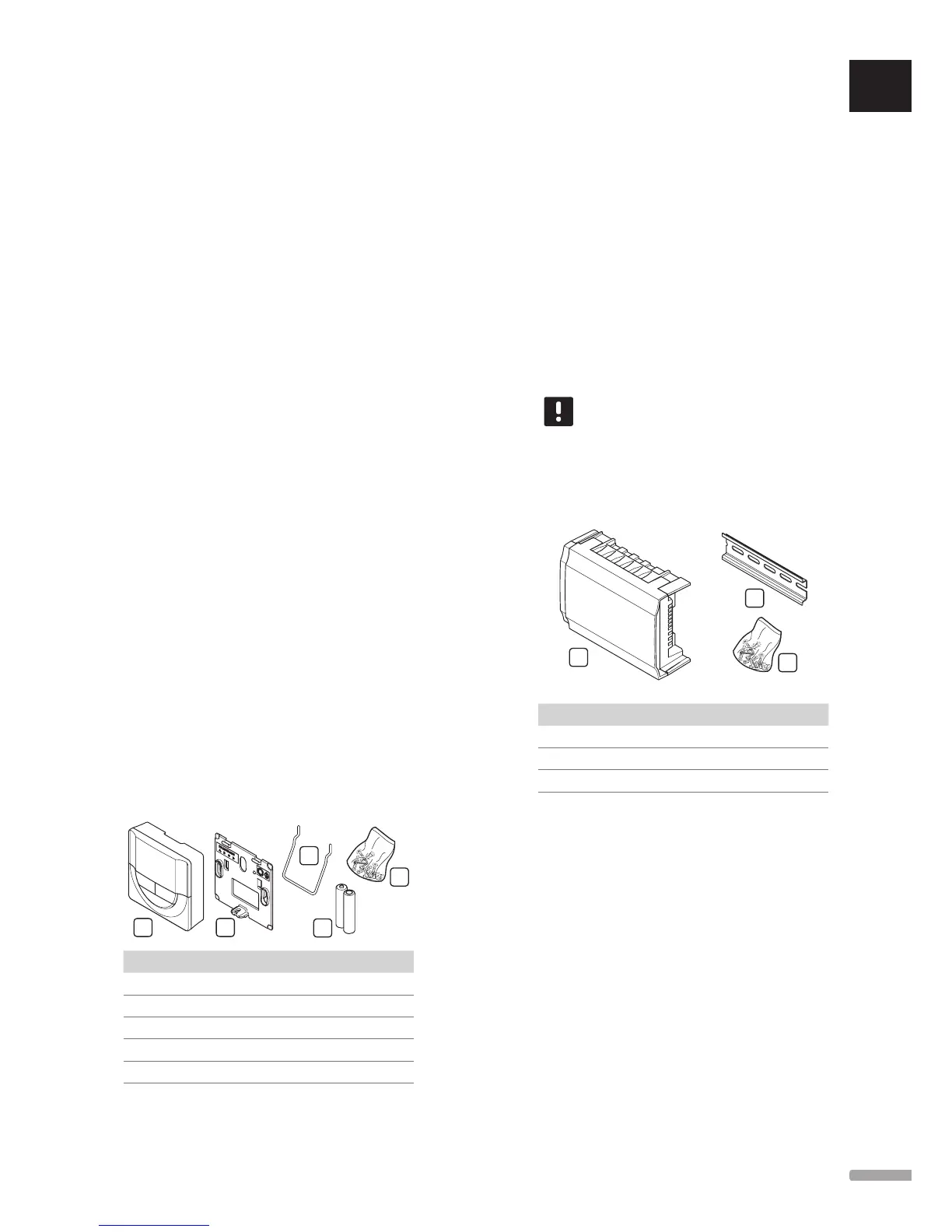

Components of the timer:
The illustration below shows the timer and its
components.
A
E
C
B
D
Item Description
A Uponor Smatrix Wave Timer I-163
B Wall bracket
C Stand
D Batteries (AAA 1.5 V)
E Mounting material
Slave module
Uponor Smatrix Wave Slave Module M-160
The slave module adds six channels and actuator
outputs to an existing Uponor Smatrix Wave/Wave
PLUS controller.
Main characteristics:
• Easy plug in installation on existing controller, no
additional wiring needed.
• Register up to six extra thermostats to the system.
• Connect up to six extra actuators (24 V).
• Electronic control of actuators.
• Valve exercise.
NOTE!
Only one slave module extension is supported
per controller.
Components of the slave module:
The illustration below shows the slave module and its
components.
A
B
C
Item Description
A Uponor Smatrix Wave Slave Module M-160
B DIN rail
C Mounting material
UK
CZ
DE
DK
EE
ES
FI
FR
HR
HU
IT
LT
LV
NL
NO
PL
PT
RO
RU
SE
SK
13
UPONOR SMATRIX WAVE/WAVE PLUS · INSTALLATION AND OPERATION MANUAL
