Uponor Smatrix Wave User Manual

Uponor Smatrix Wave/Wave PLUS
system
A connection example of Uponor Smatrix Wave/Wave
PLUS Controller (six channels) with an optional Uponor
Smatrix Wave Slave Module (six extra channels) using
system devices (S) and thermostats (T) as shown in
figure.
The installation will work in a standard way with the
thermostats regulating each room according to their set
temperatures.
Thermostats and actuators
• Thermostat #01 controls the actuators on channels
01a, 01b, 02a and 02b with the help of an option.
• Thermostat #03 controls the actuators on channels
03 to 05 with the help of an option.
• Thermostat #06 controls the actuators on channels
06 and 07.
• Thermostat #08 controls the actuators on channels
08 to 11 with the help of an option.
• Thermostat #12 controls the actuator on channel
12.
System devices
• Interface I-167 (Wave PLUS only) controls
the whole system and individual settings for
each thermostat can be set. Schedules can be
programmed for one or several thermostats
instructing them when to switch between Comfort
and ECO modes.
• The timer (Wave only) controls the switching
between Comfort and ECO modes for all available
thermostats activated for scheduling (except the
digital thermostat T-168).
• Relay module M-161 with two extra output relays.
See section 3.3 Uponor Smatrix Wave/Wave PLUS
components > Relay module for more information.
• Public thermostat T-163 with various functions
(options B and C).
NOTE!
If registering a public thermostat T-163 with
various functions as a system device, the
thermostat only acts as a remote unit. It does
not control the room temperature in the room
where it is placed.
Option A
• External temperature sensor.
• Floor temperature sensor.
Option B
• Outdoor temperature sensor.
Option C
• External temperature sensor for heating/cooling
switch. This option cannot be combined with a
heating/cooling switch, in the same system.
• Heating/cooling switch. This option cannot be
combined with an external temperature sensor for
heating/cooling switch, in the same system.
• Comfort/ECO mode switch.

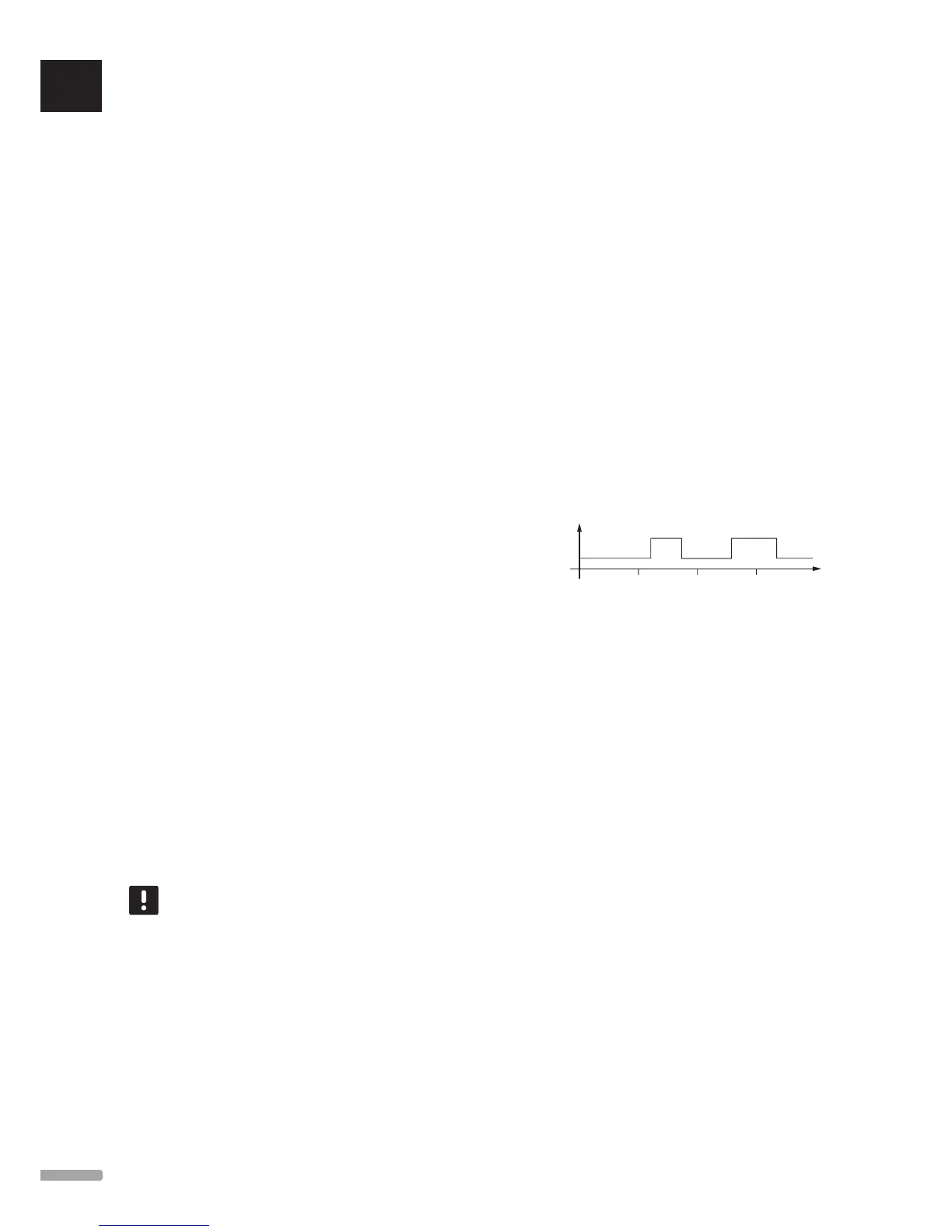

Schedules
Programmable schedules can, during heating and/or
cooling, switch between Comfort and ECO mode. See
example below.
0 h 00 24 h 0018 h 0012 h 006 h 00
Comfort
ECO
Schedule 1
night morning afternoon night
Other rooms can, depending on system setup,
simultaneously switch between Comfort and ECO mode
according to their own programmed schedules.
UK
CZ
DE
DK
EE
ES
FI
FR
HR
HU
IT
LT
LV
NL
NO
PL
PT
RO
RU
SE
SK
20
UPONOR SMATRIX WAVE/WAVE PLUS · INSTALLATION AND OPERATION MANUAL

Uponor Smatrix Wave Specifications

General

Control	Wireless
Communication	RF 868 MHz
User Interface	Touchscreen
Range	Up to 30m in open space
Battery Life	Thermostat battery life up to 2 years
Operating Temperature	0°C to +40°C
