Uponor Smatrix Wave User Manual

6. Secure the cable to/from the boiler with a cable
clamp in the enclosure.
7. Close and secure the lid to the optional connections
compartment.
To connect a boiler to a relay module (Wave PLUS
with interface only):

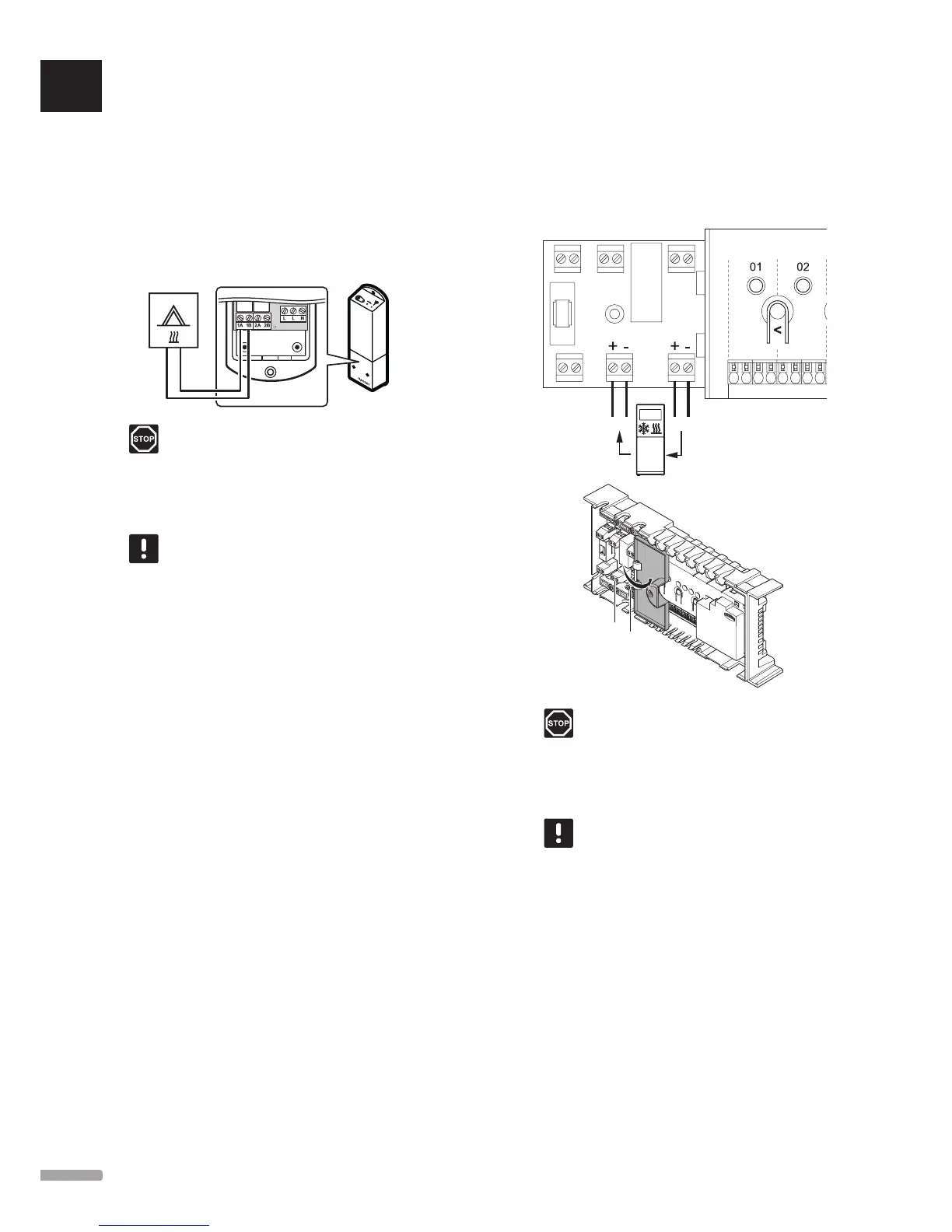

The illustration below shows a boiler connected to a
relay module.
Warning!
Electrical installation and service behind
secured 230 V AC covers must be carried
out under the supervision of a qualified
electrician.
NOTE!
This connection requires a dry contact
sensing input in the boiler.
1. Ensure that the power is disconnected from both
the relay module and the boiler.
2. Connect the cable to/from the boiler to the
connector 1A and 1B on the relay module.
3. Register the relay module to the controller as a
Relay module, system device channel 2. See
section 5.8 Register relay module M-161 for
installation of the relay module.
4. Go to menu Integration in the interface and select
Relay module.
5. Select the controller to which the relay module is
registered and select Boiler + Chiller.
A boiler is now connected to a relay module and
activated.
Connect heat pump integration
(optional)
The controller can connect to selected heat pumps and
adjust the supply temperature to the system.
The illustration below shows how to connect a
compatible heat pump to the controller.
IN OUT
OUT
IN
Warning!
Electrical installation and service behind
secured 230 V AC covers must be carried
out under the supervision of a qualified
electrician.
NOTE!
See the heat pump supplier documentation
and the relevant Uponor wiring diagram
before performing the connection.
Contact a local Uponor office for complete list of
compatible heat pumps.
To connect a compatible heat pump to the controller:
1. Study the wiring diagram in the end of the manual,
or inside the cover of the controller, to locate the
connector positions.
2. Ensure that the power is disconnected from both
the controller and the heat pump.
3. Remove the screw and open the cover for the
optional connections compartment.
UK
CZ
DE
DK
EE
ES
FI
FR
HR
HU
IT
LT
LV
NL
NO
PL
PT
RO
RU
SE
SK
32
UPONOR SMATRIX WAVE/WAVE PLUS · INSTALLATION AND OPERATION MANUAL

Uponor Smatrix Wave Specifications

General

Control	Wireless
Communication	RF 868 MHz
User Interface	Touchscreen
Range	Up to 30m in open space
Battery Life	Thermostat battery life up to 2 years
Operating Temperature	0°C to +40°C
