Uponor SmatrixMove User Manual

3. Secure the wires with a cable clamp in the
controller.
Connect chiller output to controller
(optional)
The controller includes a cooling relay. It can be used to
signal a chiller to start producing cooling. The controller
can switch between heating and cooling by using a
heating/cooling input.
See section 8.5 System parameter settings for more
information.
• The controller uses a dry contact sensing input on
the terminal block to control the chiller.
• The output uses 230 V (5 A) as a signal to produce
cooling. The signal from the controller is triggered
by a thermostat or an external source connected to
inputs In1 or In2 in the controller.
Warning!
There is 230 V (5 A) power in the controller
to manage the chiller, when the controller is
connected to the mains.
NOTE!
See the documentation from the chiller
supplier as well as relevant Uponor wiring
diagrams before connecting the chiller.
NOTE!
This connection requires a dry contact
sensing input in the chiller.

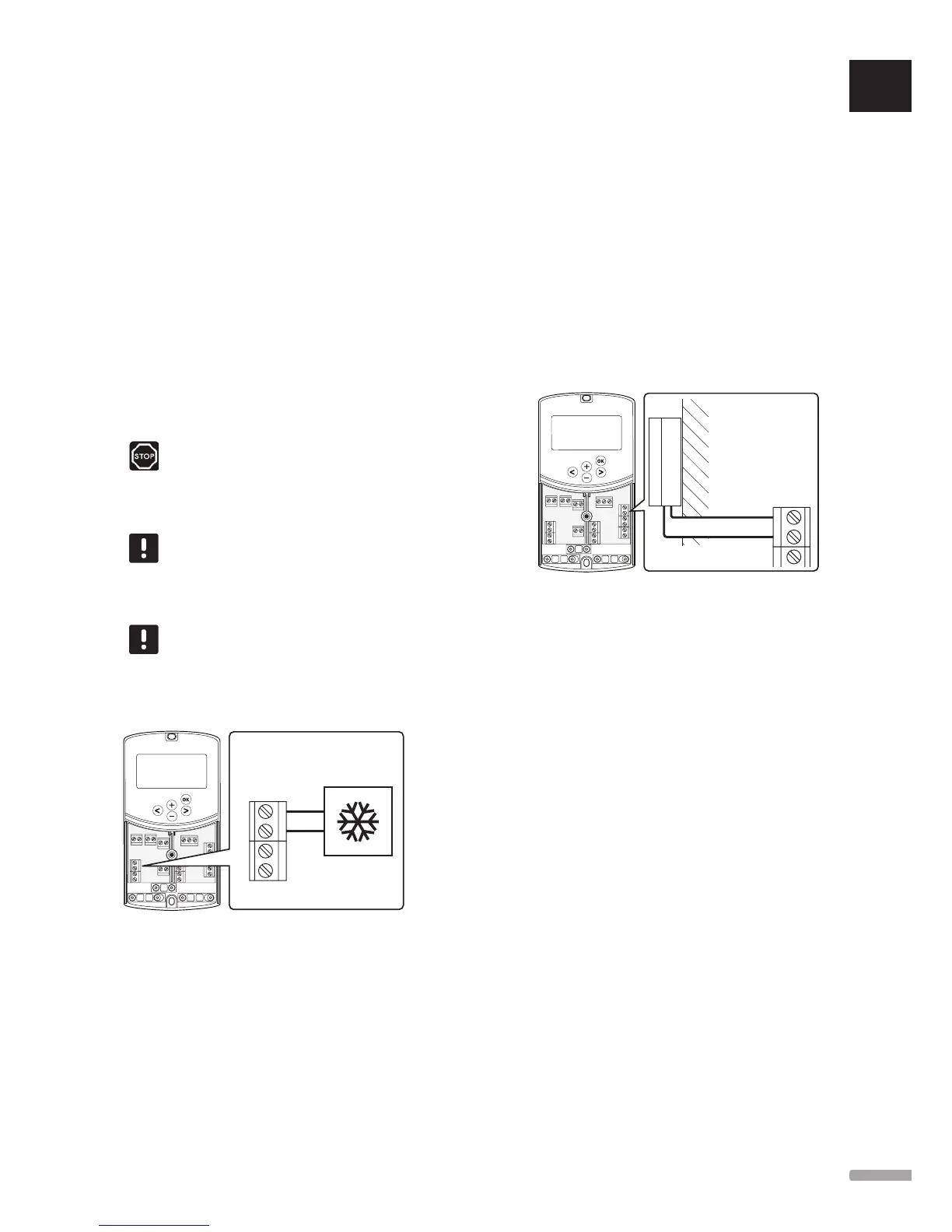

The illustration below shows the connection of a chiller
to the controller.
1. Ensure that the power is disconnected from both
the controller and the chiller.
2. Connect the chiller to the connection labelled P2/
COLD in the controller.
3. Secure the wires with a cable clamp in the
controller.
Connect outdoor sensor to controller
An outdoor sensor can be connected to the controller in
two different ways depending on the controller.
• Wired (Move and Move PLUS)
The outdoor sensor is wired to the controller.
• Wireless (Move PLUS only)
The outdoor sensor is wired to a thermostat, which
is communicating with the controller by radio link.
See section 6 Install Uponor Smatrix Wave/Wave
PLUS thermostats and sensors for more information.
See section 8.5 System parameter settings for more
information.
The illustration below shows the connection of an
outdoor temperature sensor to the controller.
1. Ensure that the power is disconnected from the
controller.
2. Connect the outdoor temperature sensor to the
terminal block connection at position OUTSIDE in
the controller
3. Secure the wires with a cable clamp in the
controller.
UK
CZ
DE
DK
EE
ES
FI
FR
HR
HU
IT
LT
LV
NL
NO
PL
PT
RO
RU
SE
SK
23
UPONOR SMATRIX MOVE/MOVE PLUS · INSTALLATION AND OPERATION MANUAL
