Uponor SmatrixMove User Manual

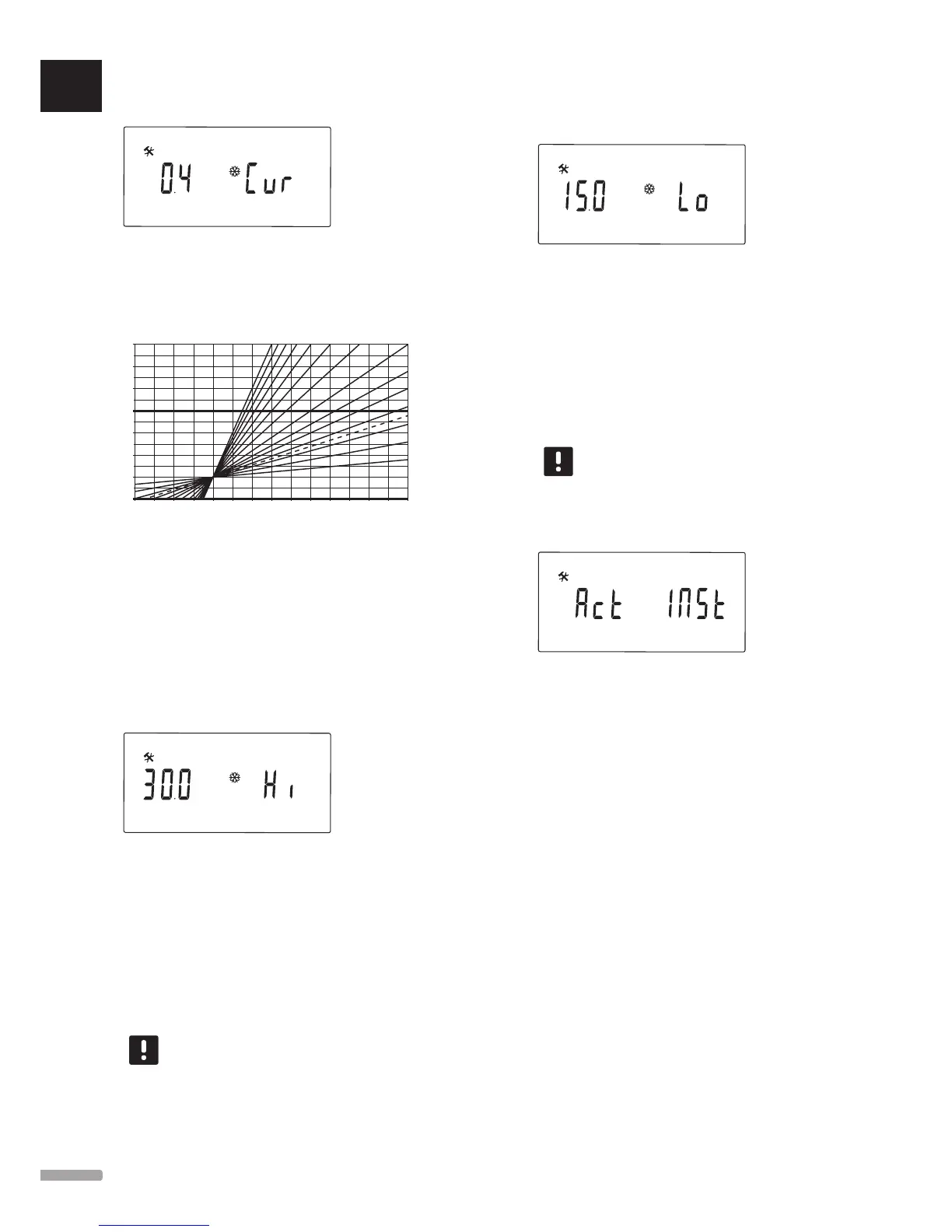

1 – Cooling curve
1
Set the cooling curve of the system.
The cooling curve is used to calculate the supply
temperature to the cooling system, while in cooling
mode. See diagram below.
80
70
60
50
40
30
20
10
36 34 32 30 28 26 24 22 20 18 16 14 12 10 8642 -2 -4 -6 -8 -10-12 -14-16-18-200
0,2
0,4
0,6
0,7
0,8
1
1,2
1,5
22,533,544,55
Supply temperature
Outdoor temperature
To change this setting:
1. Use buttons - or + to change the parameter.
Default: 0.4
Setting range: 0.1 – 5, 0.1 increments
2. Press OK to confirm the change and return to the
system parameter settings.
2 – Maximum supply temperature
(cooling)
2
Set a maximum supply temperature limitation, while in
cooling mode.
To change this setting:
1. Use buttons - or + to change the parameter.
Default: 30.0 ˚C
Setting range: (Lo + 5.0) – 100.0 ˚C, 1.0 ˚C increments
2. Press OK to confirm the change and return to the
system parameter settings.
NOTE!
This parameter cannot be set lower than the
set value in parameter menu 3 – Minimum
supply temperature (cooling).
3 – Minimum supply temperature
(cooling)
3
Set a minimum supply temperature limitation, while in
cooling mode.
To change this setting:
1. Use buttons - or + to change the parameter.
Default: 15.0 ˚C
Setting range: 1 – (Hi - 1.0) ˚C, 1.0 ˚C increments
2. Press OK to confirm the change and return to the
system parameter settings.
NOTE!
This parameter cannot be set higher than the
set value in parameter menu 2 – Maximum
supply temperature (cooling).
4 – Type of system
4
Select the type of hydraulic installation used in the
system.
To change this setting:
1. Use buttons - or + to change the parameter.
Act (Default) Installation with a mixer valve
connected to the ACTUATOR terminal. The
COLD terminal will manage a 3-way On/
Off valve for switching between heating and
cooling.
SEP Installation with separate heating and cooling
systems. A boiler can be connected to the
HEAT terminal and a chiller can be connected
to the COLD terminal.
2P.1 Installation using two circulation pump
circuits, one for underfloor heating/cooling
using the P1 terminal, and one for panel
heaters using the P2/COLD terminal. The
second pump (panel heaters) is stopped when
in cooling mode to keep cold water out of the
panel heater.
2P.2 Installation using two circulation pump
circuits, one for underfloor heating/cooling
using the P1 terminal, and one for a fan coil
circuit using the P2/COLD terminal.
UK
CZ
DE
DK
EE
ES
FI
FR
HR
HU
IT
LT
LV
NL
NO
PL
PT
RO
RU
SE
SK
48
UPONOR SMATRIX MOVE/MOVE PLUS · INSTALLATION AND OPERATION MANUAL
