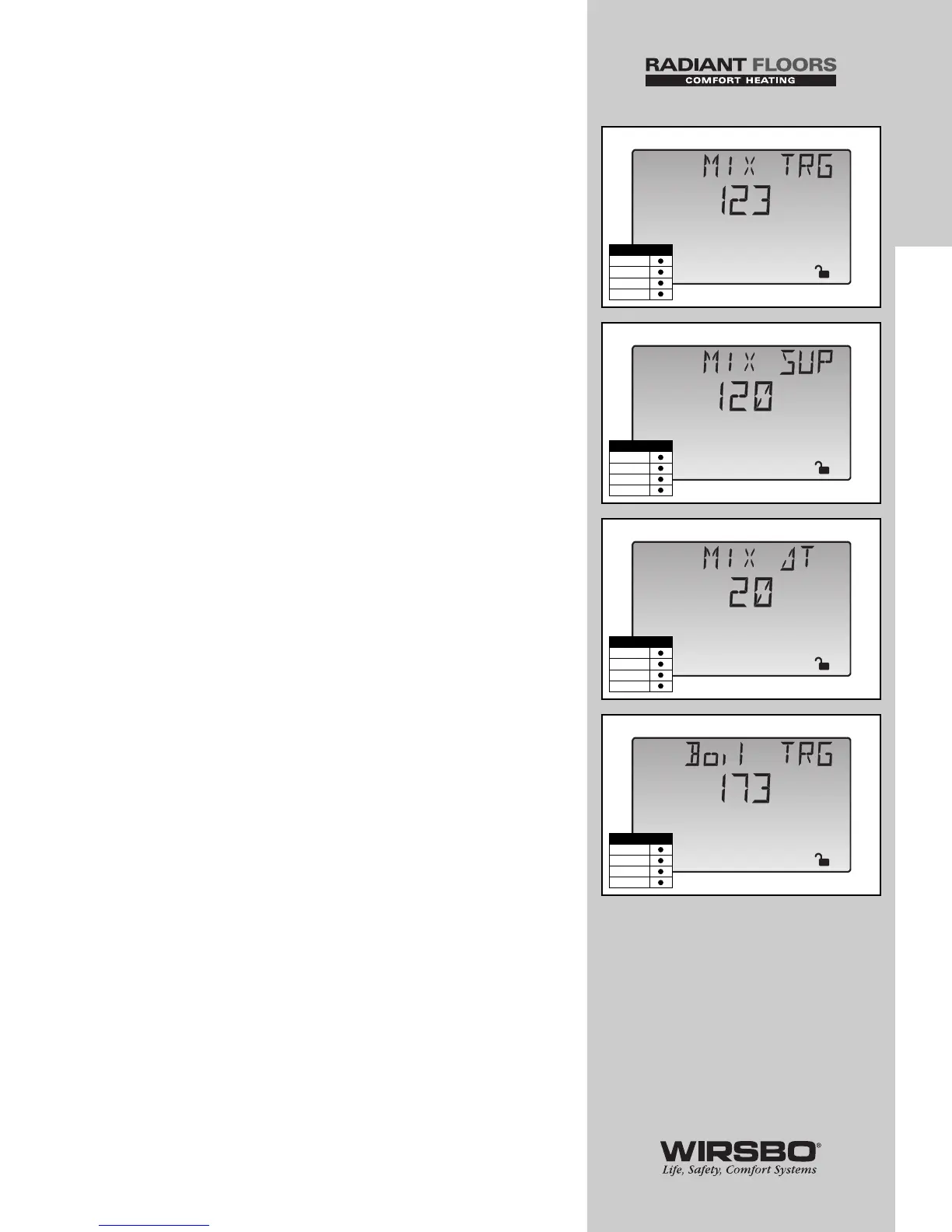

MIX TRG (See fig. e)
The targeted mixed supply water temperature the control has
calculated in order to meet current conditions
MIX SUP (See fig. f)
Shows actual mix supply water temperature to the system at
mix supply sensor S1 location
MIX ∆T (See fig. g)
Shows actual temperature differential (Delta-T) between mix
supply sensor S1 and mix return sensor S5 locations
Boil TRG (See fig. h)
The targeted boiler supply temperature the control has
calculated in order to meet the current conditions
11
INTRODUCTION
INTRODUCTION - Viewing the Status of the System Performance
