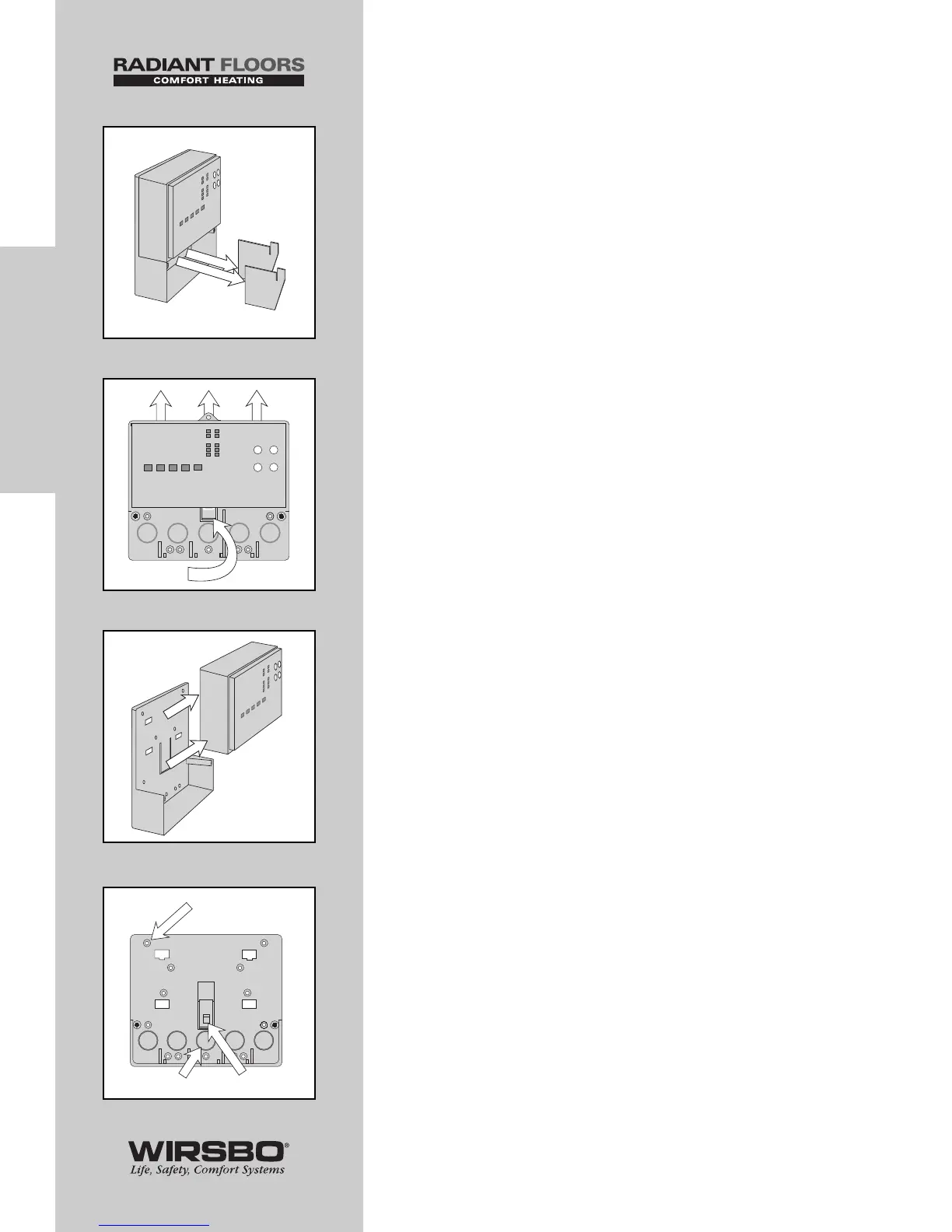

Remove the safety dividers from the wiring chamber by
pulling them straight out of their grooves.
(See fig. e)
Press the control release clip on the base inside the
wiring chamber and slide the control upwards.
(See fig. f)
The control lifts up and away from the base.
(See fig. g)
Mounting the Base (See fig. h)
1) Find a convenient and accessible location typically in
the mechanical room
2) Following the hole pattern, mount the control base
using the appropriate screws
16
INSTALLATION
INSTALLATION - Step 2 - The Control Base
e
f
g
h
Mounting holes
Knockout
Locking Clip
Release Clip
To Next Page
