Illustrated Parts Breakdown
6.2
Section
AB46 Work Platform6-44

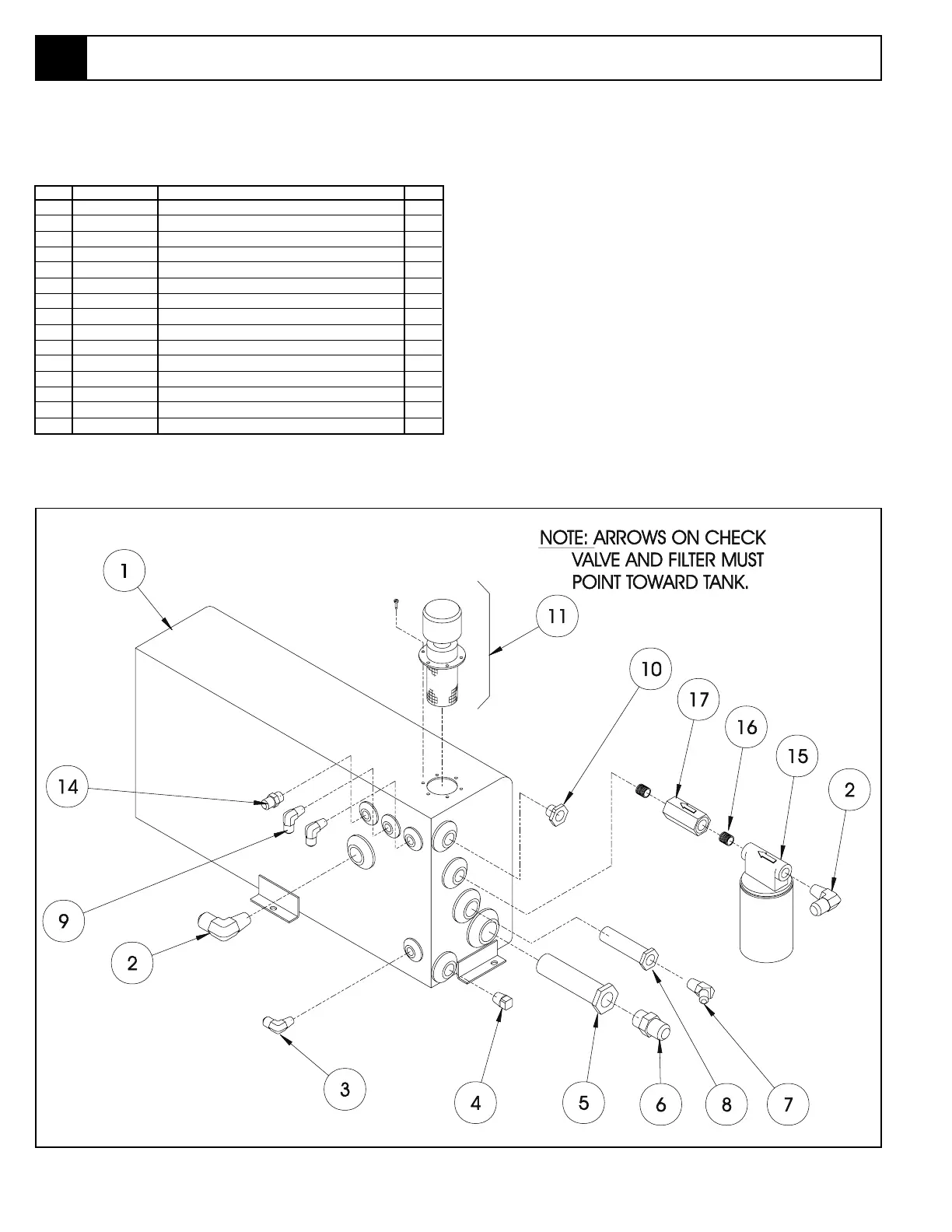

HYDRAULIC TANK ASSEMBLY, AB46
GAS/DIESEL
68709-000
ITEM PART DESCRIPTION QTY.
1 68670-000 HYDRAULIC RESERVOIR 1
2 11940-019 FITTING, 90° ELBOW 12MP-10MJ 2
3 11940-008 FITTING, 90° ELBOW 6MP-4MJ 1
4 21305-007 PLUG, MAGNETIC 1
5 63935-000 STRAINER 1
6 11939-024 FITTING, STR ADAPTER 16MP-16MJ 1
7 13485-017 FITTING, 45° ELBOW 12MP-12MJ 1
8 61818-000 STRAINER 1
9 11940-010 FITTING, 90° ELBOW 6MP-6MJ 2
10 63979-006 SIGHT GUAGE 1
11 68840-000 FILLER BREATHER CAP & SCREEN 1
14 11939-008 FITTING, STR ADAPTER 6MP-4MJ 1
15 05154-001 FILTER, HYDRAULIC SPIN ON 1
16 12467-003 NIPPLE, PIPE 3/4 CLOSE 2
17 68809-000 CHECK VALVE 1
