3-10 AB46 Work Platform
Maintenance
3.9
3.9 Hydraulic Brakes
Removal
1. Park the work platform on firm level ground and block
the wheels to prevent the work platform from rolling.
2. Disconnect the hydraulic brake lines.
3. Tag and disconnect hydraulic lines to drive motors.
Clean all fittings before disconnecting the
hose assemblies.
Plug all port holes and hose assemblies
IMMEDIATELY to prevent contamination
from dust and debris.
4. Remove capscrews and washers holding the drive
motor and brake to torque hub.
5. Remove the drive motor.
5. Remove the brake.

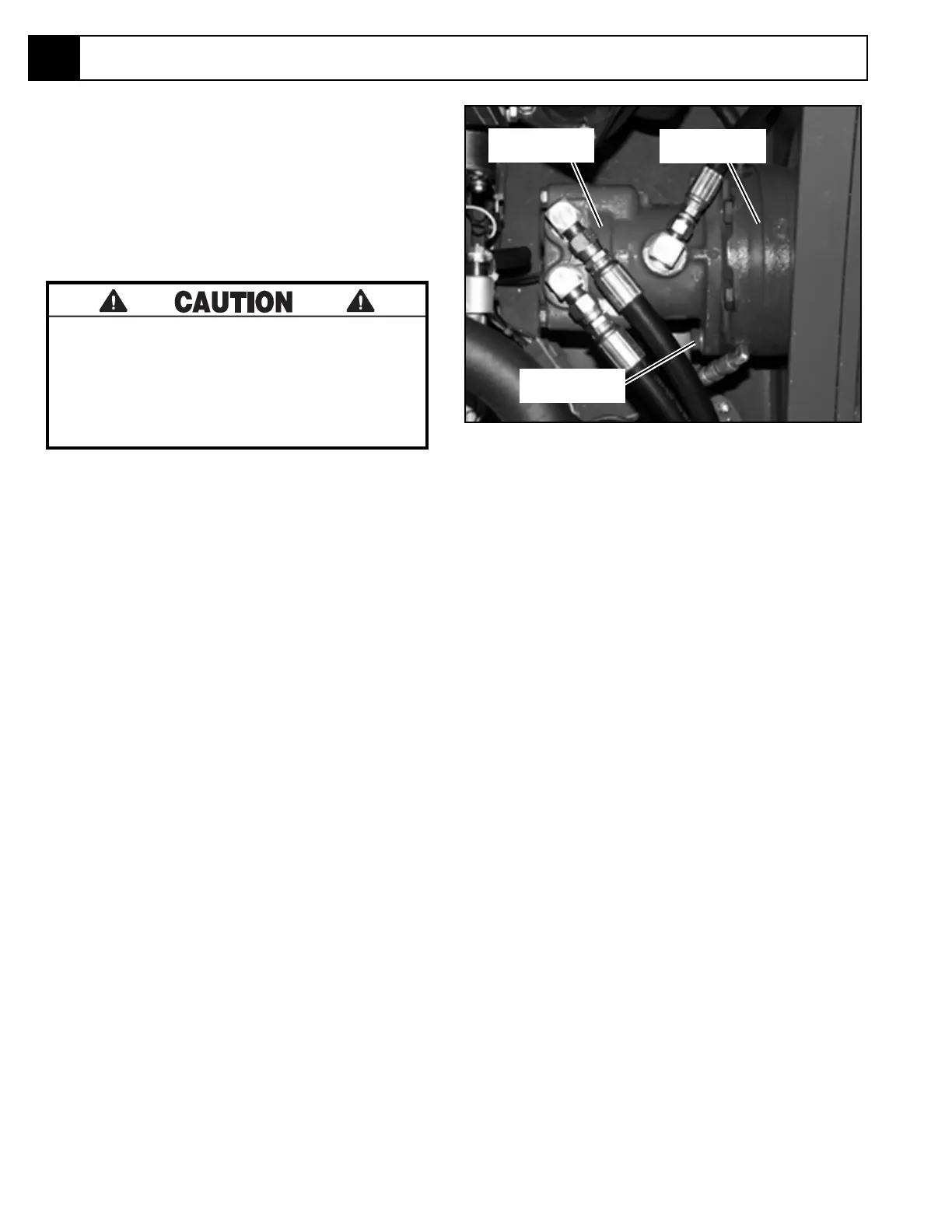

Figure 3-10: Rear Axle Assembly
NOTE: Torque all hardware to torques listed on
page 3-32 unless otherwise specified.
Cap Screw
Brake
Drive Motor
