Upright AB46 C User Manual

Schematics
Section
5-13AB46 Work Platform
5.4

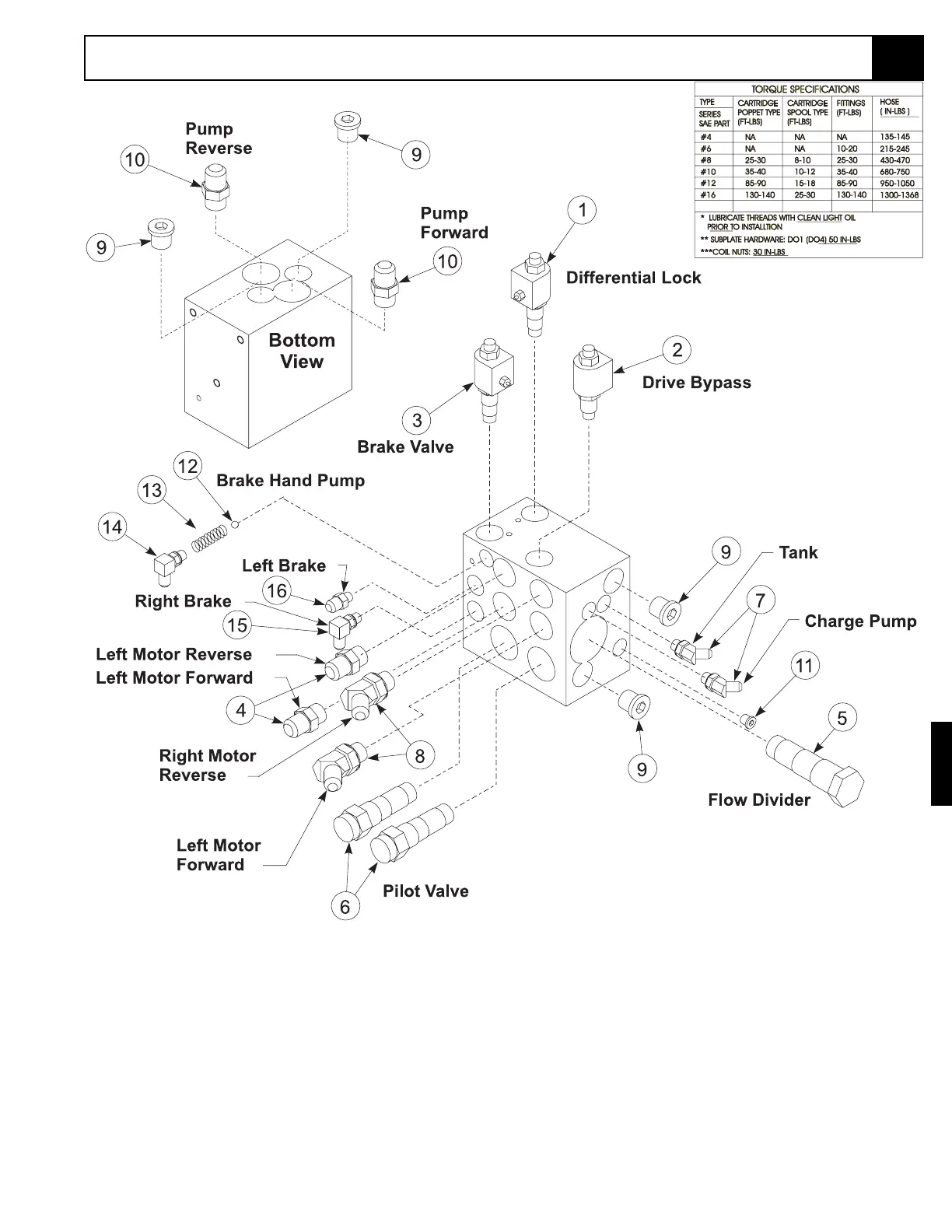

DRIVE VALVE BLOCK ASSEMBLY
ITEM DESCRIPTION
1. Valve Spool, 2 Position - 3 Way
2. Valve, Poppet - 2 Way ON/OFF
3. Valve Spool, 2 Position - 3 Way
4. Adapter, 10MB - 8MJ
5. Valve, Flow Control
6. Valve, Spool - 2 Way N.O.
7. Adapter, 45° - 4MB - 4MJ
8. Adapter, 45° - 10MB - 8MJ
9. Plug, #8 SAE
10. Adapter, 12MB - 12MJ
11. Plug, #4 SAE
12. Steel Ball, 15/16 Diameter
13. Spring, 1/4 Diameter x 19/32
14. Adapter, 90° - 4MB - 4MJ90
15. Adapter, 90° - 6MB - 4MJ
16. Adapter, 6MB - 4MJ
ITEM DESCRIPTION
Figure 5-8: Drive Valve Box
