Upright AB46 C User Manual

Section
3-9AB46 Work Platform
Maintenance

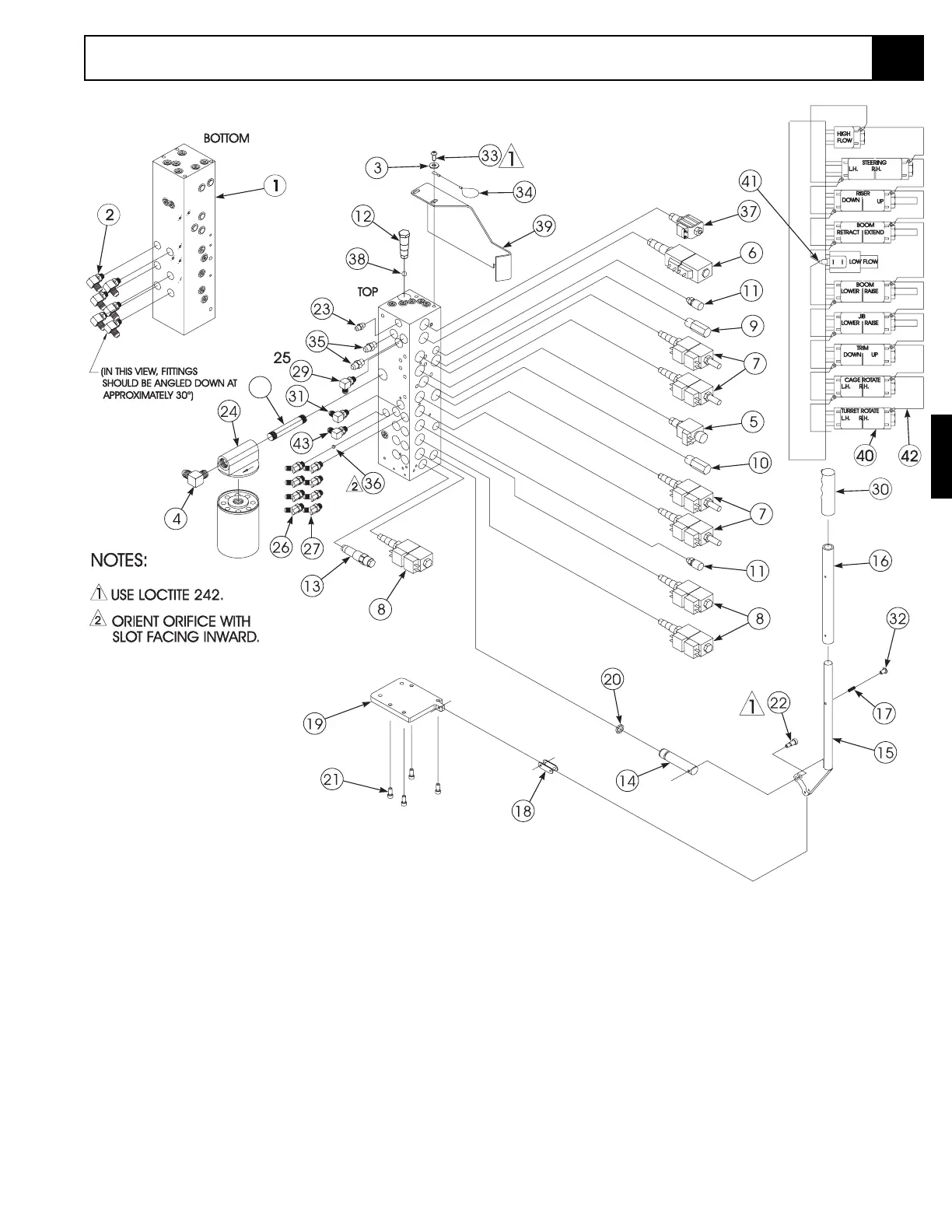

Figure 3-8: Hydraulic Manifold, Exploded View
3.8
1. Valve Block
2. Fitting
3. Washer, 5/16 Flat
4. Fitting, Elbow
5. Low Flow Valve
6. Steering Valve
7. 4-Way Closed Center
8. 4-Way Motor Spool
9. Relief Valve
10. Relief Valve
11. Plug
23. Fitting
24. Filter Assembly
25. Nipple
26. Fitting Elbow
27. Fitting, Elbow
28. Fitting, Elbow
29. Fitting Elbow
30. Grip
31. Fitting Elbow
32. Screw, 10-20
33. Screw, 5/16-18
12. Diverter Valve
13. Counterbalance
14. Piston
15. Lever
16. Extension
17. Detent
18. Pivot Link
19. Mounting Plate
20. Seal
21. Screw, 5/16-18
22. Screw, 3/8 x 5/8
34. Lanyard
35. Fitting Adapter
36. Orifice
37. High Flow Valve
38. Steel Ball, 7/16
39. Bracket
40. Connector Ring
41. Connector Female
42. Wire
43. Fitting, Elbow
NOTE: Refer to "SCHEMATICS" Figure 5-4 for a listing of
hydraulic valve ports.
