Illustrated Parts Breakdown
6.2
Section
AB46 Work Platform 6-53
1 68329-002 CONTROLLER ASSY - DOM. (DIESEL) 1
7 68750-000 DECAL MOUNT 1
8 63778-001 ALARM 1
9 08942-001 FEMALE RECEPTACLE 1
10 29961-001 SEAL 1
11 11252-008 SCREW HHC 1/4-20 UNC X 1 4
12 11248-004 NUT HEX 1/4-20 UNC ESNA 8
13 11715-006 SCREW RD HD 6-32 UNC X 3/4 4
14 11248-047 NUT HEX 6-32 UNC ESNA 4
15 11709-006 SCREW RD HD 10-24 UNC X 3/4 3

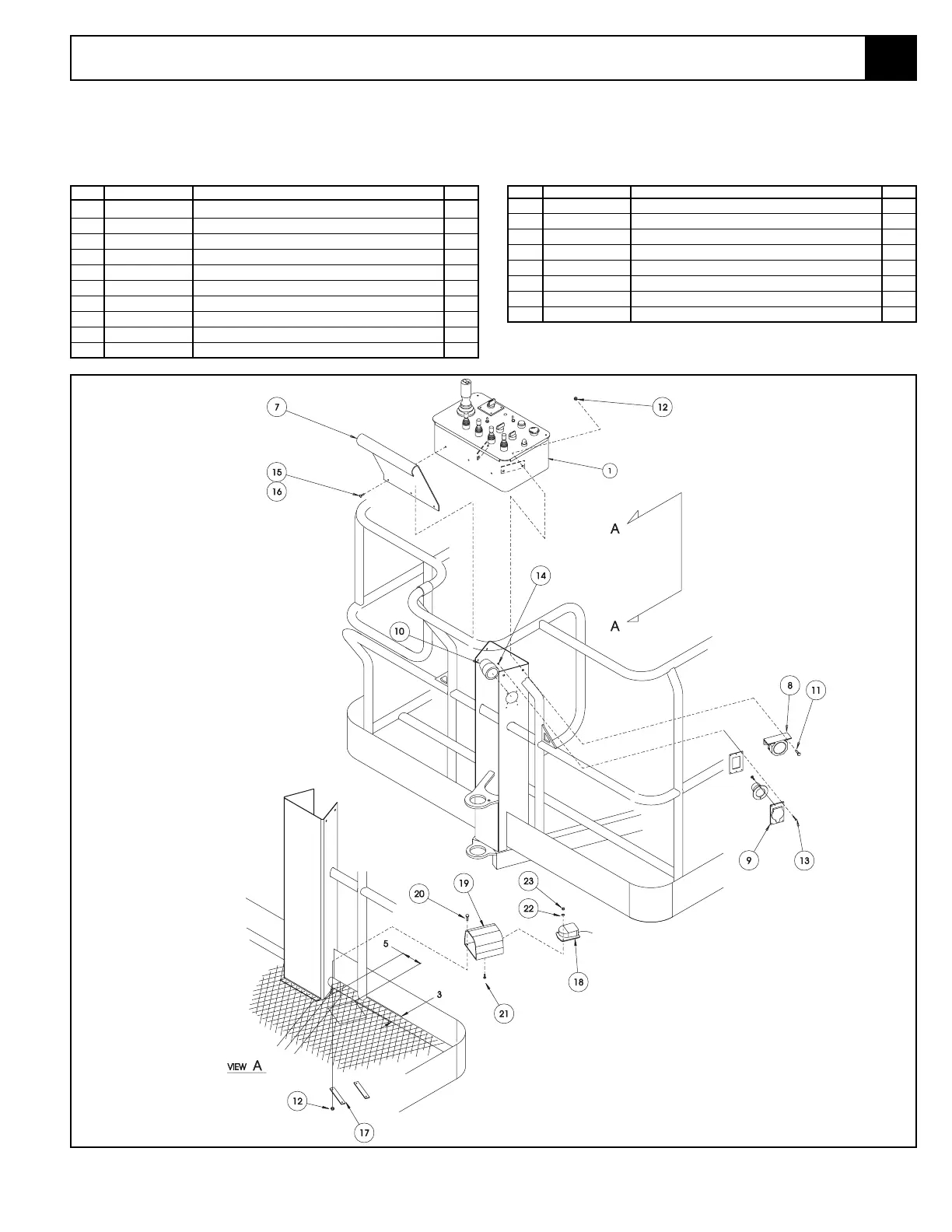

CONTROLLER INSTALLATION
AB46 DIESEL
68339-003
ITEM PART DESCRIPTION QTY.
16 11248-003 NUT HEX 10-24 UNC ESNA 3
17 68820-000 RETAINING STRAP-FOOTSWITCH 2
18 63906-000 FOOT SWITCH CLPR 1
19 64479-000 SWITCH GUARD, FOOT 1
20 11252-012 SCREW HHC 1/4-20 UNC X 1 1/2 4
21 66695-006 SCREW FLAT HD 10-24 UNC X 3/4 2
22 13949-003 WASHER, #10 STAR, EXTERNAL TOOTH 2
23 11250-003 HEX NUT 10-24 UNC 2
