3-19AB46 Work Platform
Maintenance
F. Sun Gear
G. Gear, Internal
H. Cover
I. Shoulder Bolt
J. Bolt
1. Lip Seal
2. Bearing, Cone
3. Bearing, Cup
4. Thrust Washer
5. Retaining Ring
A. Spindle
B. Housing
C. Carrier Assy
D. Gear Ring
E. Spacer, Input

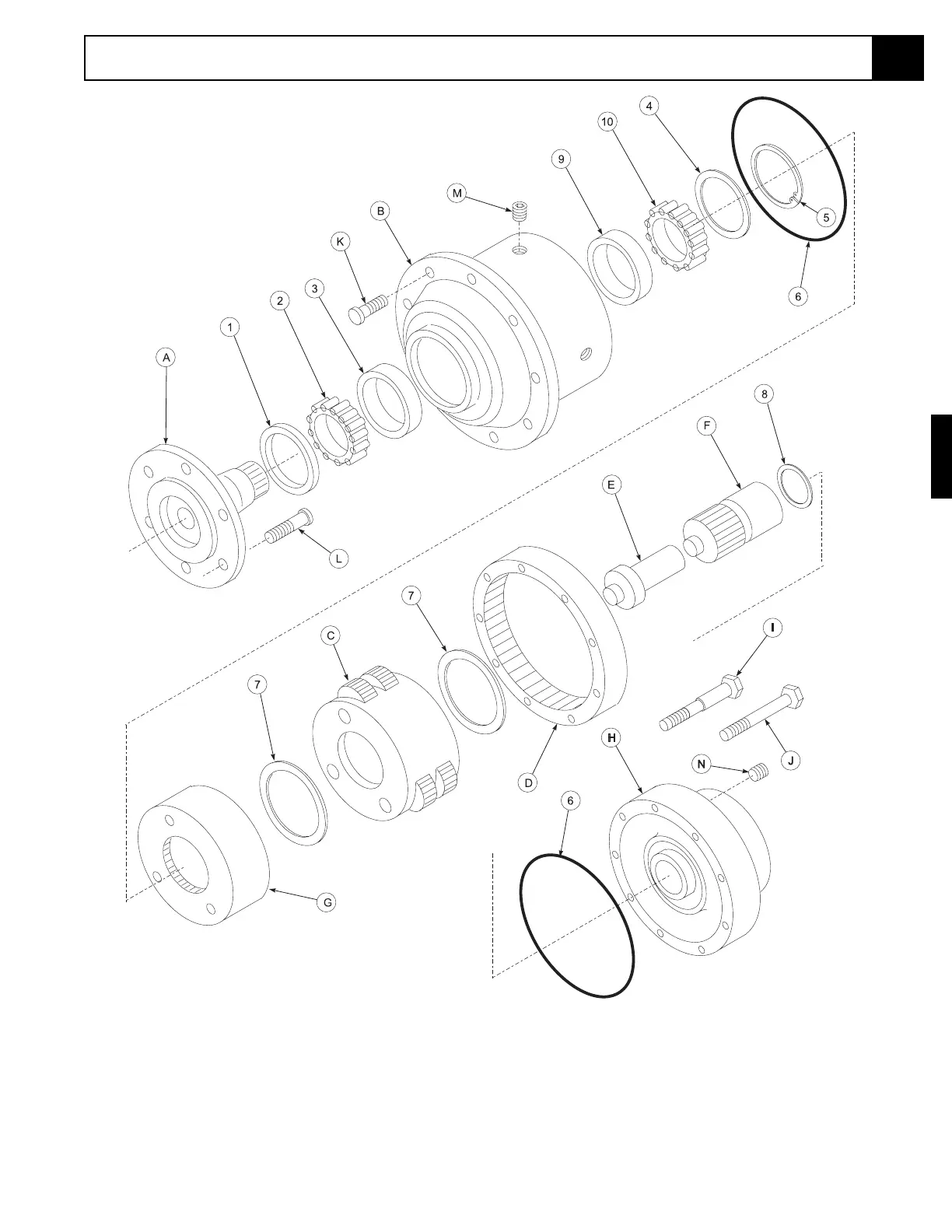

Figure 3-19: Torque Hub
K. Stud
L. Stud
M. Pipe Plug
N. Pipe Plug
6. O-Ring (2)
7. Thrust Washer (2)
9. Bearing, Cup
10. Bearing, Cone
Repair Kit (068570-010) contains:
3.13
8. Thrust Washer - SK91 (068570-011)
