Section 2 - Service and Repair Switch Adjustments
113101-000 MX15 / MX19 | Service Manual Page 2-9
2-5 S
WITCH
A
DJUSTMENTS
WARNING
!
!
Always use the elevating assembly brace whenever it is necessary to enter the elevating assembly
when the platform is elevated.
L
EVEL
S
ENSOR
I
NTRODUCTION
The Level Sensor has three wires: red-power (24V in), black-ground, white-output (24V out). To verify that
the sensor is working properly, there is one LED under the sensor that indicates the sensor is off level.

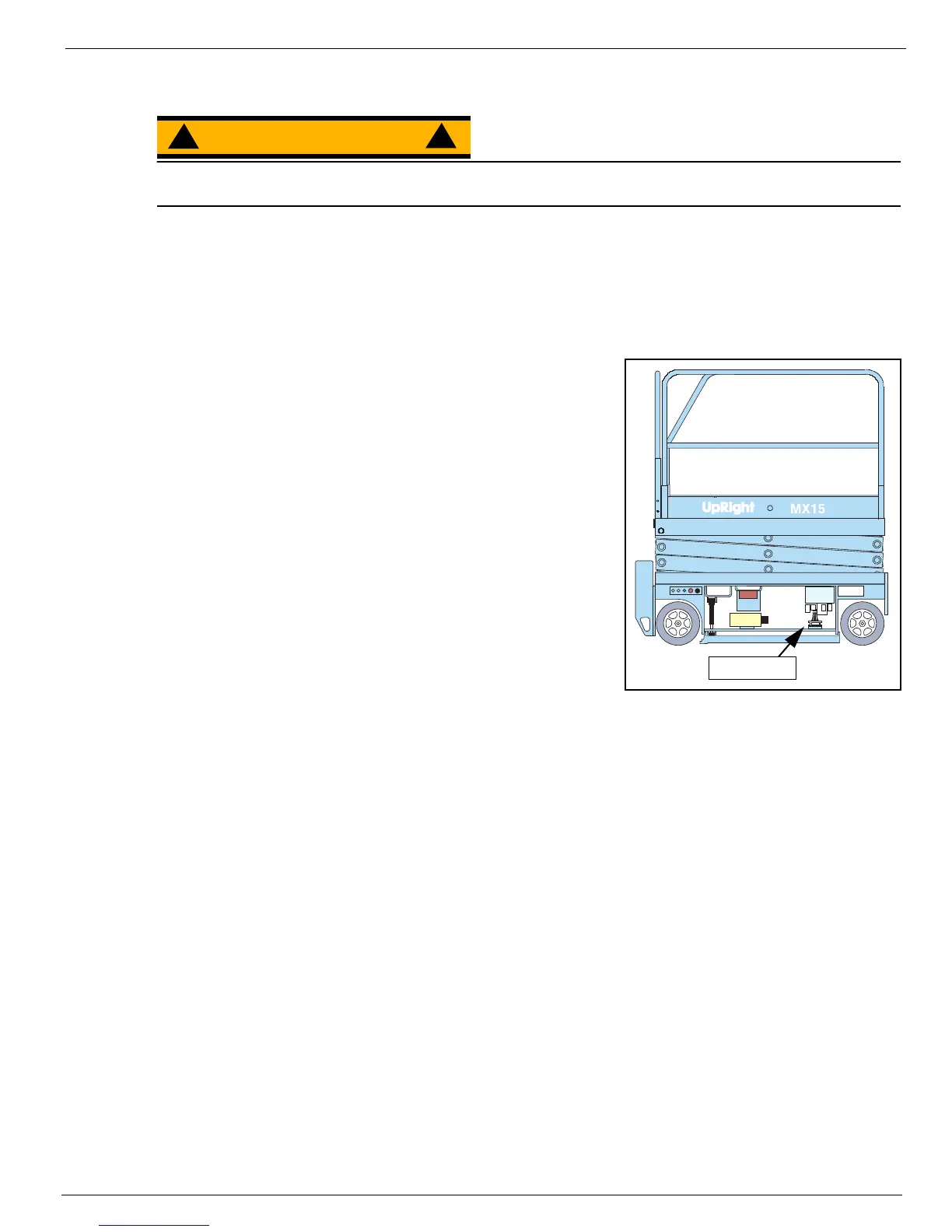

Figure 2-4:
Level Sensor
A
DJUSTMENT
1. Place machine on firm, level surface.
2. Use an Inclinometer (P/N: 10119-000-00) to ensure that the
Chassis is level from front to rear and side to side.
3. Open the right door to access the Level Sensor.
4. Adjust the three leveling locknuts until the bubble is centered
in the circle on the attached bubble level.
T
EST
1. Open the right door.
2. Push and hold the sensor off of level while pushing the Chas-
sis Lift Switch to the UP position.
The alarm should sound, and the platform should not lift.
3. Close and latch the door.
Level Sensor
