Upright SL26 Series User Manual

Operation
2-9
1. Check that the route is clear of obstacles (persons, obstructions, holes, drop-offs, bumps, and
debris), is level, and is capable of supporting the wheel loads.
2. Check clearances above, below, and to the sides of platform.
3. Elevate the platform approximately 600mm (2ft).
4. Press and hold the AUTO LEVEL and Engage the Safety Interlock Trigger until the platform is
level and the tilt alarm is silenced.
5. In this condition only the ELEVATE and DESCEND functions will work.
6. If you need to drive you must descend and return the platform to it’s normal inclination.
E MERGENCY L OWERING
WARNING
!
!
If the platform should fail to lower, NEVER climb down the elevating assembly.
Stand clear of the elevating assembly while operating the Emergency Lowering Valve Knob.

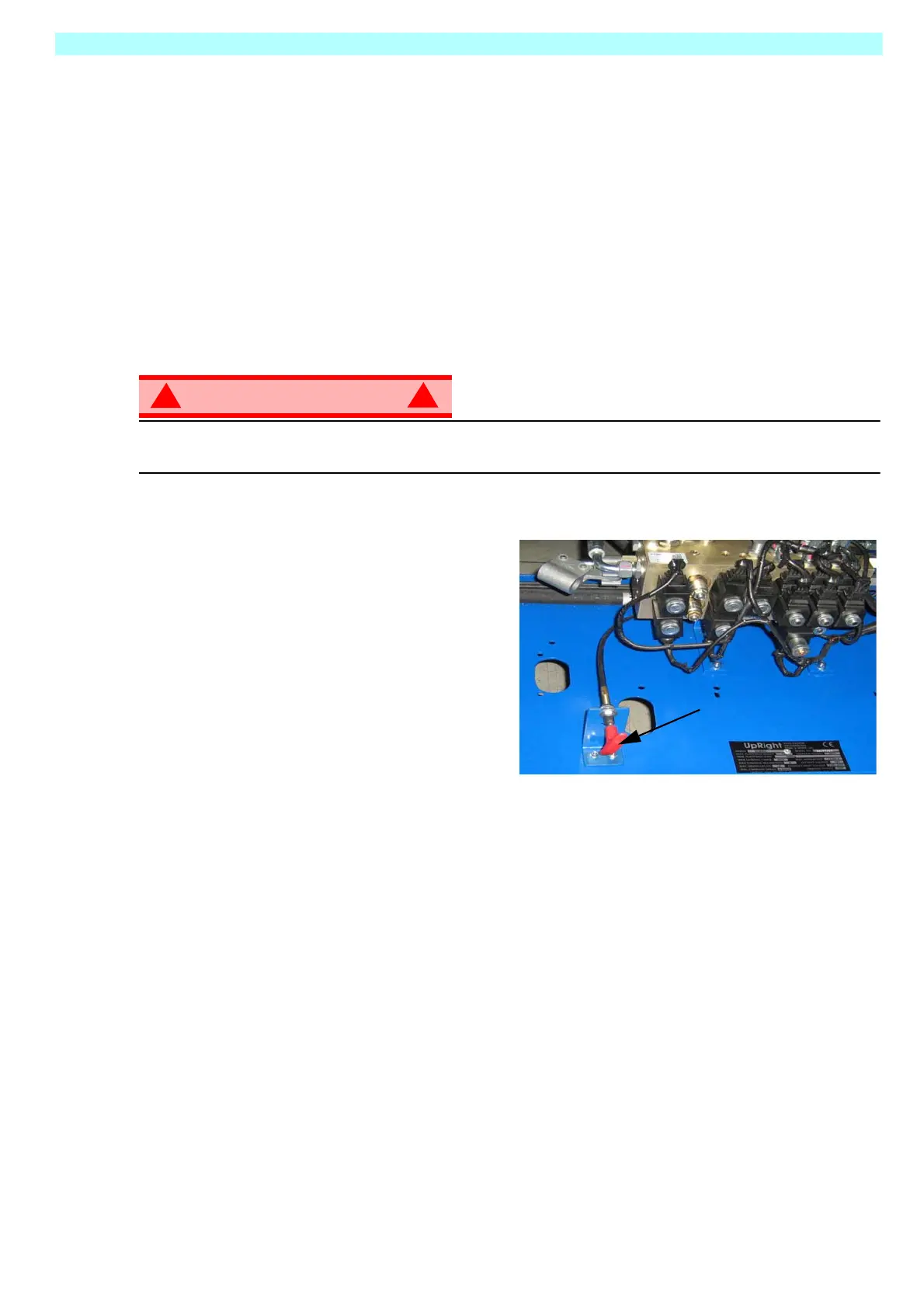

Figure 4: Emergency Lowering Valve
F OLD D OWN G UARDRAILS
This procedure applies only to the SL26/30 Speed Level model for the purpose of passing through
a standard double doorway.
NOTE: Guardrails must be returned to proper position before using the machine.
F OLD D OWN P ROCEDURE
1. Unhook the controller from the side guardrail and place it on the floor of the platform.
2. Starting at the front of the platform, remove nuts, bolts and washers from the top of the front
guardrail. Fold the front guardrail down onto the platform.
3. Close and latch gate.
4. Remove nuts, bolts and washers from the top of the rear guardrail. Fold the rear guardrail
down onto the platform being careful to keep latched at all times.
5. Remove nuts, bolts and washers from the top of the side guardrails. Lift up and fold one side
guardrail in so it rests on the deck. Repeat with other side guardrails.
The Emergency Lowering Valve for the
SL26/30 is located in the control module of
the machine and is accessible through an
opening in the control module door.
1. Open the Emergency Lowering Valve by
pulling and holding the handle.
2. To close, release the knob. The platform
will not elevate if the Emergency
Lowering Valve is open.
Emergency
Lowering
Handle
