Upright SL26 Series User Manual

6-7

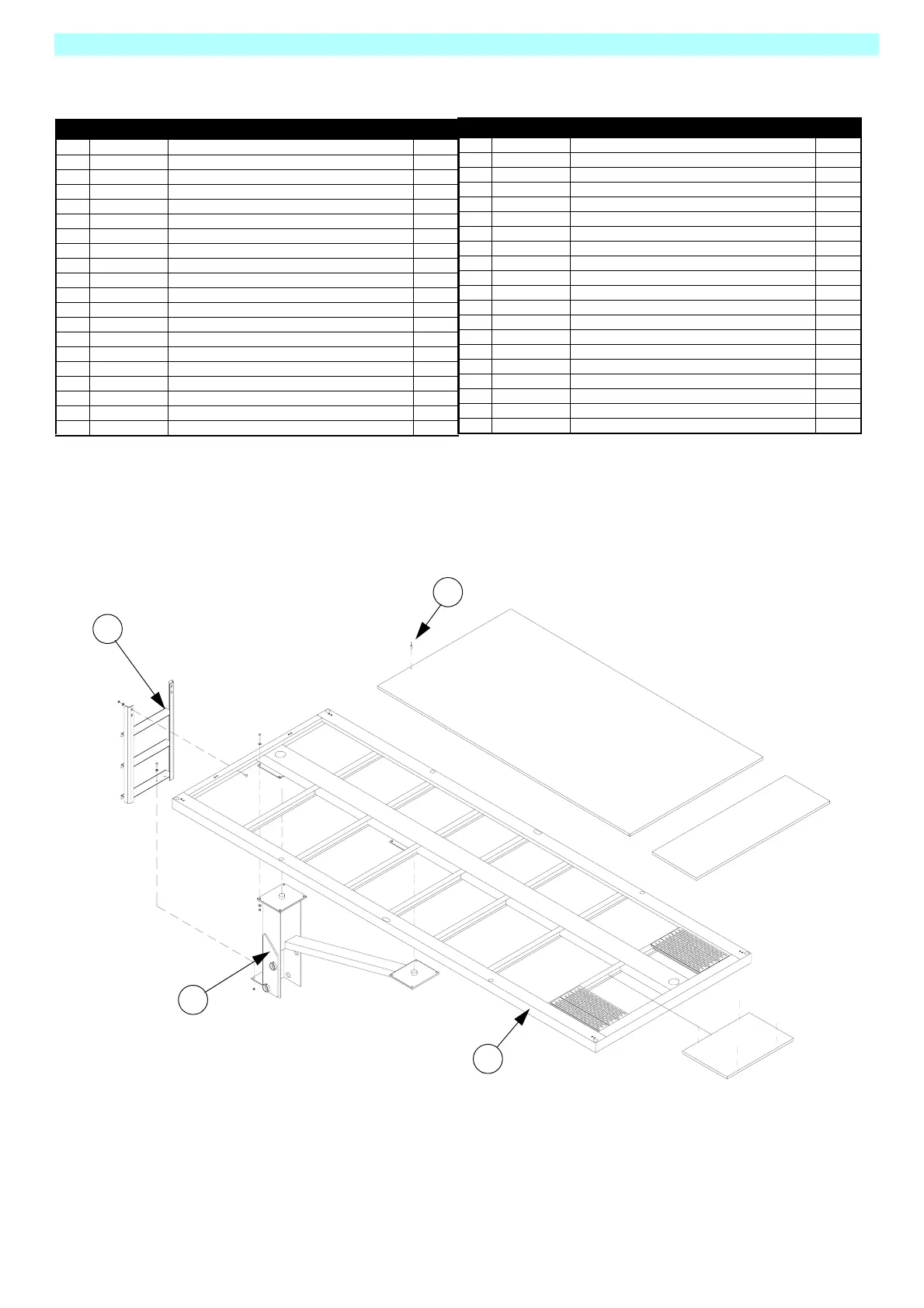

6. Illustrated Part List
Platform Assembly
SL30SL ~ 505503-000 SL26SL ~ 505603-00
ITEM PART DESCRIPTION QTY.
1 064540-011 DECK WELDMENT 1
2 064119-000 LADDER WELDMENT 1
3 064111-002 PEDESTAL WELDMENT 1
4 026554-002 RIVET (MAIN DECK) 24
5 064700-000 GUARDRAIL, FRONT 1
6 064696-000 KICKPLATE, SIDE 4
7 064698-000 GUARDRAIL, SIDE 4
8 064702-002 GUARDRAIL, END LEFT HAND SIDE 1
9 064702-001 GUARDRAIL, END RIGHT HAND SIDE 1
10 067764-001 KICKPLATE, GATE 1
11 067883-000 GATE WELDMENT 1
12 067712-000 GATE PIVOT TUBE 1
13 003570-005 PLUNGER ASSEMBLY 1
14 062642-026 BUSHING, GATE PIVOT 2
15 066526-004 GATE SPRING 1
16 064688-001 PIVOT BRACKET RH 2
17 064688-002 PIVOT BRACKET LH 2
18 064447-000 SKIRT PLATE (RUBBER SKIRT) 1
19 064448-000 RUBBER SKIRT 1
20 067695-000 SPACER, GUARDRAIL 6
1
2
3
4
ITEM PART DESCRIPTION QTY.
1 064100-011 DECK WELDMENT 1
2 064119-000 LADDER WELDMENT 1
3 064111-001 PEDESTAL WELDMENT 1
4 026554-002 RIVET (MAIN DECK) 24
5 ~ ~ ~
6 064695-000 KICKPLATE, SIDE 4
7 064697-000 GUARDRAIL, SIDE 4
8 064702-002 GUARDRAIL, END LEFT HAND SIDE 1
9 064702-001 GUARDRAIL, END RIGHT HAND SIDE 1
10 067764-001 KICKPLATE, GATE 1
11 067883-000 GATE WELDMENT 1
12 067712-000 GATE PIVOT TUBE 1
13 003570-005 PLUNGER ASSEMBLY 1
14 062642-026 BUSHING, GATE PIVOT 2
15 064526-004 GATE SPRING 1
16 064688-001 PIVOT BRACKET RH 2
17 064688-002 PIVOT BRACKET LH 2
18 064447-000 SKIRT PLATE (RUBBER SKIRT) 1
19 064448-000 RUBBER SKIRT 1
20 067695-000 SPACER, GUARDRAIL 6
