Upright SL26 Series User Manual

2-12
Transporting the Work Platform
L IFTING B Y F ORKLIFT
DANGER
! !
Forklifting is for transport only.
See specifications for weight of work platform and be certain that forklift is of adequate
capacity to lift the work platform.
Forklift from the side by lifting under the Chassis Modules.
D RIVING /W INCHING ONTO A T RUCK OR T RAILER

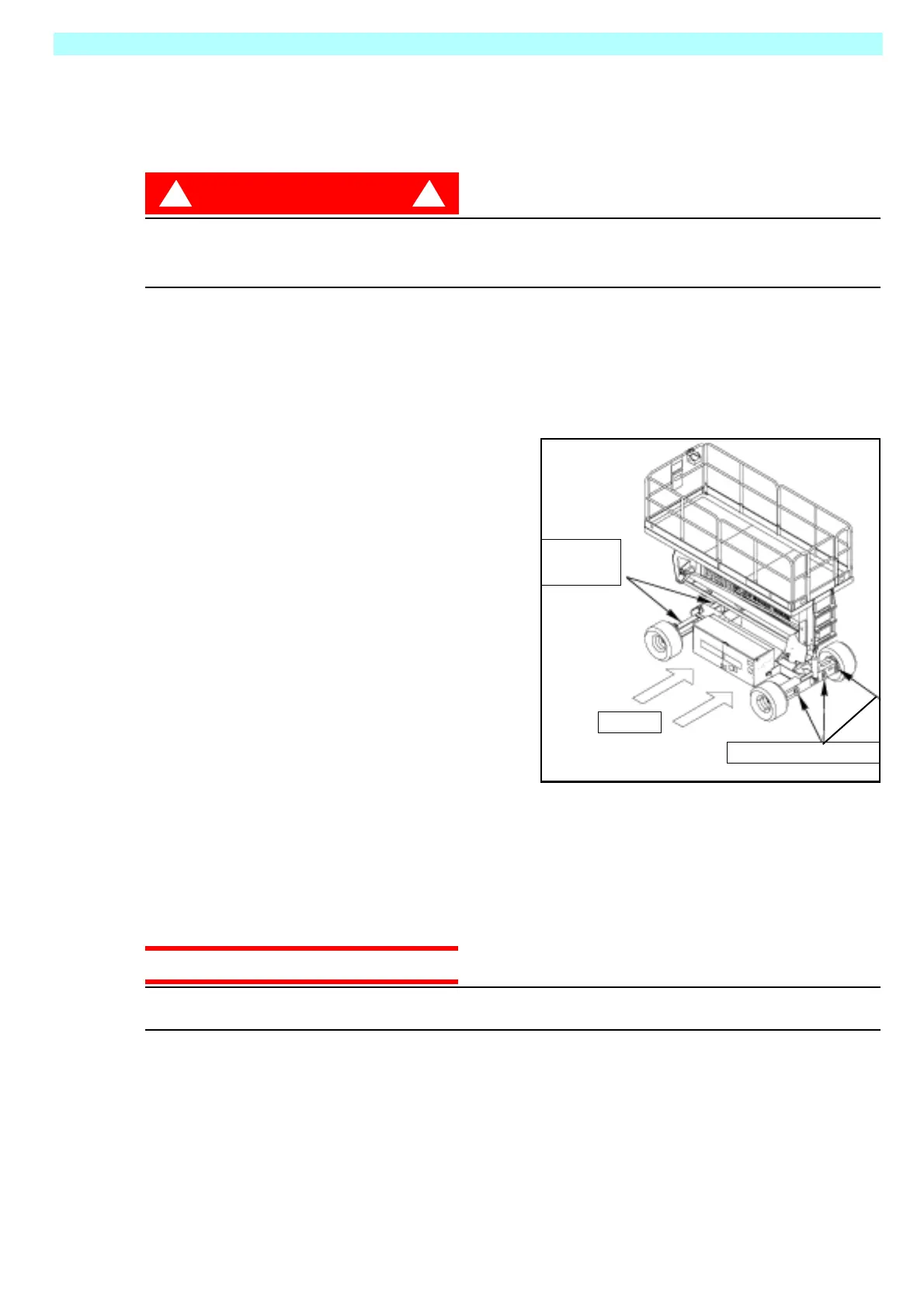

Figure 7: Transporting the Work Platform
NOTE: Do not winch faster than 0,3 m/s (1 ft/s).
1. Move the machine onto the truck or trailer;
A. To Drive the machine onto the transport
vehicle:
a. Move the work platform up the ramp and
into transport position.
b. Set the wheels straight and turn off the
machine.
c. Chock the wheels.
B. To Winch the machine onto the transport
vehicle:
a. Move the work platform up to the ramp.
b. Attach the winch cable to the tie down/lifting
lugs.
c. Release the parking brakes (refer to
“Towing or Winching” on page 12).
d. Winch the platform into transport position
e. Chock the wheels.
2. Secure the work platform to the transport vehicle with chains or straps of adequate load
capacity attached to the chassis tie down/lifting lugs.
CAUTION
Overtightening of the chains or straps attached to the Tie Down/Lifting Lugs may result in
damage to work platform.
Forklift
Rear Tie Down/Lift Lugs
Front Tie
Down and
Lifting Lugs
