Upright SL26 Series User Manual

3. Service and Repair
3-9

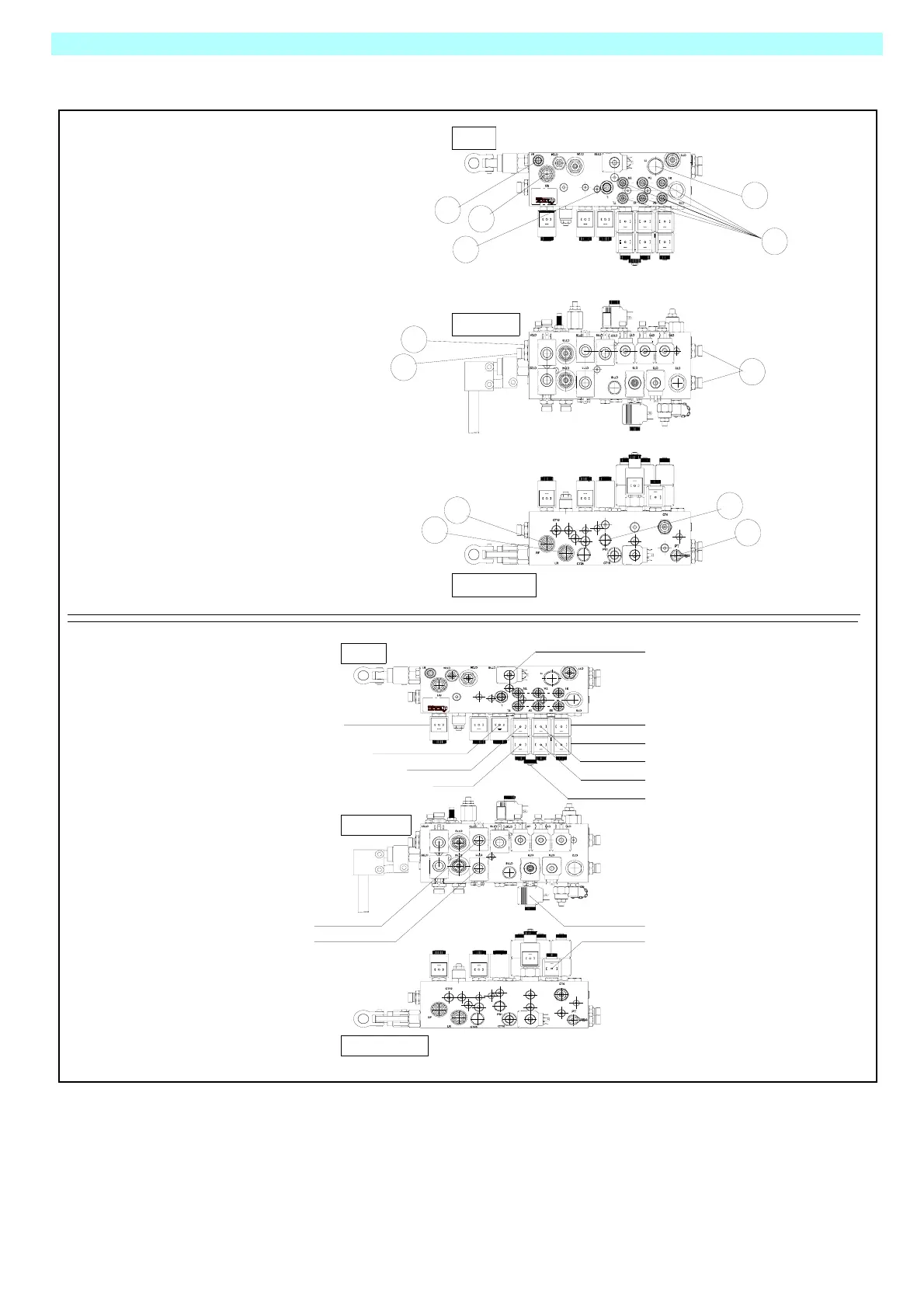

Figure 3-8: Hydraulic Manifold
TOP
FRONT
BOTTOM
LIFT COIL
STEER RIGHT
STEER LEFT
TILT AFT
TILT FORWARD
PROPORTIONAL
TILT LEFT
TILT RIGHT
CUSHION
HIGH SPEED
SERIES PARALLEL
DRIVE : FORWARD
DRIVE : REVERSE
LIFT DUMP
STEER DUMP
PART NUMBER
DATE CODE
CUSTOMER NUMBER
TOP
BOTTOM
FRONT
CUSTOMER NUMBER
PART NUMBER
DATE CODE
1
1
2
3
3
3
3
3
4
5
5
6
1. 1/4" BSP - C/W
MALE/MALE
FITTINGS Used on :
S1, S2, B1, TA, TF,
TR & TL
2. 3/8" BSP - C/W
MALE BULKHEAD
FITTING Used on : L
3. 1/2" BSP - C/W
MALE/MALE
FITTINGS Used on :
RR, RF, LF,LR, T &
P
4. 1/4" BSP - C/W
TEST POINT Used
on : PT
5. 1/4" BSP - C/W 1/4"
BSP PLUG Used on
PS1 & B2
6. 1/2" BSP - C/W 1/2"
BSP PLUG Used on
:T1
