Page 8 114100-000R1 X26 Ultra Narrow - Operator Manual
Operation
G
UARDRAILS

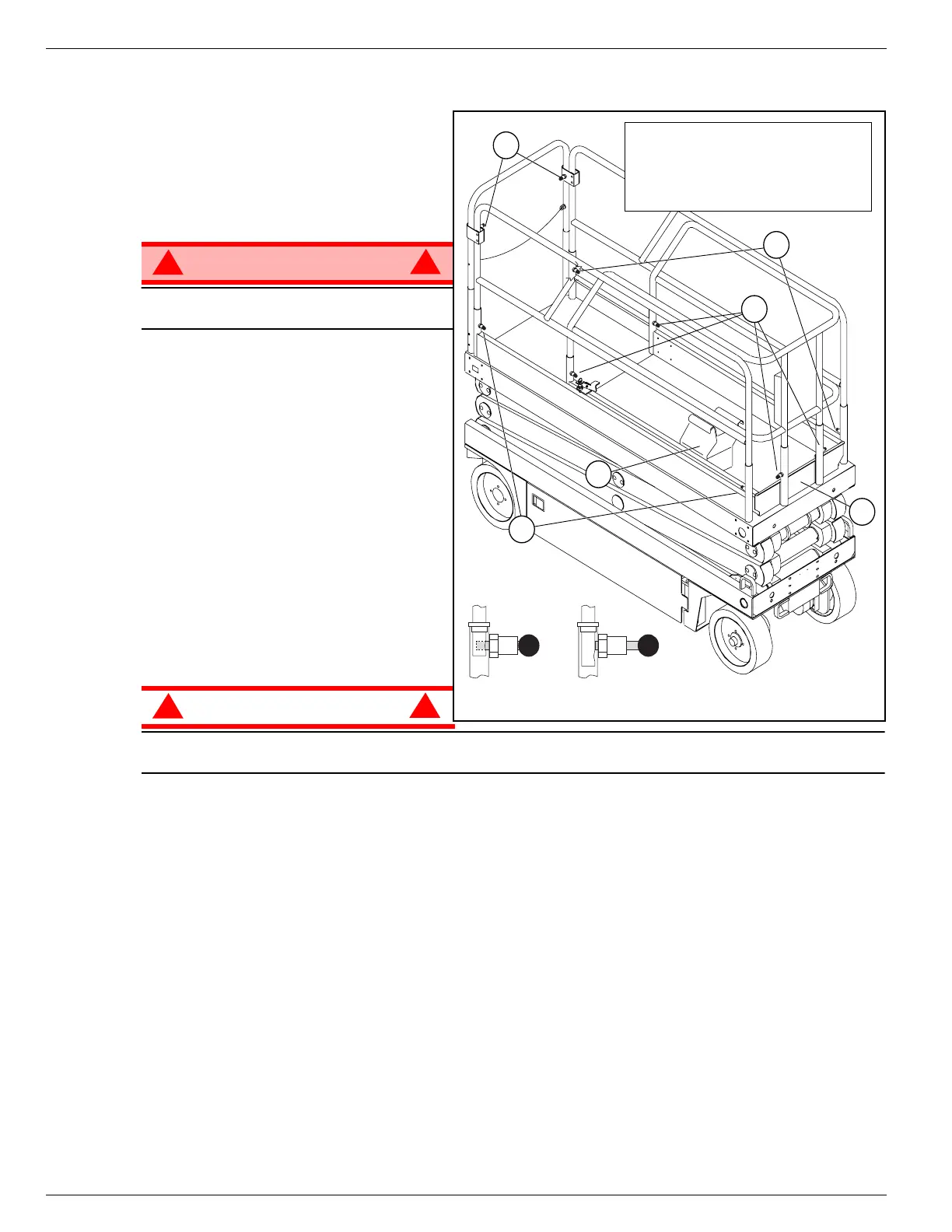

Figure 5:
Guardrails
The guardrails may be lowered for the
purpose of passing through a standard
doorway.
Guardrails must be returned
to proper position before using the
machine.
WARNING
!
!
DO NOT use the machine if all guardrails
are not properly in place and secured.
L
OWERING
P
ROCEDURE
1. Ensure that the platform extension is
fully retracted and the deck lock pin is
engaged (see “Platform Extension” on
page 6).
2. Place the Platform Controls on the
deck of the platform extension.
3. Lower the platform extension guard-
rail;
a. Pull to retract the retaining pins.
• As the retaining pin is pulled, the
rail will drop slightly and hold the
pin in the retracted position.
b. Hold the midrail with one hand as
you retract the final retaining pin.
CAUTION
!
!
The guardrail could drop suddenly when the final retaining pin is retracted. Keep hands away from the
slide tubes to prevent injury.
c. Push down on the platform extension guardrail to lower it completely.
• The retaining pins will remain in the retracted position.
4. Lower the side guardrails and rear guardrail as a single unit;
• Repeat steps 3a through 3c.
5. Lower the rear top-rail;
• Pull the two retaining pins and lower the rear top-rail completely.
R
AISING
P
ROCEDURE
1. Raise the side guardrails and rear guardrail as one unit;
• Pull up on the side guardrails and raise them until all the retaining pins engage.
2. Raise the rear top-rail;
• Pull up on the rear top-rail until the retaining pins engage.
3. Raise the platform extension guardrail;
• Pull up on the platform extension guardrail and raise it until all the retaining pins engage.
4. Hang the controller on the platform extension guardrail.
1
2
3
4
5
4
1. Platform Extension
2. Platform Controls
3. Platform Extension Retaining Pins
4. Side-rail Retaining Pins
5. Rear Top-rail Retaining Pins
Engaged Retracted
