Upright X20W Service Manual

Hydraulics Section 2 - Service and Repair
Page 2-18 114101-000 X26 Ultra Narrow - Service Manual
2-7 H YDRAULICS
H YDRAULIC F LUID R ESERVOIR AND F ILTERS
F
LUID
L
EVEL
Check the fluid level daily.
With the platform fully lowered, open the control module and remove the reservoir breather/cap. Fluid
should be at the full mark.
CAUTION
!
!
The hydraulic fluid may be of sufficient temperature to cause burns. Wear safety gloves and safety
glasses when handling hot fluid.
R
ESERVOIR
B
REATHER
/C
AP

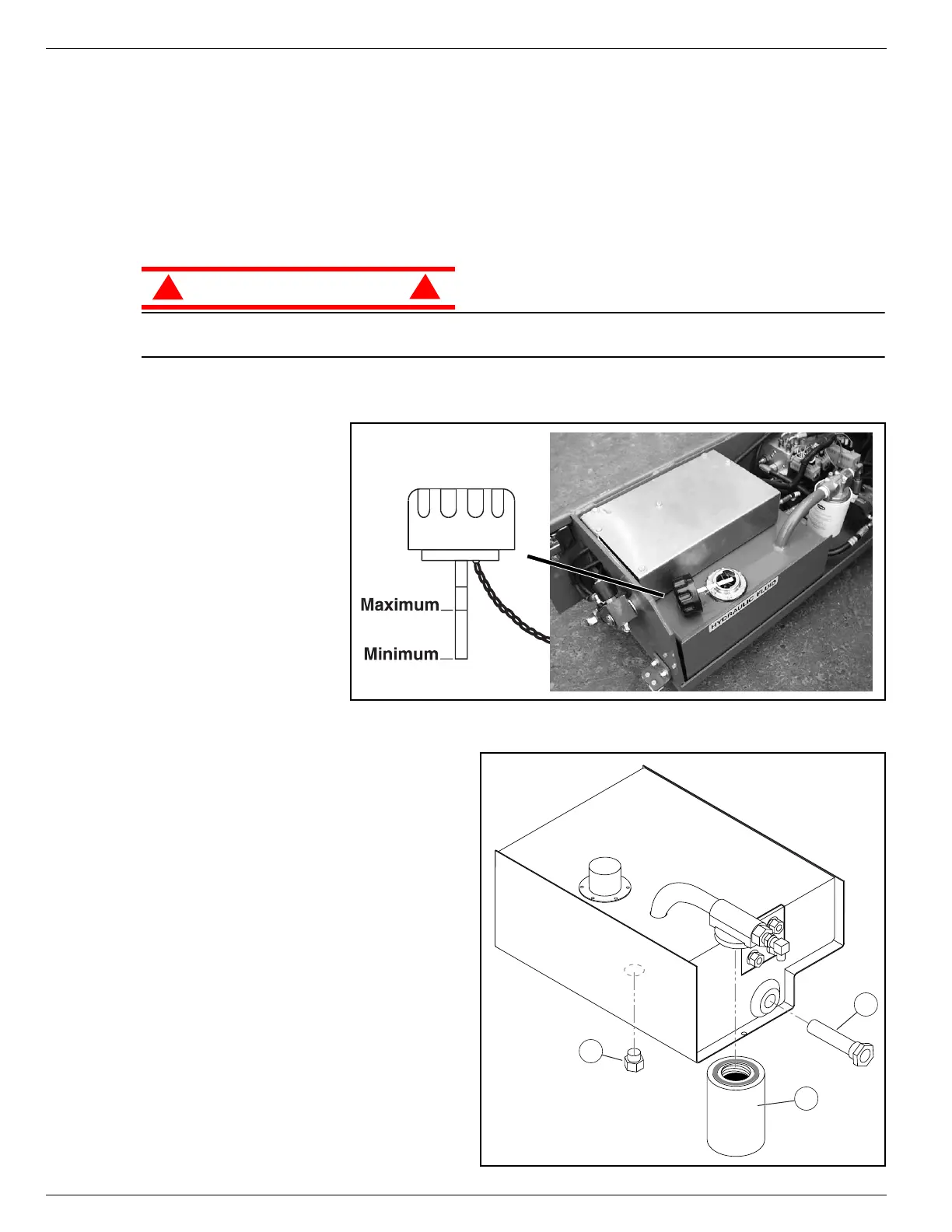

Figure 2-12:
Hydraulic Reservoir
Clean the breather/cap at
the same time that the
fluid filter is replaced. Use
cleaning solvent and blow
dry with clean dry com-
pressed air.
F
ILTER
R
EPLACEMENT
Figure 2-13:
Fluid Filter
Replace the filter every 250 hours or six
months.
1. Unscrew the filter from the filter assembly.
2. Apply a thin film of clean hydraulic fluid to
the gasket of the replacement filter.
Screw the replacement filter onto the filter
head until the gasket makes contact, then
turn the filter ¾ of a turn further.
3
2
1
1. Drain Plug
2. Filter
3. Suction Screen
