Upright X20W Service Manual

Section 4 - Schematics Hydraulics
114101-000 X26 Ultra Narrow - Service Manual Page 4-11

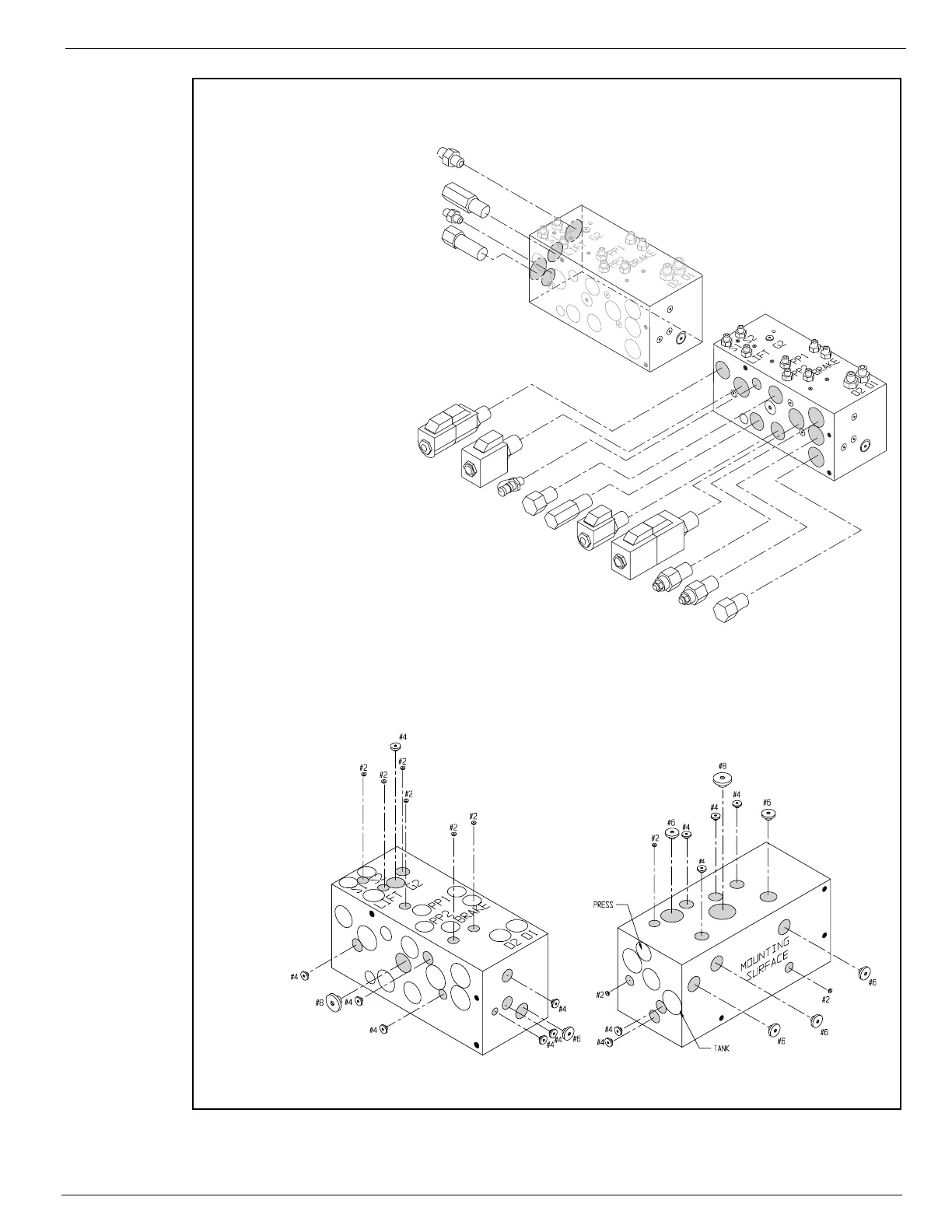

Figure 4-10:
Hydraulic Manifold Components
Counterbalance Valve -- V6
Counterbalance Valve --V6
Drive Solenoid and Valve
SOL4A, SOL4B, V4
Depression Mechanism Solenoid and Valve
SOL3A, V3A
Main Relief Valve -- RV3
Check Valve -- CV
Lift Solenoid and Valve
Sol2A, V2A
Steering Solenoid and Valve
Sol1A, Sol1B, V1
Fitting
Flow Divider Valve -- DVR1
Steering Relief Valve -- RV1
Fitting
High Pressure Test Port
Lift Relief Valve--RV2
TOP VIEW BOTTOM VIEW
