Section 2 - Service and Repair Cylinders

114101-000 X26 Ultra Narrow - Service Manual Page 2-31

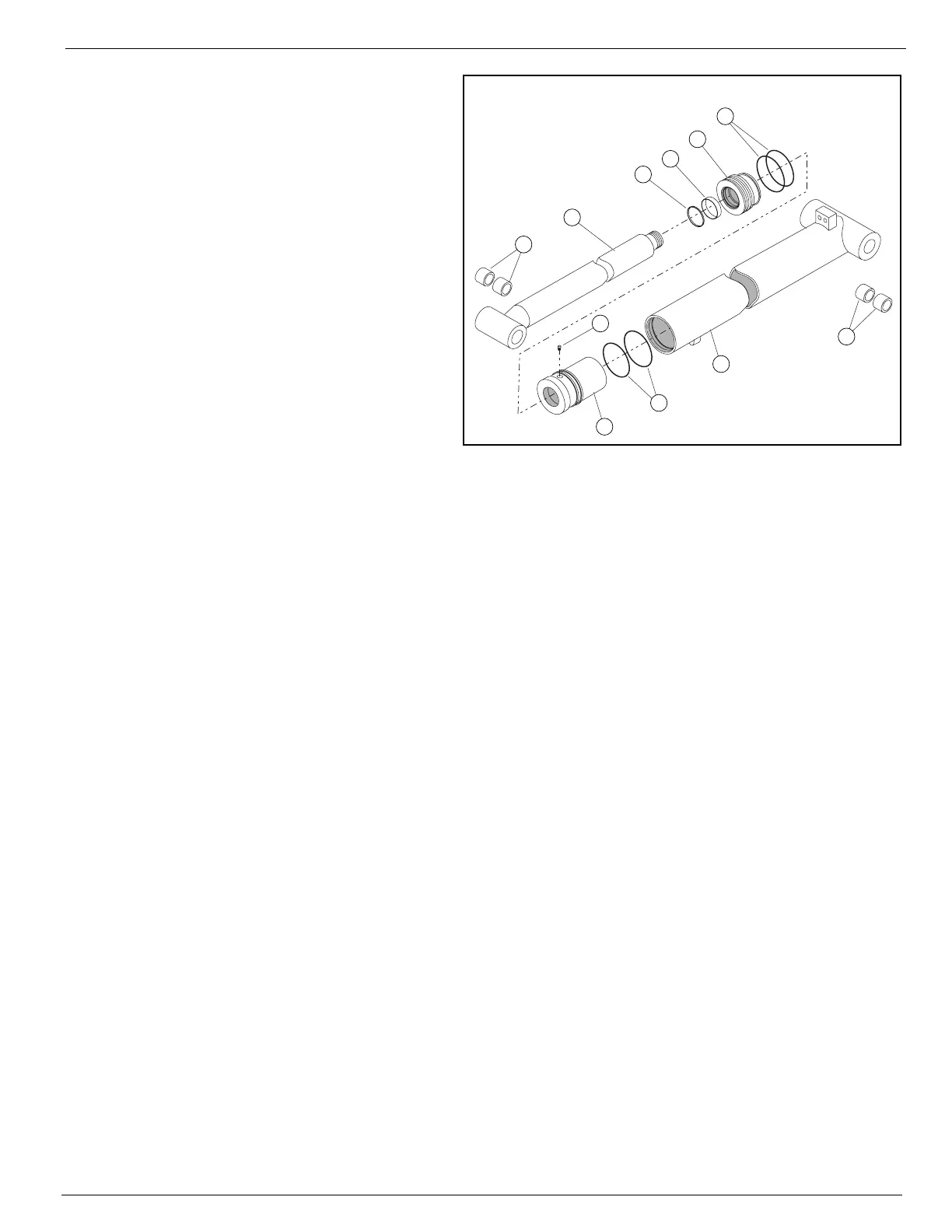

Figure 2-26:

Lift Cylinder Assembly

NSTALLATION

1. Attach a suitable hoisting device and

sling to the cylinder. Carefully position

the cylinder into the elevating assem-

bly and install the upper lift cylinder

pin.

2. Install a new roll pin.

3. Carefully lift the cylinder and align the

lower mount and install the lift cylin-

der pin. Make sure the locking pin is

properly installed, then install the

retaining ring.

4. Connect the Emergency Lowering

Valve cable and electrical connec-

tions.

5. Unplug and attach the hydraulic

hoses to the cylinder.

6. Connect the negative battery lead.

7. Connect the battery pack connector.

8. Check the fluid level in the hydraulic reservoir before operating the machine.

9. Test with weight at rated platform load to check system operation. Check for leaks and level of fluid.

A. Rod

B. Thread Cap Head

C. Piston

D. Barrel

E. Bronze Bushings

F. Set Screw

Seal Kit includes:

1. Wiper

2. Seal

3. O-Ring
