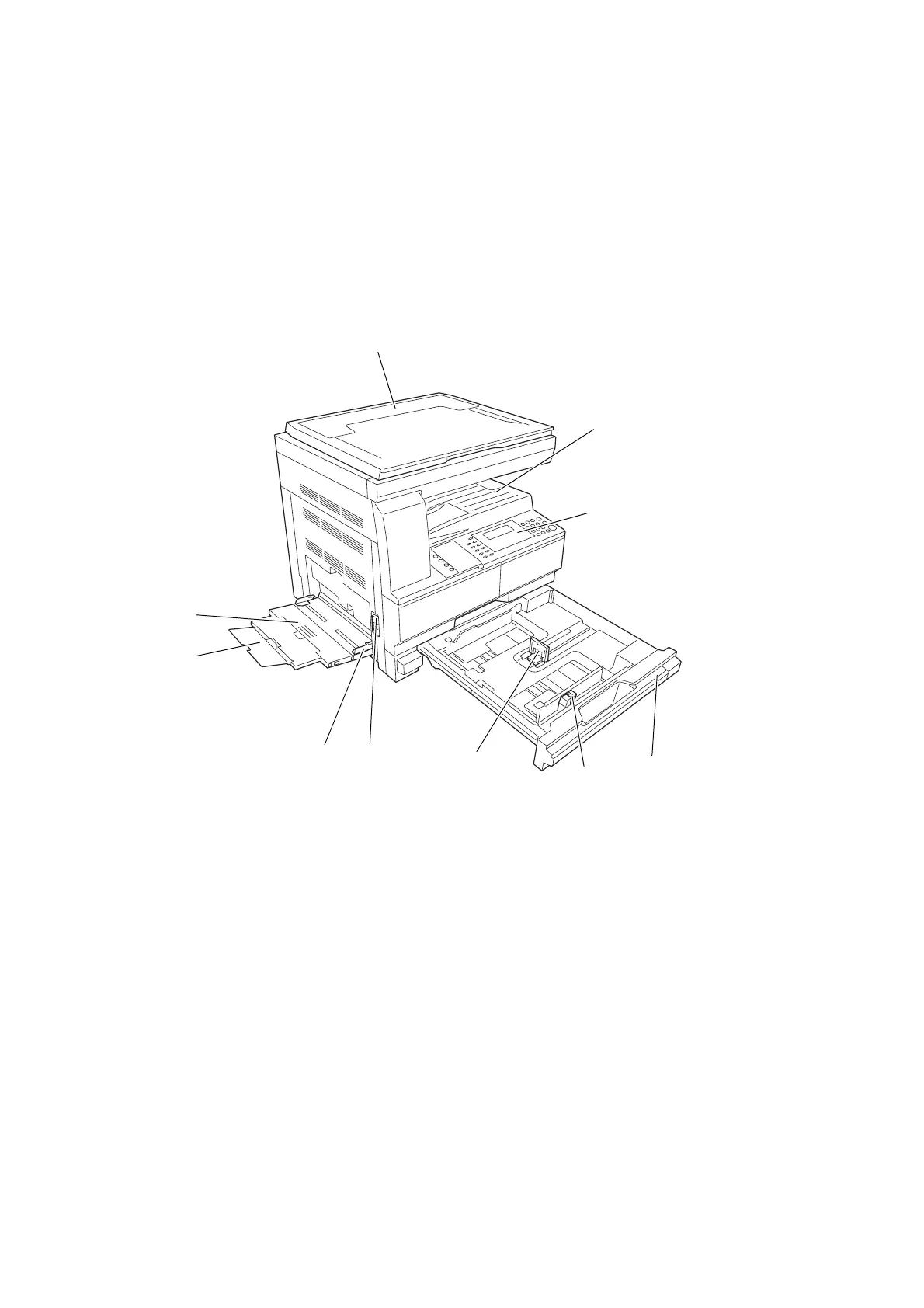

1 Names of Parts
Main Body
1 Original cover — Open/close this cover when setting the original on the platen.
2 Output tray — Finished copies or printouts are stored on this tray. The output tray has a
storage capacity of 250 sheets of standard paper (80 g/m²).
3 Operation panel — Perform operations from the main body here.
4 Cassette — This cassette has a storage capacity of 300 sheets of standard paper (80 g/m²).
5 Paper width adjusting tab — Use this tab to adjust the paper width guides to fit to the width of
the paper to be loaded in the cassette.
6 Paper length adjusting tab — Adjust this tab to adjust the paper length guide to fit to the
length of the paper to be loaded in the cassette.
7 Left cover handle — Pull this handle up to open the left cover.
8 Multi-purpose tray — When using small paper or special paper, set the paper here.
9 MP tray extension — Pull this to use when setting A4R paper or larger paper.
10 Slider — Adjust this to fit to the width of paper to be set in the multi-purpose tray.
1
2
3
7
8
9
10
6
5
4
