Utax P-C2660DN - Page 116

To Next Page

To Previous Page

2PS/2PT

1-5-23

7. Remove the intermediate transfer unit.

8. Check or replace the intermediate

transfer unit and refit all the removed

parts.

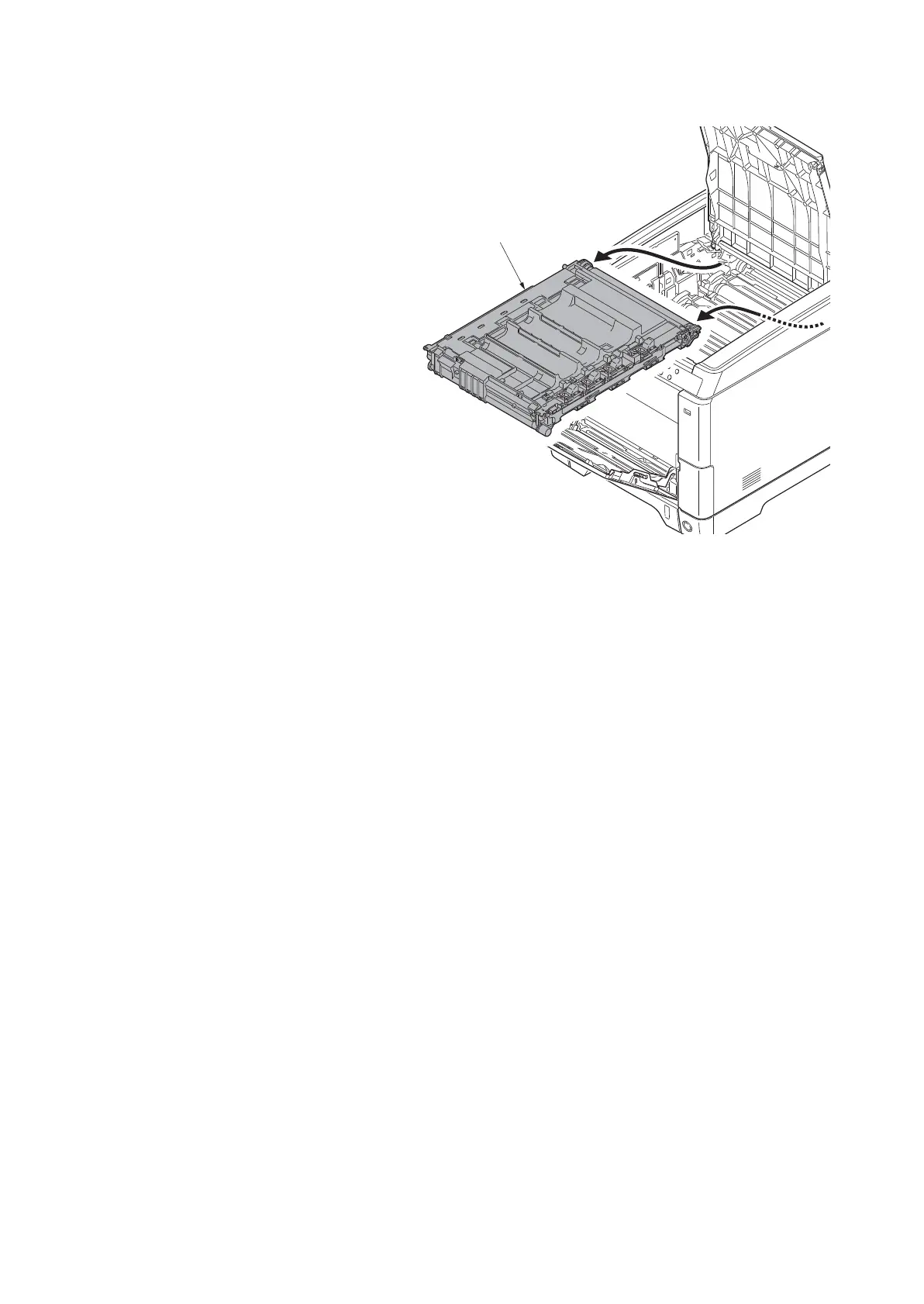

Figure 1-5-33

Intermediate

transfer unit
