2PS/2PT

1-5-3

1-5-2 Outer covers

(1) Detaching and refitting the top cover

Procedure

1. Open the paper conveying unit.

2. Release the hook and then remove the

IF cover.

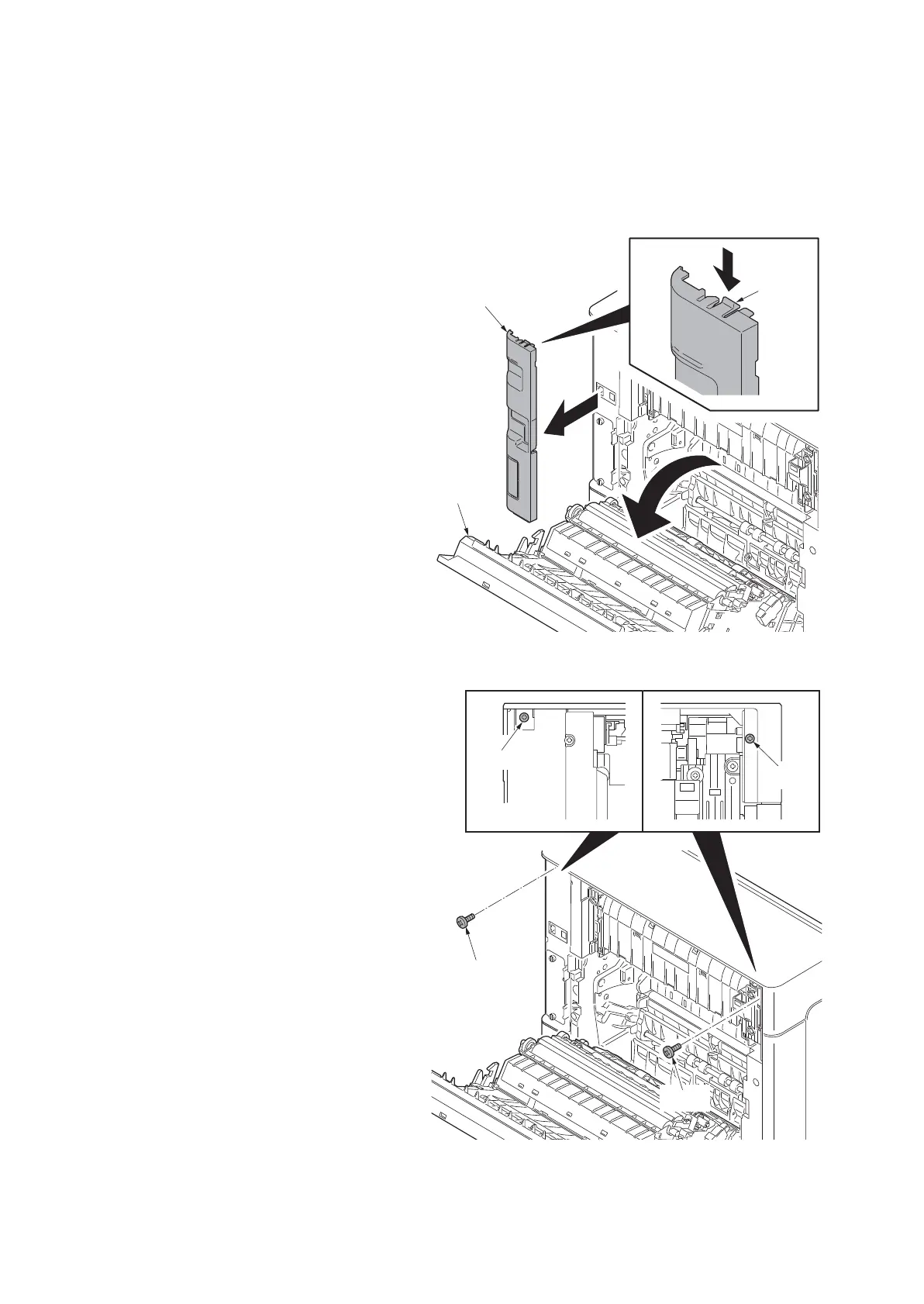

Figure 1-5-3

3. Remove two screws.

Figure 1-5-4

IF cover

Paper

conveying

unit

Hook

Screw
