Utax P-C2660DN Service Manual

2PS/2PT
1-5-36
(2) Detaching and refitting the drum/developing drive unit
Procedure
1. Remove drum units (K, M, C, Y) and
developing units (K, M, C, Y) (see page
1-5-20, 1-5-18).
2. Remove the top cover (see page 1-5-3).
3. Remove the left rear cover, left cover
and left lower cover (see page 1-5-8).
4. Remove the engine PWB (see page 1-
5-26).
5. Remove the screw and release the
hook, and then remove the developing
fan unit.

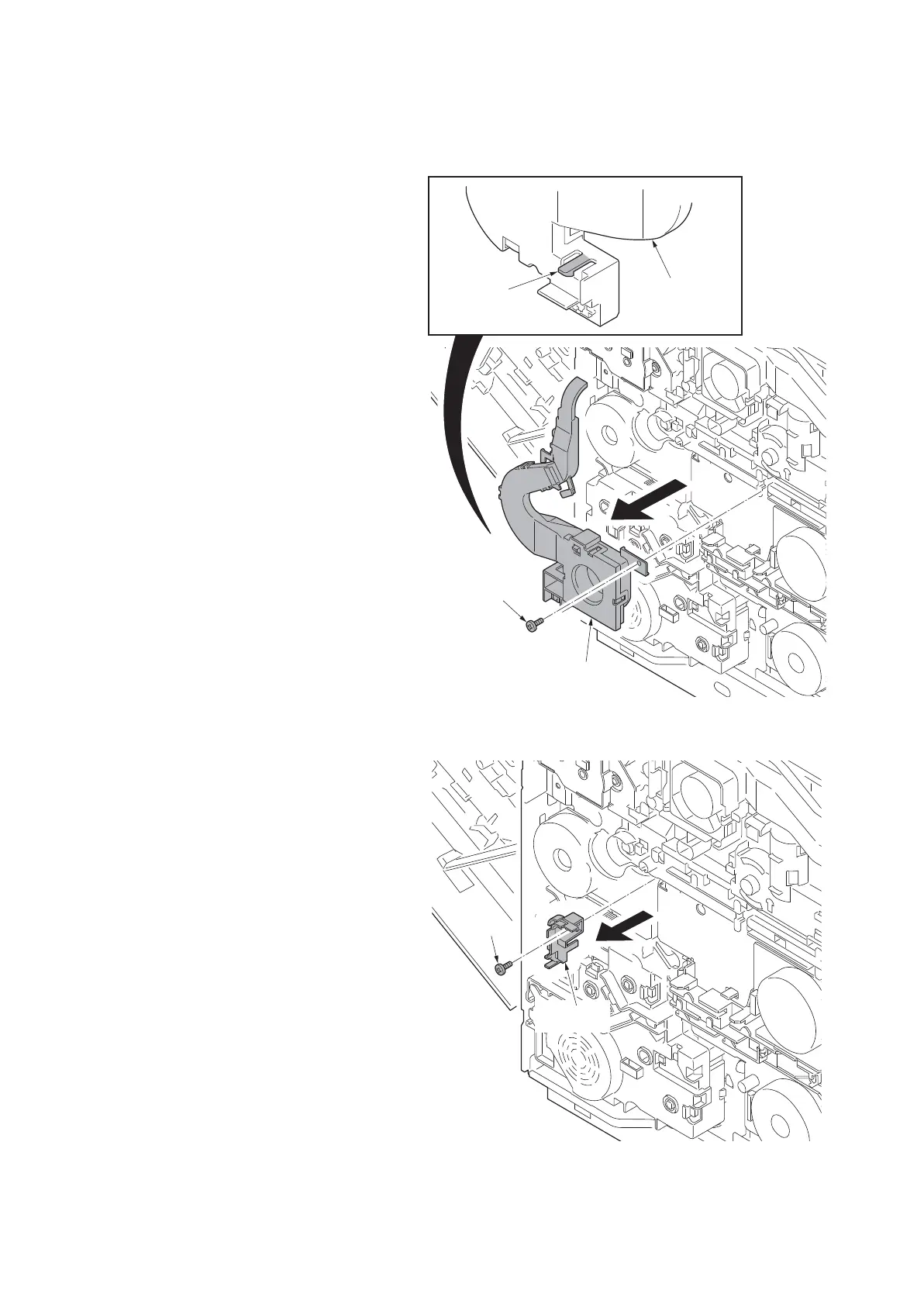

Figure 1-5-54
6. Remove the screw and then remove the
ID guide.
Figure 1-5-55
Screw
Hook
Developing
fan unit
Developing
fan unit
Screw
ID guide
