Utax P-C2660DN Service Manual

2PS/2PT
1-5-43
1-5-10 Optical section
(1) Detaching and refitting the laser scanner unit
Procedure
1. Remove the intermediate transfer unit
(see page 1-5-21).
2. Remove drum units (K, M, C, Y) and
developing units (K, M, C, Y) (see page
1-5-20, 1-5-18).
3. Remove the top cover (see page 1-5-3).
4. Remove the left rear cover and left
cover (see page 1-5-8).

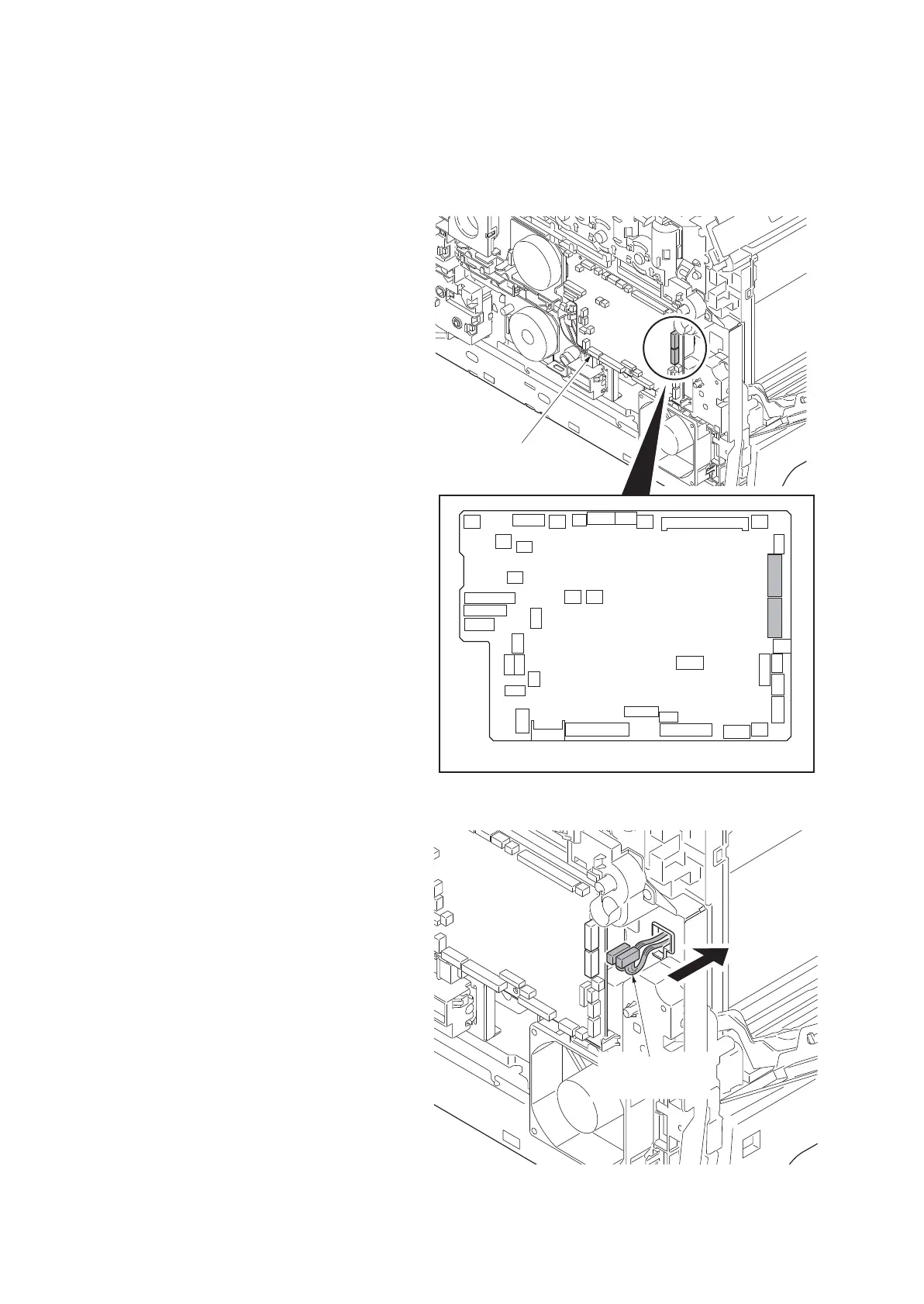

5. Remove two connectors (YC32, YC32)
from engine PWB.
Figure 1-5-64
6. Draw two connectors (YC31, YC32)
into the machine inside.
Figure 1-5-65
YC31
YC32
Engine PWB
Engine PWB
Connector
(YC31, YC32)
