1-2-4 Installing the SSD (option for 26/28 ppm model only)
Procedure
1. Turn off the main power switch.
Caution: Do not insert or remove SSD
while machine power is on.
Doing so may cause damage to the
machine and the SSD.
2. Remove the IF cover.
3. Remove two pins and then remove the
slot cover.

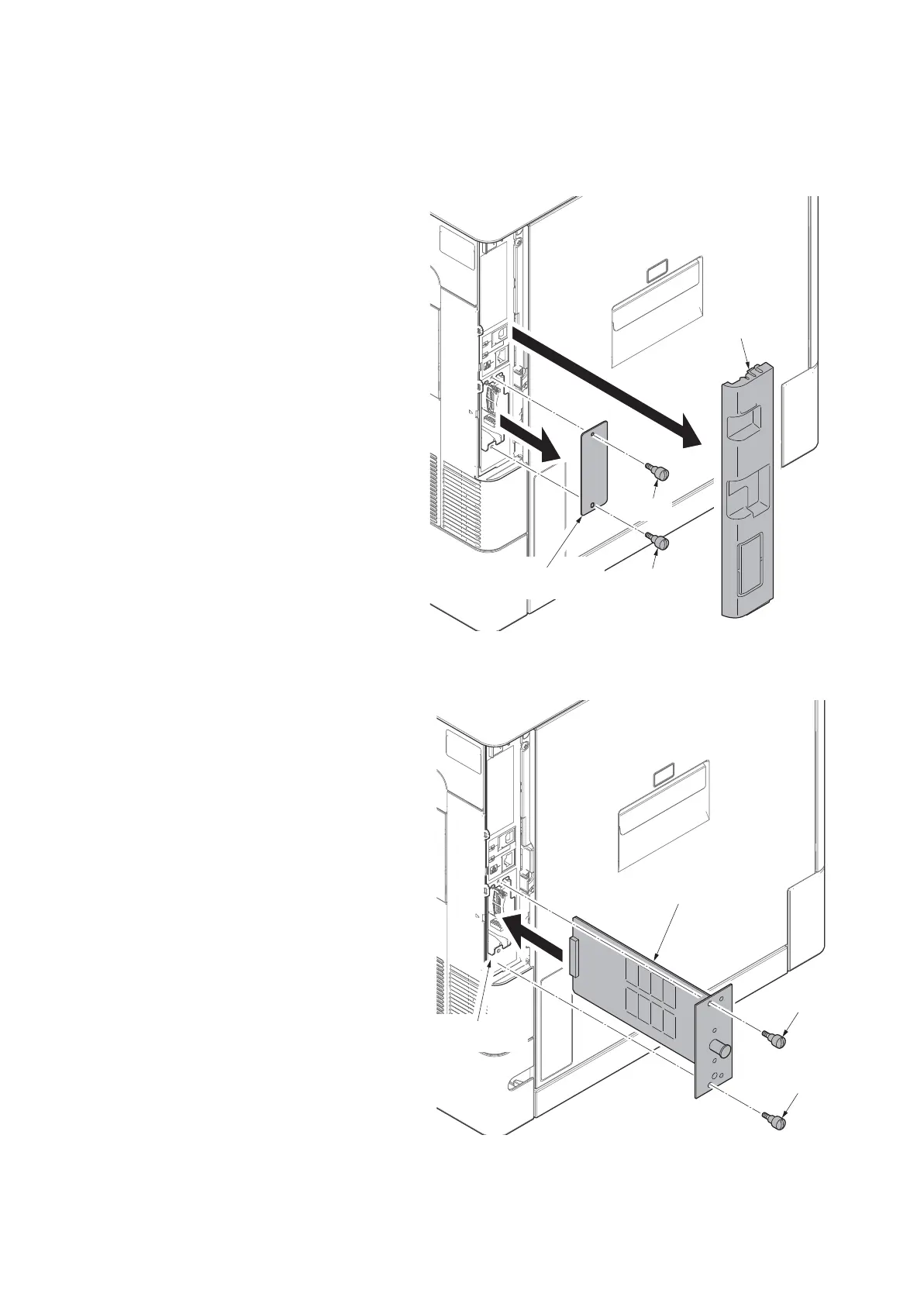

Figure 1-2-18
4. Insert the SSD into the interface slot.
5. Secure the SSD by using two pins.
Figure 1-2-19
Pin
Pin
IF cover
Slot cover
Pin
Pin
SSD
Interface slot
