Utax P-C2660DN Service Manual

2PS/2PT
1-5-26
1-5-8 PWBs
(1) Detaching and refitting the engine PWB
Procedure
1. Remove the top cover (see page 1-5-3).
2. Remove the left rear cover and left
cover (see page 1-5-8).
3. Remove all connectors from the engine
PWB.

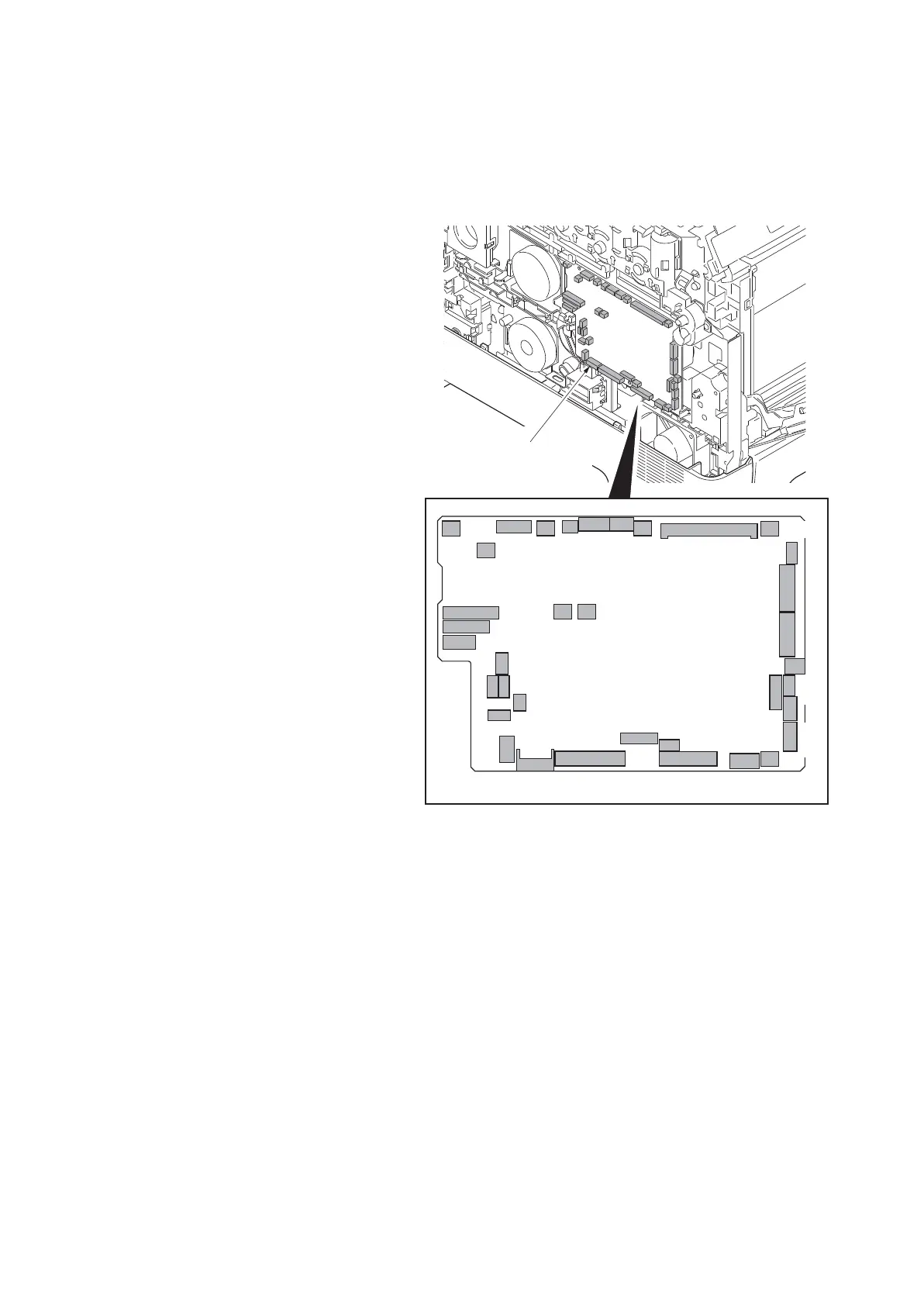

Figure 1-5-37
YC23
YC40
YC3
YC14
YC21
YC8
YC9
YC34
YC27
YC33
YC17
YC29
YC18
YC6
YC7
YC36
YC35
YC13
YC19
YC24
YC38
YC15
YC37
YC25
YC11
YC12
YC31YC32
YC4
YC20
YC10
YC26
YC42
YC16
YC28YC30
Engine PWB
Engine PWB
