(2) Cassette paper feed section (26/28 ppm model)
The cassette can contain 500 sheets. The sheet from the cassette is pulled out by rotation of the pickup roller
and sent to the paper conveying section by rotation of the paper feed roller. Also the retard roller prevents mul-
tiple feeding of paper.

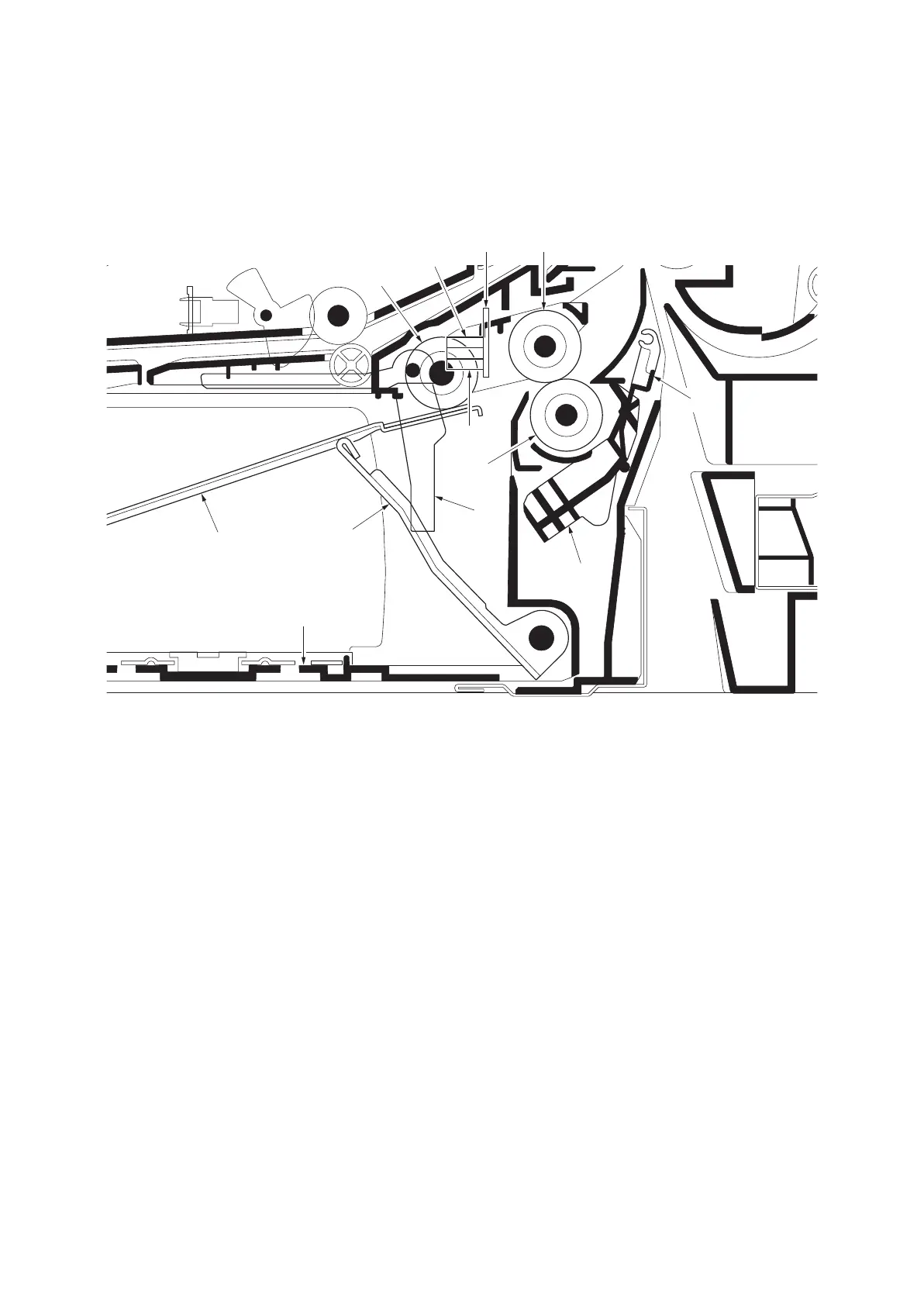

Figure 2-1-2 Cassette paper feed section (26/28 ppm model)
1
11
7
12
3
4
9,10
13
2
8
6
5
1. Pickup roller
2. Paper feed roller
3. Retard roller
4. Retard cover
5. Paper hook
6. Cassette base
7. Bottom plate
8. Lift work plate
9. Paper sensor 1 (PS1)
10. Paper sensor 2 (PS2)
11. Actuator (paper sensor)
12. Lift sensor (LS)
13. Cassette PWB (CPWB)
