Utax P-C2660DN Service Manual

2PS/2PT
1-5-49
(3) Detaching and refitting the power source inlet
Procedure
1. Remove the power source PWB (see
page 1-5-28).

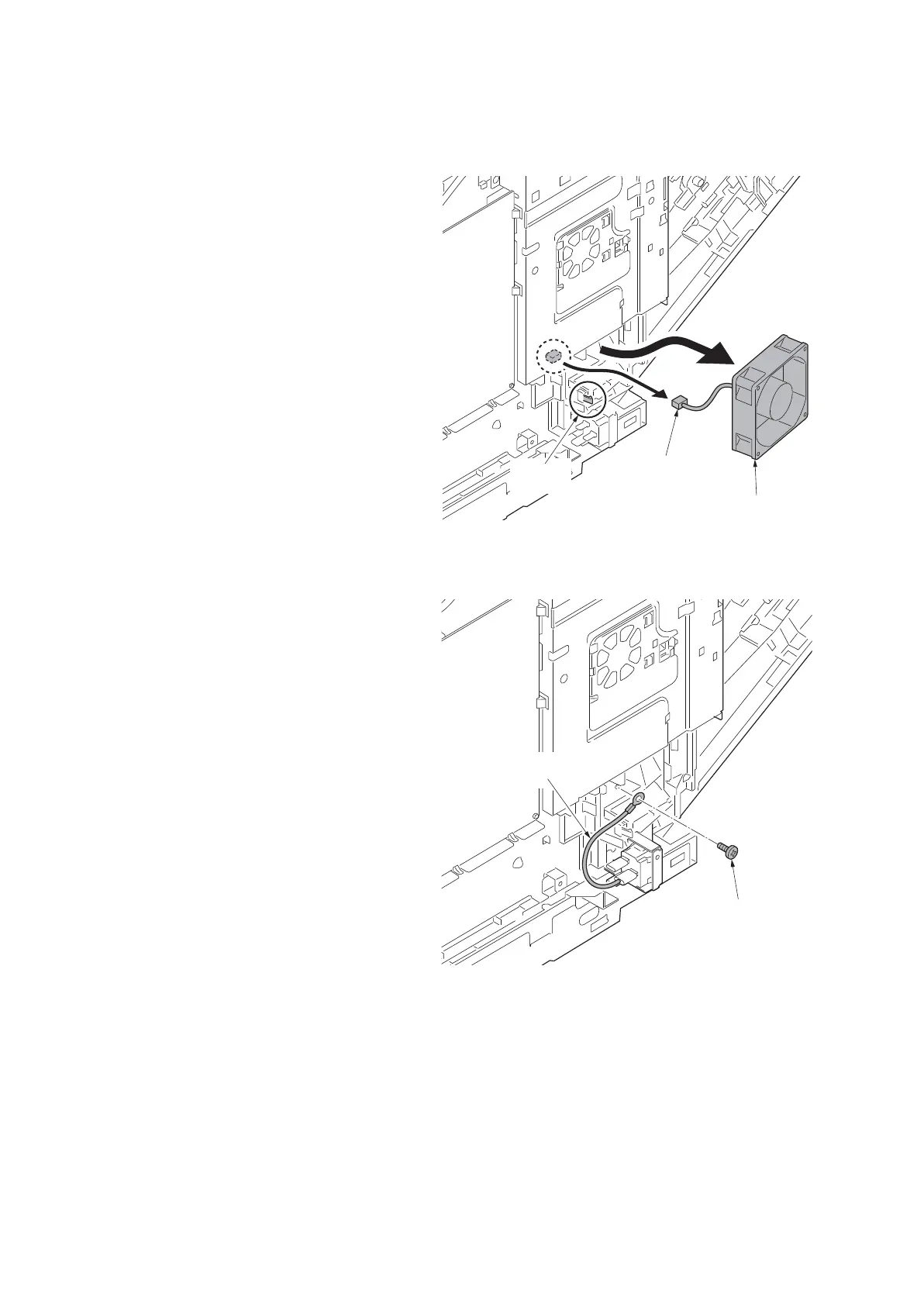

2. Remove the connector and release the
hook and then remove the right fan
motor.
Figure 1-5-73
3. Remove the screw of the grounding
wire.
Figure 1-5-74
Right fan moto
r
Connector
Hook
Screw
Grounding wire
