2PS/2PT

1-5-46

1-5-11 Others

(1) Detaching and refitting the paper conveying unit

Procedure

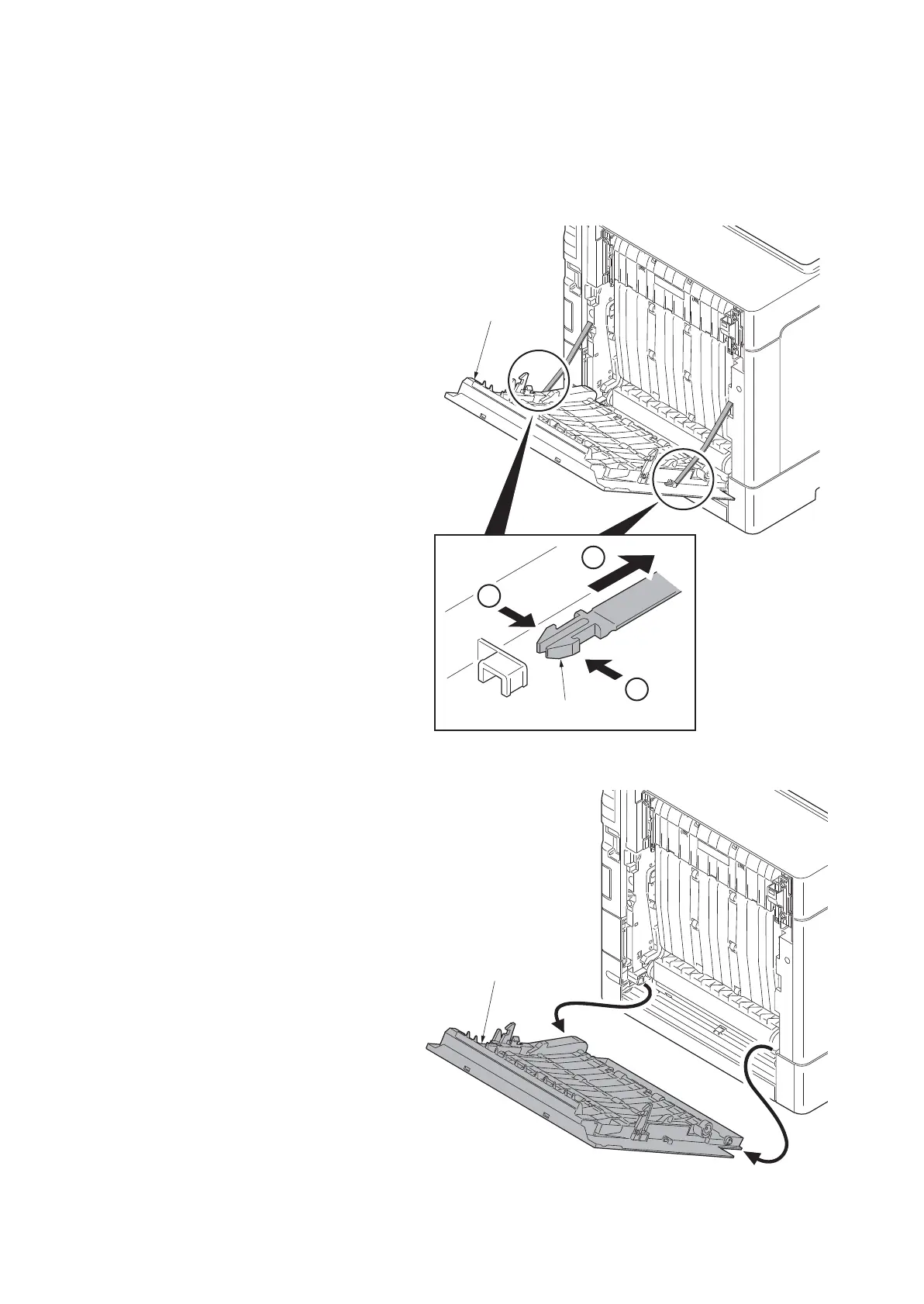

1. Open the rear cover.

2. Remove left and right straps.

Figure 1-5-69

3. Remove the rear cover unit.

Figure 1-5-70

Rear cover

Strap

Rear cover unit
