2PS/2PT
1-5-42

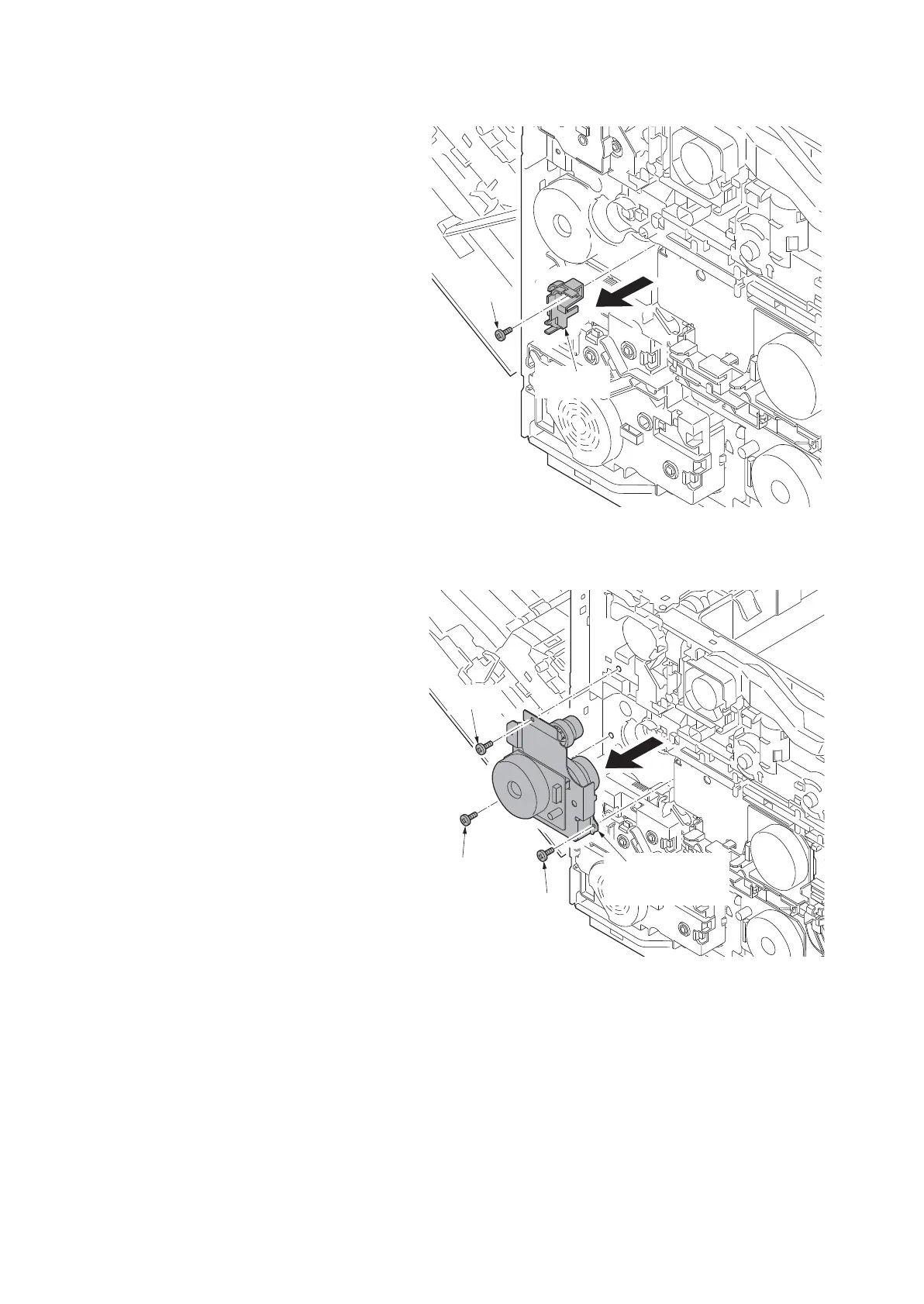

6. Remove the screw and then remove the
ID guide.
Figure 1-5-62
7. Remove three screws and then remove
the middle transfer drive unit.
8. Check or replace the middle transfer
drive unit and refit all the removed
parts.
Figure 1-5-63
Screw
ID guide
Screw
Screw
Middle transfer
drive unit
Screw
