2PS/2PT
1-5-44
7.
Remove the right rear co
ver
, right cover
and right lo
wer cover (s
ee page 1-5-5).
8.
Remove the controller shield (see page
1-5-29).
9.
Remo
ve two conn
ec
tors (YC2, YC3)
from main PWB.

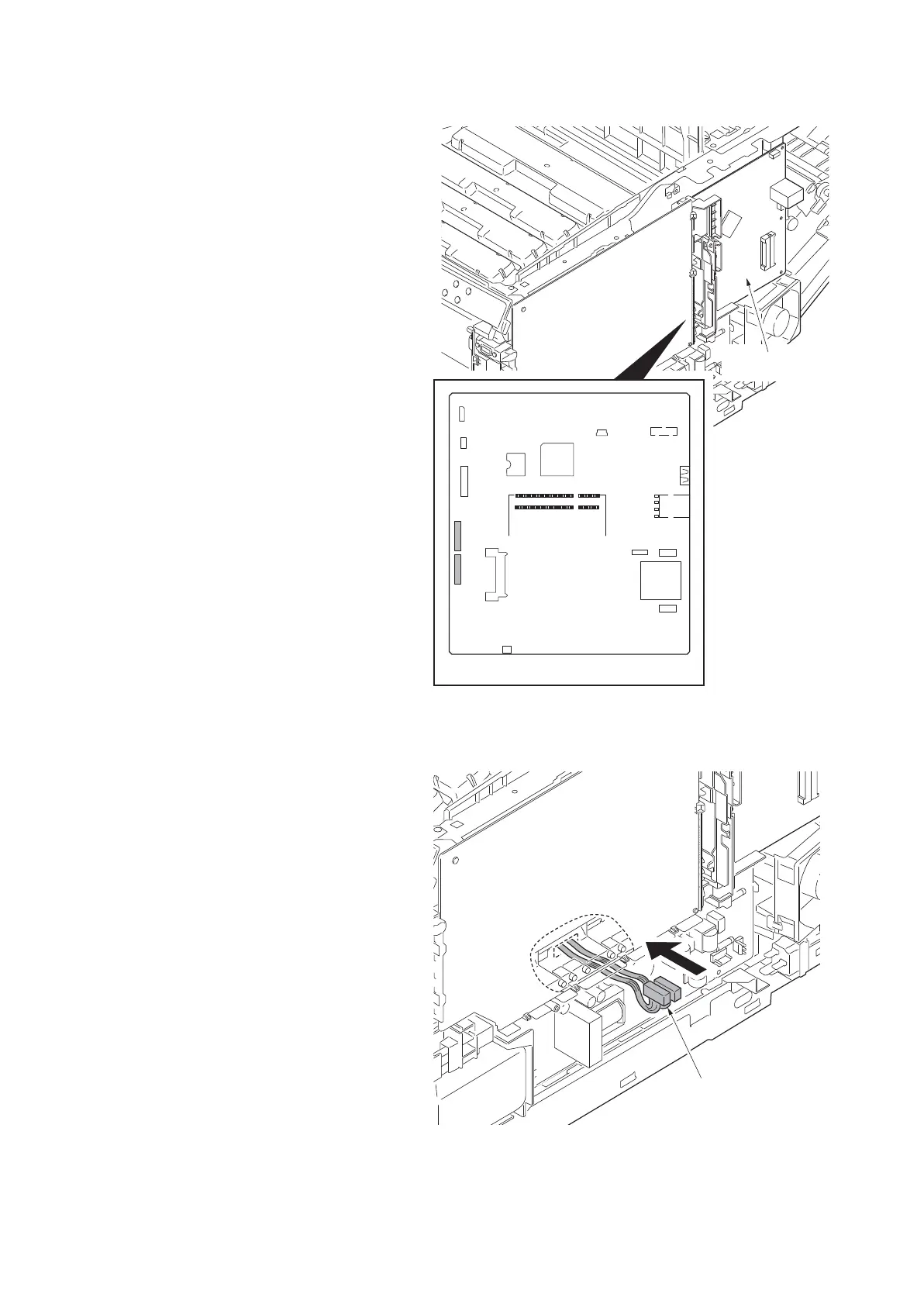

Figure 1-5-66
10.
Draw two connectors (YC2, YC3) into
the machine inside.
Figure 1-5-67
YC2
YC3
Main PWB
Main PWB
Connector
(YC2, YC3)
136
138
