MAIN CIRCUIT Service Manual M4 - M10
29.12.1999 Page 76

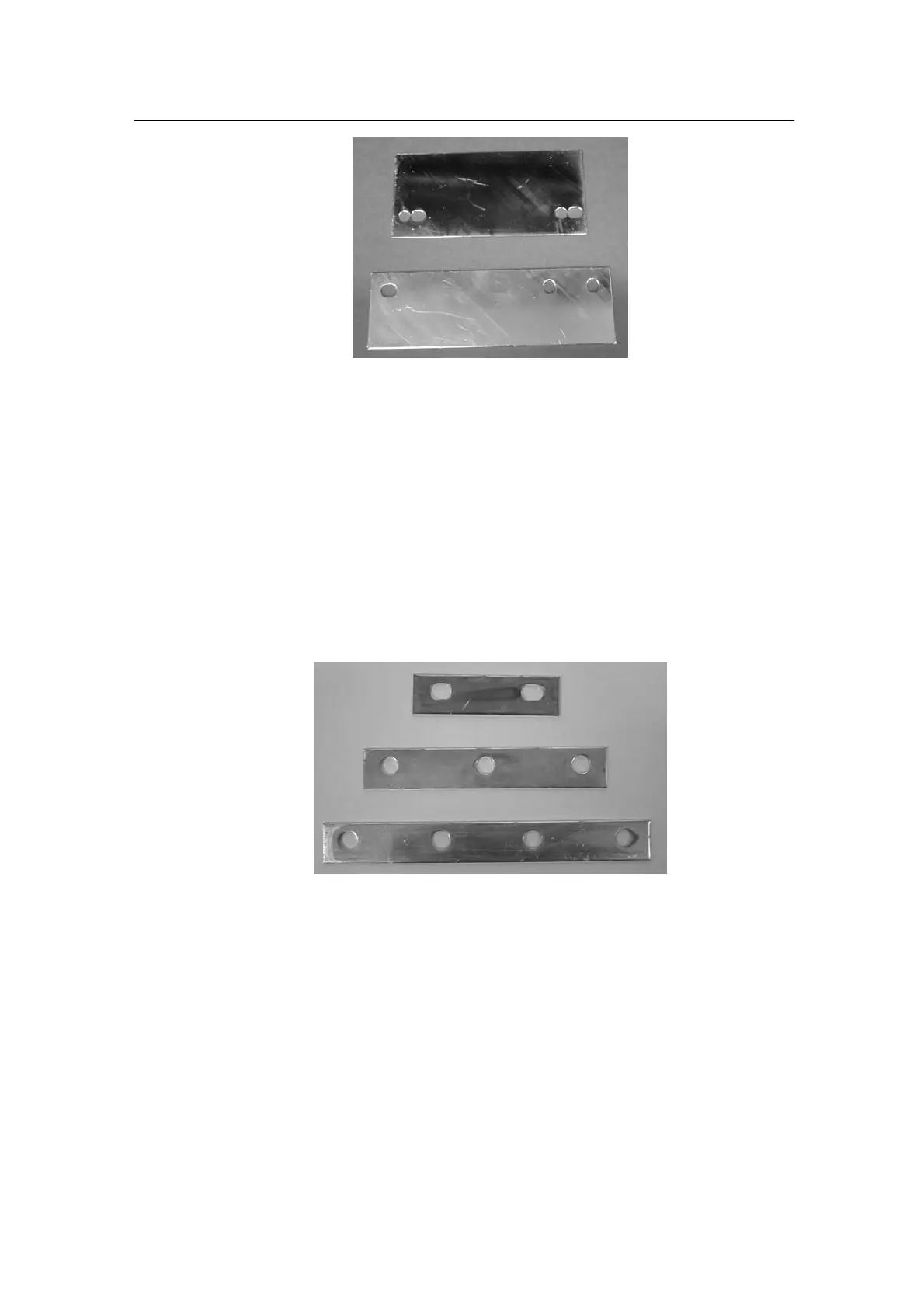

Picture 8.6.1.11. Bus bar links between DC capacitors, 690V
MC09038 (upper); M9 and M10
MC10026 (lower); M10
8.6.2 Input Terminals
Interconnection bus bars are connected between DC+ bus bars. This link
combines single DC links parallel. Bus bars are used to end of year 1999.
Beginning of year 2000 DC+ terminals are replaced with wider model where
all DC+ wires are connected.
Older model’s interconnection is not done. Recommended to add during
service. This action smooth current sharing between sections.
Picture 8.6.2.1. Interconnection bus bar for DC+
MC08158 M8 (upper)
MC01062 M9 (middle)
MC10046 M10 (lower)
