Vacon CX Service Manual

PC BOARDS Service Manual M4 - M10
22.10.2001 Page 89
C29
C30
C32
C3 3
C35
C36
C3 8
C3 9
C41
C42
C44
D4
D5
D21
D22
D23
D24
H8
H10
H13
H15
R1 4
R21
R22
R2 3
R24
R25
R2 6
R27
R3 1
R3 3
R3 7
R38 R39
R41
R42
R4 4
R4 5
R4 9
R5 0
R5 1
R5 5
R56
R5 7
R6 1
R62
R63
R65
R66
R6 8
R6 9
R7 3
R7 4
R7 5
R7 9
R80
R8 1
R8 5
R86 R87
R89
R90
R9 2
R9 3
R1 17
V5V6
V8
V12V13
V15
V17
V21V22
V23
V24
V26
V28V2 9
V31
V33
V37V38
V39
V40
V42
V43
V44V45
V47
V49
V52
V61
X9
X10
X11
X12
X13
X1 4
Gate Resistors (Rx, Ry)
Values on table GATE.XLS
X9 = Gate U
X11 = Gate V
X13 = Gate W
Pin 1: emitter, lower leg DC-
Pin 2: gate, lower leg +/-15V
Pin 4: emitter, upper leg FLOATING!
Pin 5: gate, upper leg +/-15V
1
2
4
5

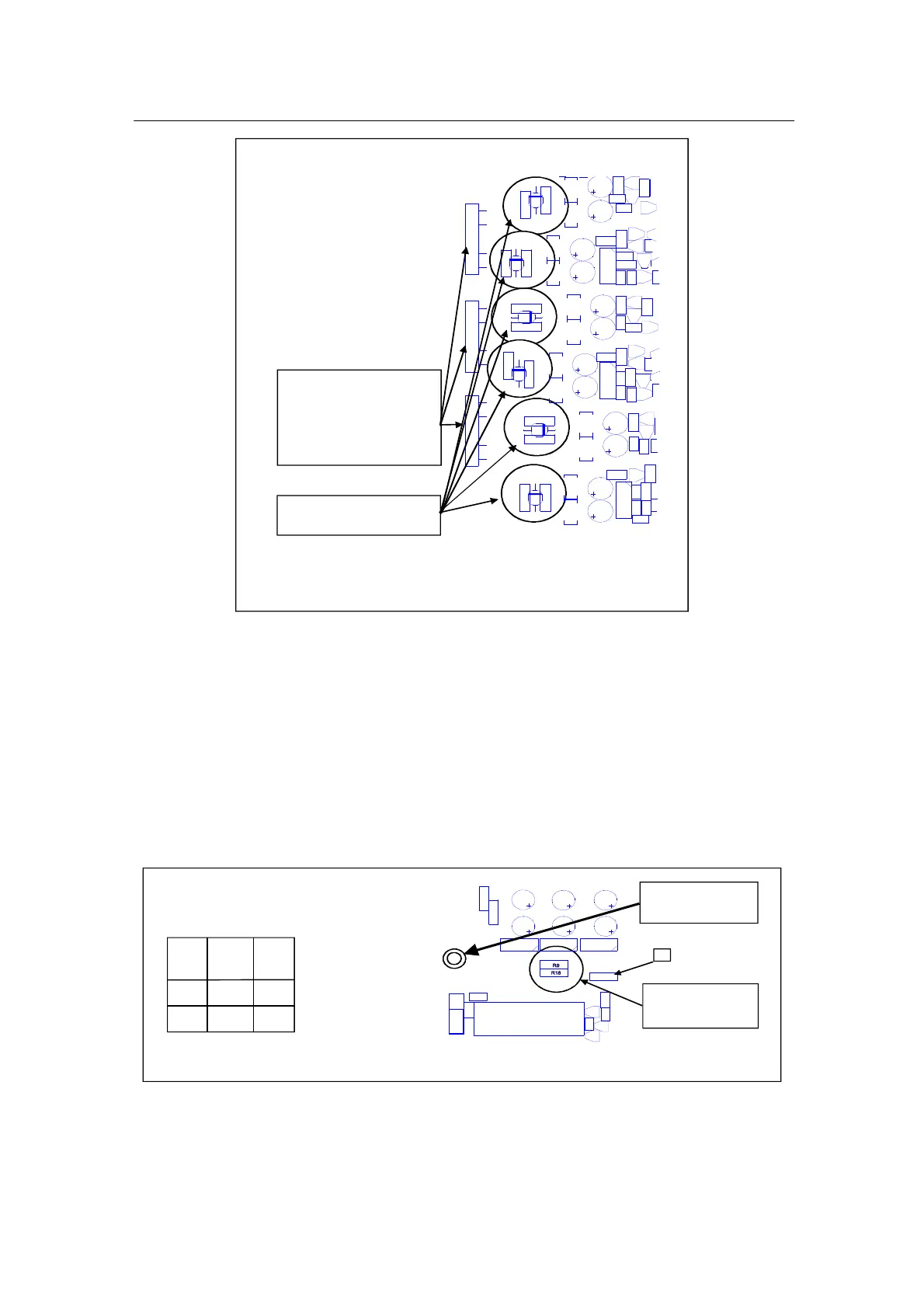

Gate resistors on the Power board.
9.2.6.3 Voltage related settings on the board
For reliable operation with various types of IGBTs in units, gate resistors have
to be selected according instructions as in section 9.2.6.2.
Voltage programming will be done by the resistors R9 and R19 according to
nominal voltage the board will be installed in. Both resistors are placed on the
board by manufacturer and in prior to determine usage, one of the resistors
has to be cut off.
R9 X O
R18 O X
400V 500V
X = CUT OFF
O = PLACED ON
C22 C23
C24 C25
C26 C27
C4 8
C52
H18
R7 2
R1 02
R10 9
R11 0
R1 1 1
R1 19
V59
V60
X1
X5
X6
X7
Voltage programming
resistors (R9, R18)
R18 placed on =>400V
R9 placed on =>500V
X1
Location of
Fastening screw
Settings on the Power board according to nominal operation voltage.
