vacon • 32 Active Front End (AFE)
Tel. +358 (0) 201 2121 • Fax +358 (0)201 212 205

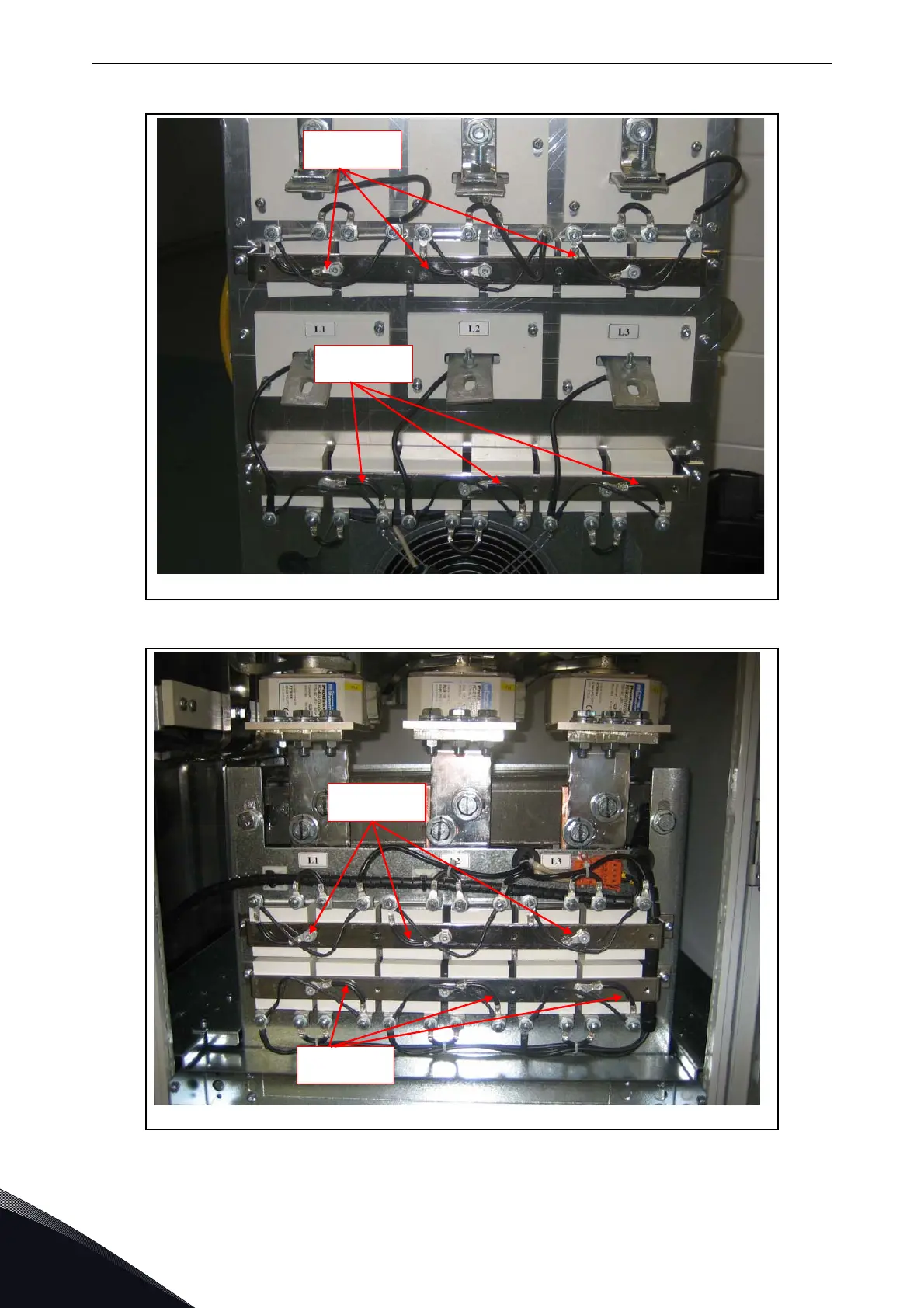

Figure 19. HF capacitors in FI9 and FI10 LCL filter
Figure 20. HF capacitors in FI13 LCL filter
Remove
Remove
11253_A.emf
Remove
Remove
11254_A.emf
