Vacon NX Active Front End User Manual

Control Keypad vacon • 77
24-hour support +358 (0)201 212 575 • Email: vacon@vacon.com
6

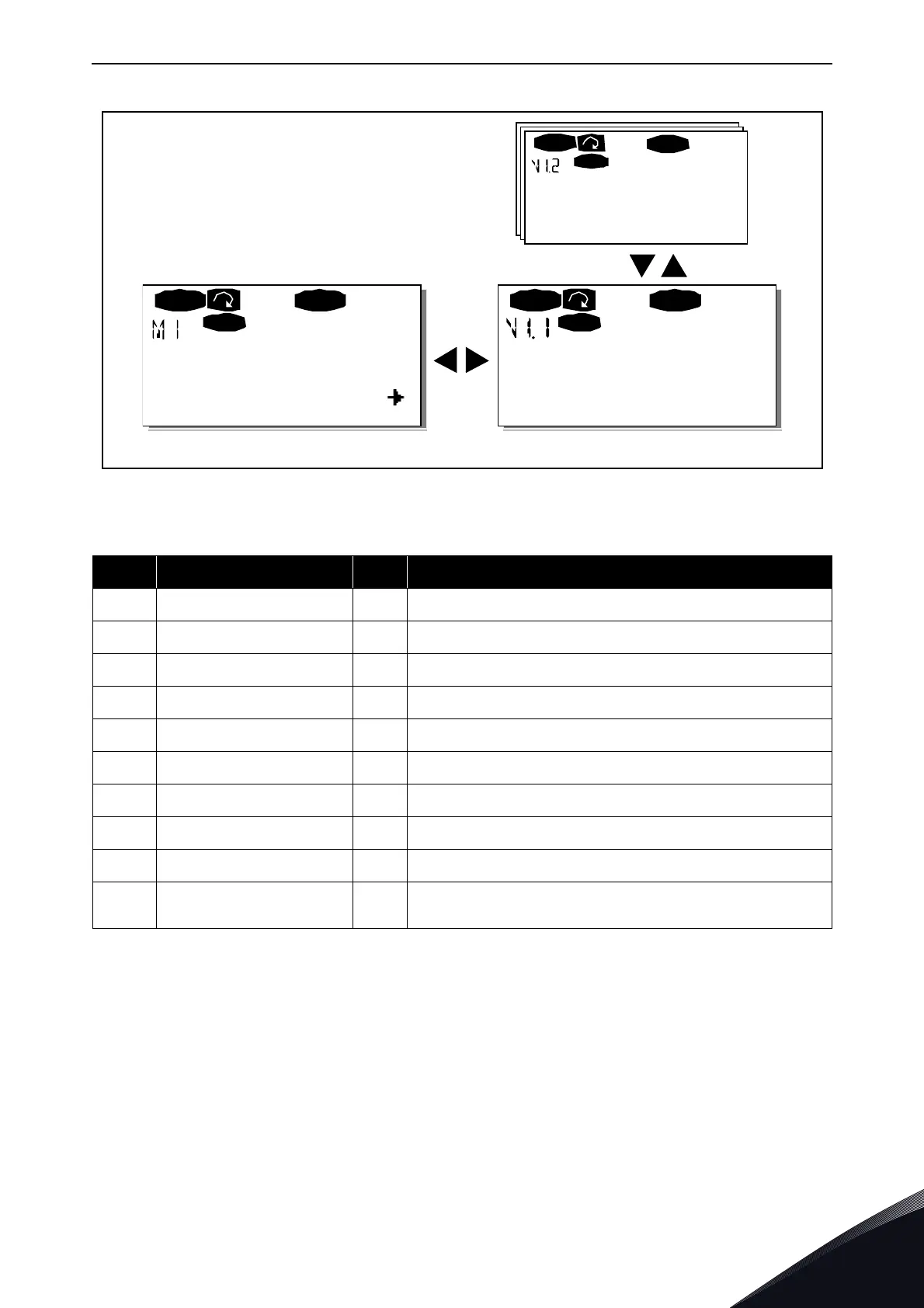

Figure 55. Monitoring menu
6.3.2 Parameter menu (M2)
Parameters are the way of conveying the commands of the user to Vacon
®
NX Active Front End.
Parameter values can be edited by entering the Parameter Menu from the Main Menu when the
location indication M2 is visible on the first line of the display. The value editing procedure is
presented in Figure 56.
Pressing
Menu button right once takes you to the Parameter Group Menu (G#). Locate the desired
parameter group by using the
Browser buttons and press Menu button right again to see the group
and it‘s parameters. Use the
Browser buttons to find the parameter (P#) you want to edit . Pressing
Menu button right takes you to the edit mode. As a sign of this, the parameter value starts to blink.
You can now change the value in two different ways:
Table 25. Monitored signals
Code Signal name Unit Description
V1.1
Frequency reference Hz
V1.2
DC-link voltage V Measured DC-link voltage
V1.3
Unit temperature ºC Heat sink temperature
V1.4
Voltage input V AI1
V1.5
Current input mA AI2
V1.6
DIN1, DIN2, DIN3 Digital input statuses
V1.7
DIN4, DIN5, DIN6 Digital input statuses
V1.8
DO1, RO1, RO2 Digital and relay output statuses
V1.9
Analogue output current mA AO1
M1.17
Multimonitoring items Displays three selectable monitoring values. See
Chapter 6.3.8.4, Multimonitoring items (P6.5.4).
V1

V14
READY
Local
13.95 Hz
READY
Local
13.95 Hz
READY
Lo ca l
RUN RUN
RUN
Monito r Output frequency
FreqReference
11204.emf
