5
vacon • 62 Installation
Tel. +358 (0) 201 2121 • Fax +358 (0)201 212 205

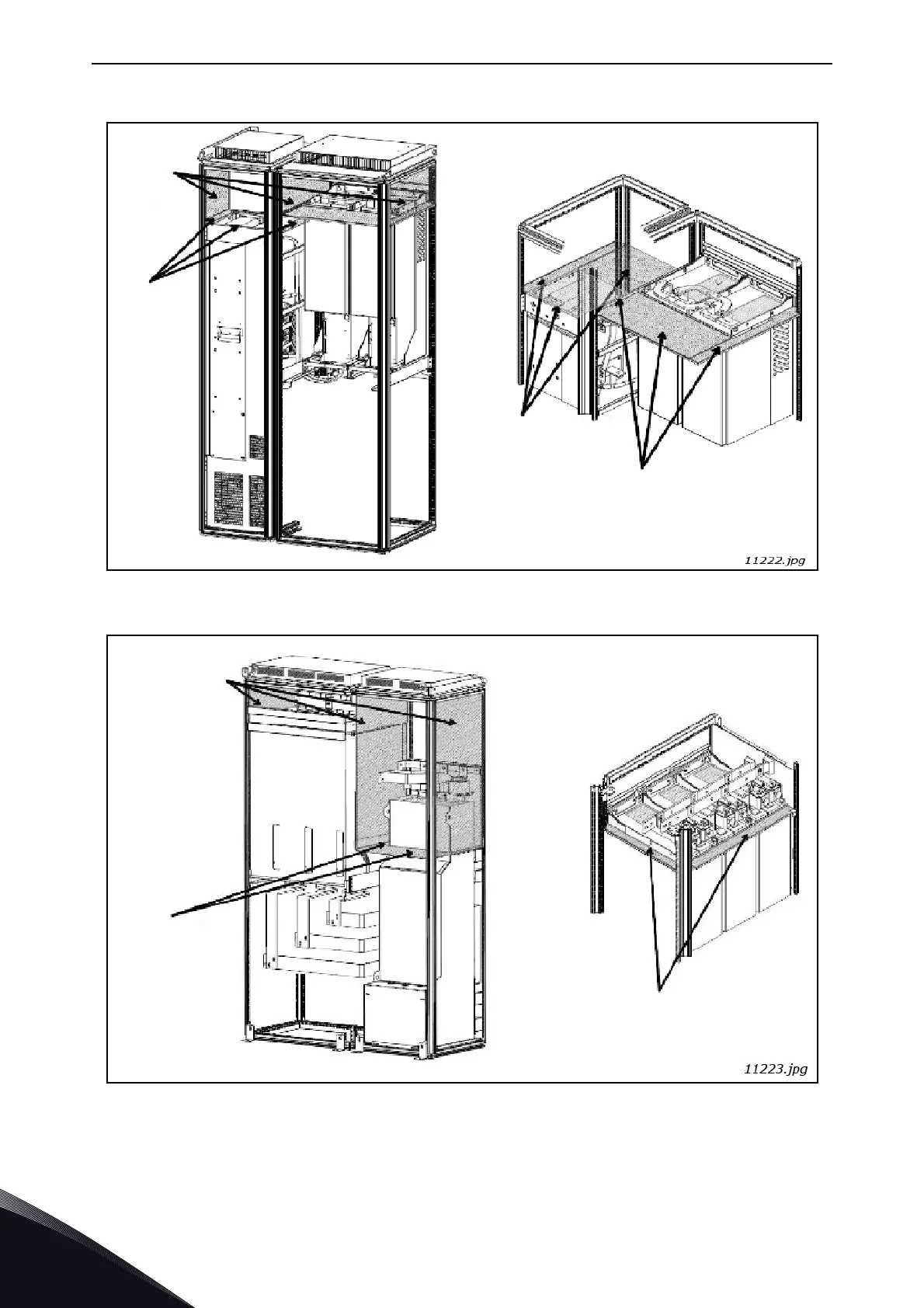

Figure 42. Cabinet cooling airflow guides for FI9 and FI10 AFE unit and LCL filter
Figure 43. Cabinet cooling airflow guides for FI13 AFE unit and LCL filter
The sheet metal airflow guides (deflectors) marked in green prevents air circulation between
different sections of the equipment. The shield guides marked in green prevent air circulation
inside a section. The points marked in red show the exhaust air holes. These holes must not be
covered, nor must anything be placed above them to stop the free exit of warm air from inside the
Sheet
metal
Shield
Shield
Front
Shield
Front
Shield
Shield
Back
Sheet metal
